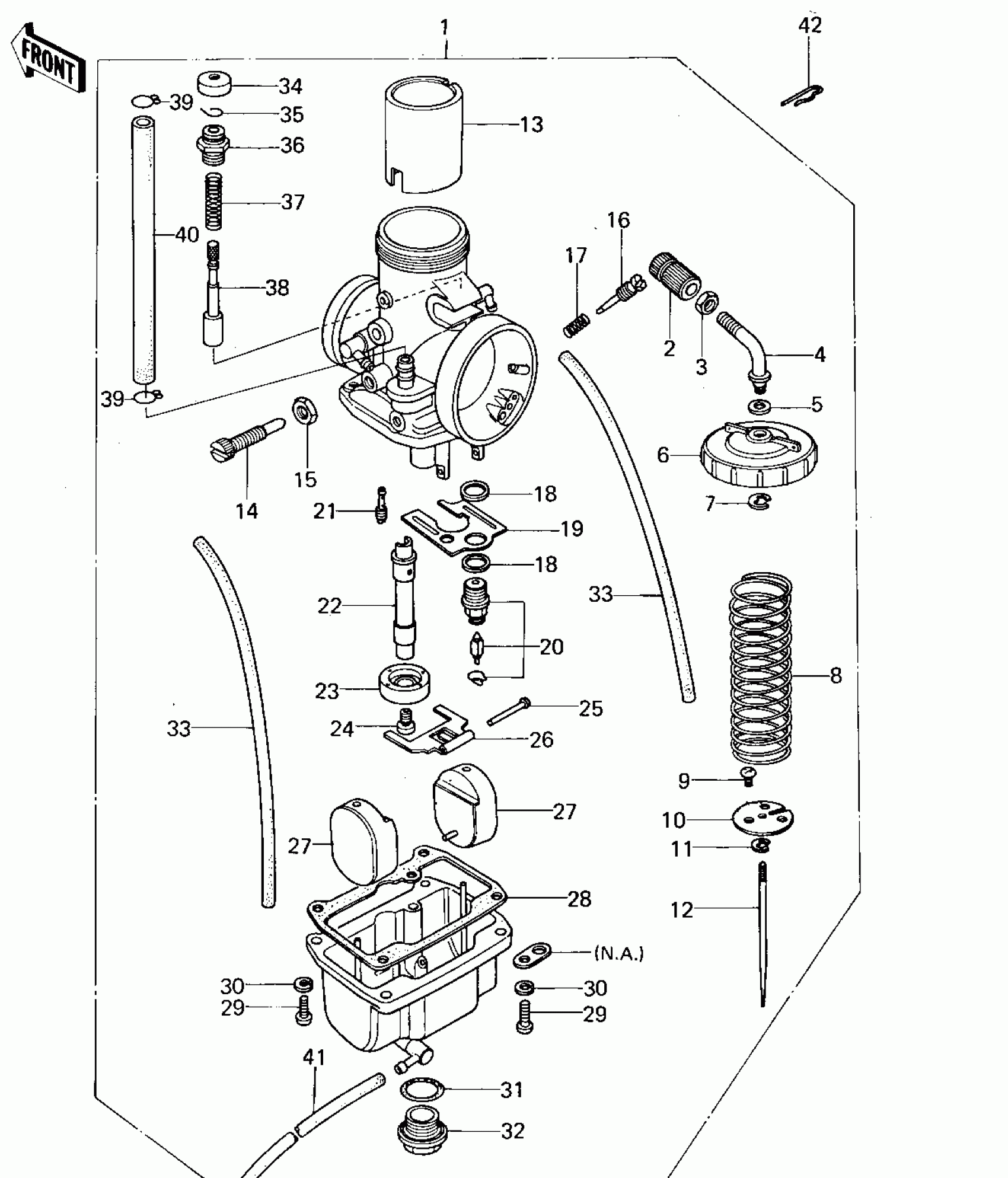

Kawasaki KX125-A5 CARBURETOR ('78-'79 KX125-A4/A5) Diagram
#
1
CARBURETOR ASSY
16001-1044
Unavailable
1
CARBURETOR ASSY
16001-1102
Unavailable
2
ADJUSTER,CABLE
16002-1003
Unavailable
3
NUT,CABLE ADJUST LOCK
16003-004
Unavailable
4
GUIDE,CABLE
13070-1010
Unavailable
5
GASKET,CABLE GUIDE
11009-1074
Unavailable
6
TOP,MIXING CHAMBER
16004-1003
Unavailable
7
CLAMP,CABLE GUIDE
16008-011
Unavailable
8
SPRING-THROTTLE VALV
16006-016
Unavailable
9
SCREW,4X5
92009-1037
Unavailable
10
SEAT,THROTTLE VALVE
16007-1004
Unavailable
10
SEAT,THROTTLE VALVE
16007-1007
Unavailable
11
CLAMP,E-TYPE
16008-010
Unavailable
12
JET NEEDLE,6DH14
16009-1021
Unavailable
12
JET NEEDLE,6H4
16009-1036
Unavailable
13
VALVE,THROTTLE,CA2.0
16025-1019
Unavailable
13
VALVE,THROTTLE,CA3.0
16025-1031
Unavailable
14
SCREW-THROTTLE-ADJ
16021-1005
Unavailable
15
NUT,ADJUST LOCK
16003-006
Unavailable
16
SCREW
16014-006
Unavailable
17
SPRING,PILOT AIR SCREW
16022-007
Unavailable
18
GASKET,FLOAT VALVE
11009-1076
Unavailable
19
PLATE,FLOAT CHAMBER
11009-1080
Unavailable
20
FLOAT VALVE ASSY
16030-020
Unavailable
21
PILOT JET #60A
92064-031
Unavailable
21
JET-PILOT,#25
92064-032
Unavailable
21
PILOT JET #35
92064-009
Unavailable
21
JET-PILOT NO 40
92064-024
Unavailable
21
JET-PILOT NO 45
92064-044
Unavailable
21
PILOT JET,#50
92064-1005
Unavailable
22
NEEDLE JET,Q-2
16017-1026
Unavailable
22
NEEDLE JET,R-0
16017-1039
Unavailable
23
HOLDER,NEEDLE JET
16065-1017
Unavailable
24
JET-MAIN NO 142.5R
92063-117
Unavailable
24
MAIN JET NO 150R
92063-120
Unavailable
24
MAIN JET,#A137.5
92063-1087
Unavailable
24
MAIN JET,#140A
92063-116
Unavailable
24
JET-MAIN NO 145R
92063-118
Unavailable
24
JET-MAIN NO 147.5R
92063-119
Unavailable
24
JET-MAIN NO 152.5R
92063-121
Unavailable
25
PIN,FLOAT
16032-008
Unavailable
26
ARM,FLOAT
16055-004
Unavailable
27
FLOAT
16031-1062
Unavailable
28
GASKET,FLOAT CHAMBER
11009-1079
Unavailable
29
SCREW PAN HEAD 5X16
220B0516A
Unavailable
30
WASHER SPRING 5MM
461F0500
Unavailable
31
GASKET,MAIN JET COVER
16038-009
Unavailable
32
COVER-MAIN JET
16049-006
Unavailable
33
HOSE,3.5OX7.5OX410M/M
92059-1027
Unavailable
34
CAP,STARTER PLUNGER
16036-013
Unavailable
35
CLAMP
92037-1077
Unavailable
36
CAP-STARTER PLUNGER
16012-021
Unavailable
37
SPRING,STARTER PLUNGR
16013-011
Unavailable
38
PLUNGER ASSY,STARTER
16016-013
Unavailable
39
CLAMP,CARB CONECT HOS
92037-056
Unavailable
40
HOSE,FUEL,6.5OX11.5O
92059-1026
Unavailable
40
HOSE,6.5X11.5X240
92059-1084
Unavailable
41
HOSE,OVERFLOW
92059-1025
Unavailable
42
RING-SNAP
92036-018
Unavailable
