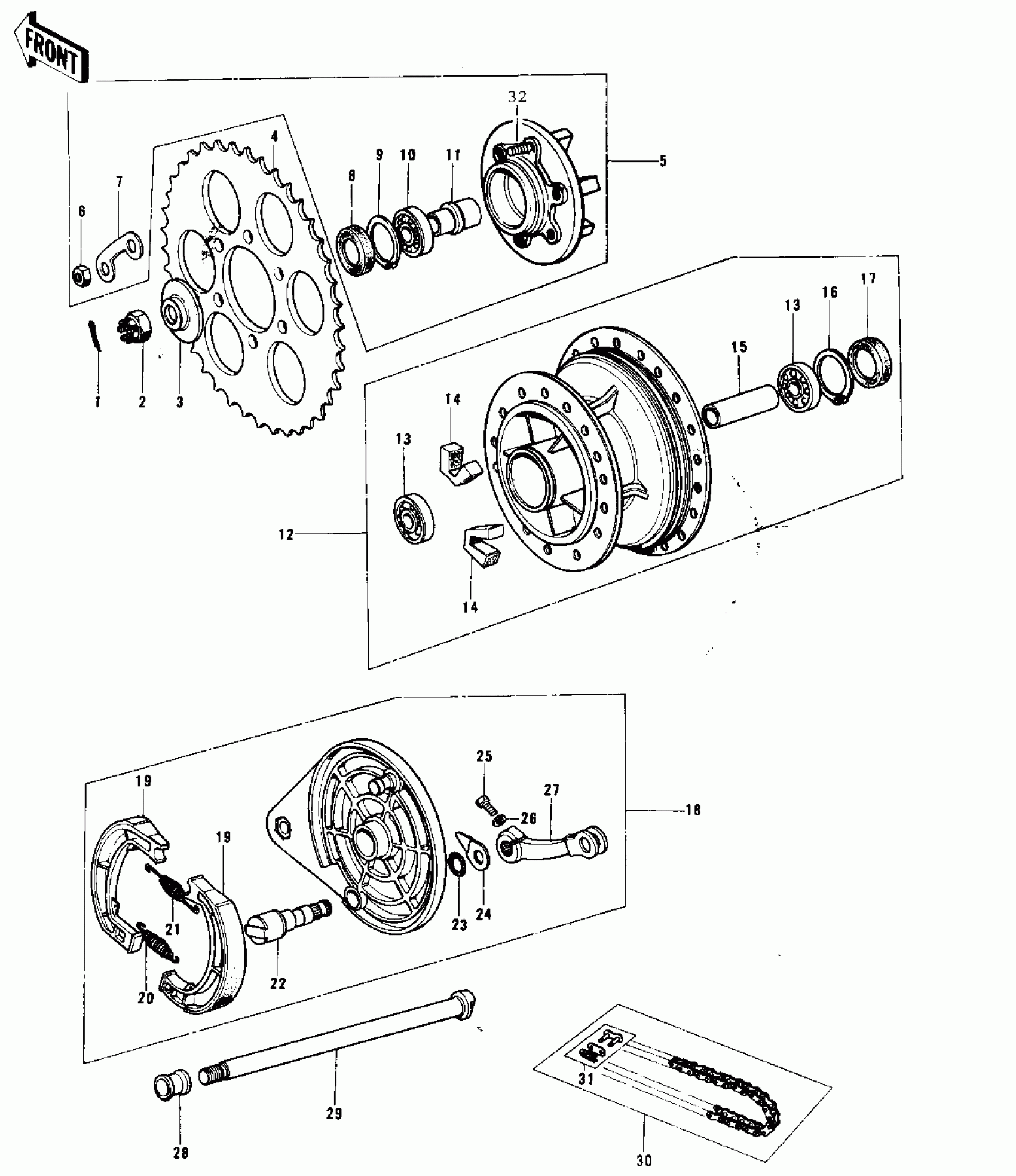

Kawasaki KX125-A3 REAR HUB/BRAKE/CHAIN ('74-'76 KX125/A/A3 Diagram
#
1
PIN-COTTER,4.0X35
550D4035
Unavailable
2
NUT,CASTLE,14MM
92103-006
Unavailable
3
COLLAR,REAR AXLE,L.H
42032-048
Unavailable
4
REAR SPROCKET,60T
42041-141
Unavailable
4
REAR SPROCKET,58T
42041-148
Unavailable
4
REAR SPROCKET,56T
42041-149
Unavailable
5
COUPLING ASY,RR HUB
42008-019-21
Unavailable
6
NUT,8MM
311B0800
Unavailable
7
WASHER,SPROCKET LOCK
92088-019
Unavailable
8
SEAL-OIL,26X42X8
92050-060
Unavailable
9
RING-SNAP,42MM
92033-1041
Unavailable
10
BEARING-BALL,#6004C3
601B6004
Unavailable
11
SLEEVE,RR HUB COUPLNG
42036-018
Unavailable
12
DRUM ASY,RR BK,BLACK
42005-038-21
Unavailable
12
DRUM ASY,RR BK,BLACK
42005-047-21
Unavailable
13
BEARING-BALL,#6202C3
601B6202
Unavailable
14
DAMPER,REAR HUB SHOCK
42014-023
Unavailable
15
SPACER,RR HUB BEARING
42010-029
Unavailable
15
SPACER,RR HUB BEARING
42010-029
Unavailable
16
CIRCLIP-TYPE-C,35MM
481J3500
Unavailable
17
OIL SEAL,22X35X8
654A223508
Unavailable
18
PANEL ASY,RR BK,BLACK
42006-044-21
Unavailable
18
PANEL-ASY,RR BRK
42006-073-21
Unavailable
19
SHOE,BRAKE
42019-010
Unavailable
20
SPRING,BRAKE SHOE
92081-1550
Unavailable
21
SPRING,BRAKE SHOE
92081-1766
Unavailable
22
CAM SHAFT,REAR BRAKE
42026-025
Unavailable
23
RING-O,BRAKE CAM
92055-004
Unavailable
24
INDICATOR,BRAKE SHOE
41085-002
Unavailable
25
BOLT 6X22
112B0622
Unavailable
26
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
27
LEVER,REAR BRAKE CAM
42029-030
Unavailable
28
COLLAR,REAR AXLE,R.H
42032-047
Unavailable
29
AXLE,REAR
42031-046
Unavailable
30
DR CHAIN 428X124
92057-088
Unavailable
31
JOINT-CHAIN
92058-1015
Unavailable
32
STUD,8X17
92004-1015
Unavailable
