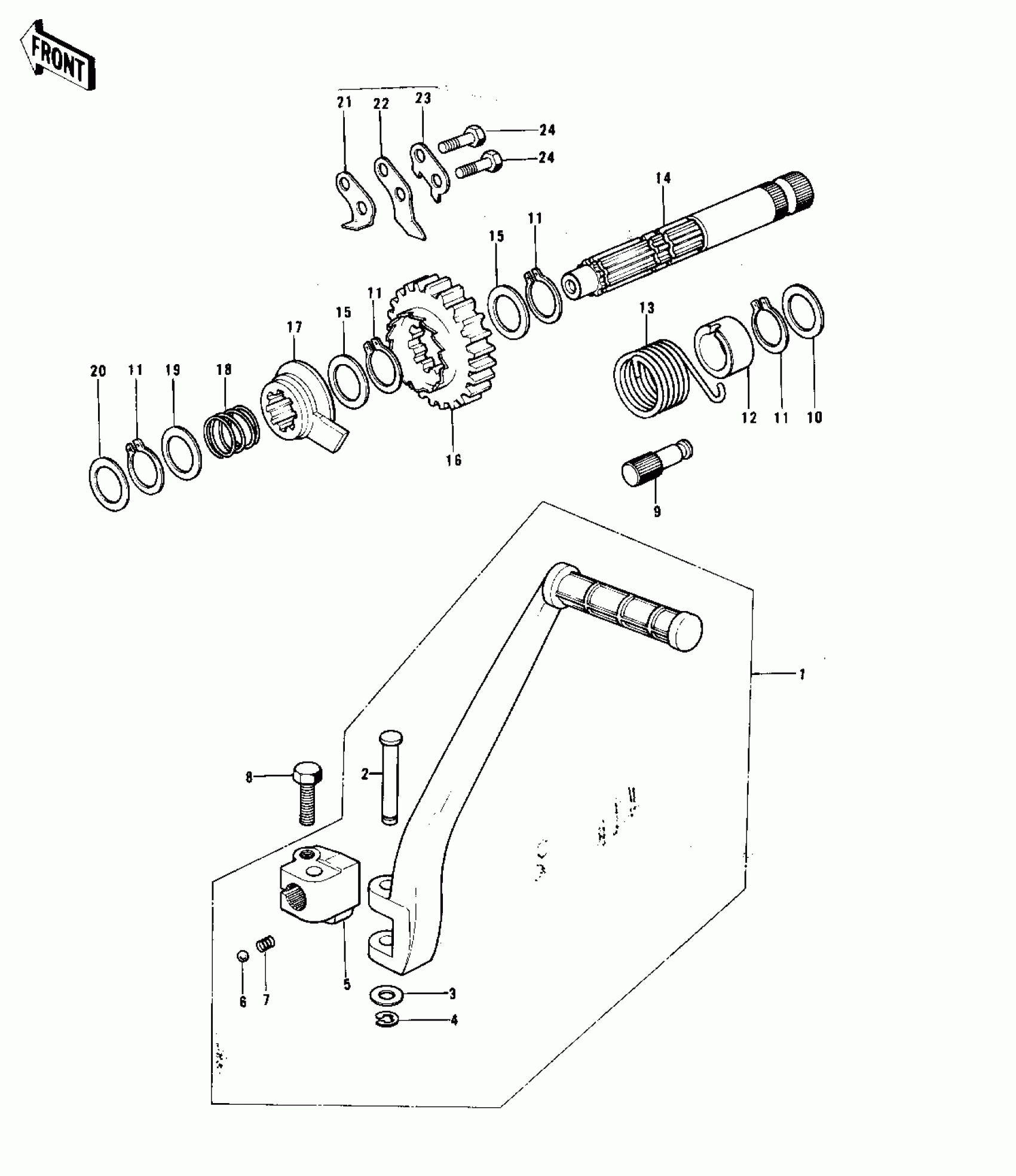

Kawasaki KX125-A3 KICKSTARTER MECHANISM ('74-'76 KX125/A/A Diagram
#
Description
Price
1
PEDAL,KICKSTARTER
13058-055
Unavailable
2
PIN-KICKSTARTER
92043-075
Unavailable
3
WASHER PLAIN 8MM
410B0800
Unavailable
4
CIRCLIP 5MM
482K5000
Unavailable
5
BOSS,KICK PEDAL
13061-022
Unavailable
6
BALL-STEEL,1/4
600A0800
Unavailable
7
SPRING,KICK PEDAL
92081-020
Unavailable
8
BOLT-SMALL-UPSET 8X25
115G0825
Unavailable
9
PIN
92043-102
Unavailable
10
WASHER,PLAIN
92022-268
Unavailable
11
CIRCLIP-TYPE-C,16MM
480J1600
Unavailable
12
GUIDE,KICKSPRING
13070-008
Unavailable
13
SPRING,KICKSTARTER
92082-005
Unavailable
14
SHAFT,KICKSTARTER
13066-040
Unavailable
15
WASHER,16.8X22X0.5
92022-315
Unavailable
16
KICK GEAR&RATCHET ASY
13250-001
Unavailable
16
GEAR,KICKSTARTER
13068-032
Unavailable
17
KICK GEAR&RATCHET ASY
13250-001
Unavailable
17
RATCHET
13078-1052
Unavailable
18
SPRING,RATCHET
92081-122
Unavailable
19
WASHER-THRUST
92022-197
Unavailable
19
WASHER,16.8X22X0.5
92022-315
Unavailable
20
WASHER,12.3X20X0.5
92022-269
Unavailable
21
STOPPER,KICKSTARTER
32085-1061
Unavailable
22
GUIDE,KICKSTARTER
13206-010
Unavailable
23
WASHER,LOCK
92024-054
Unavailable
24
BOLT-UPSET
112G0618
Unavailable
