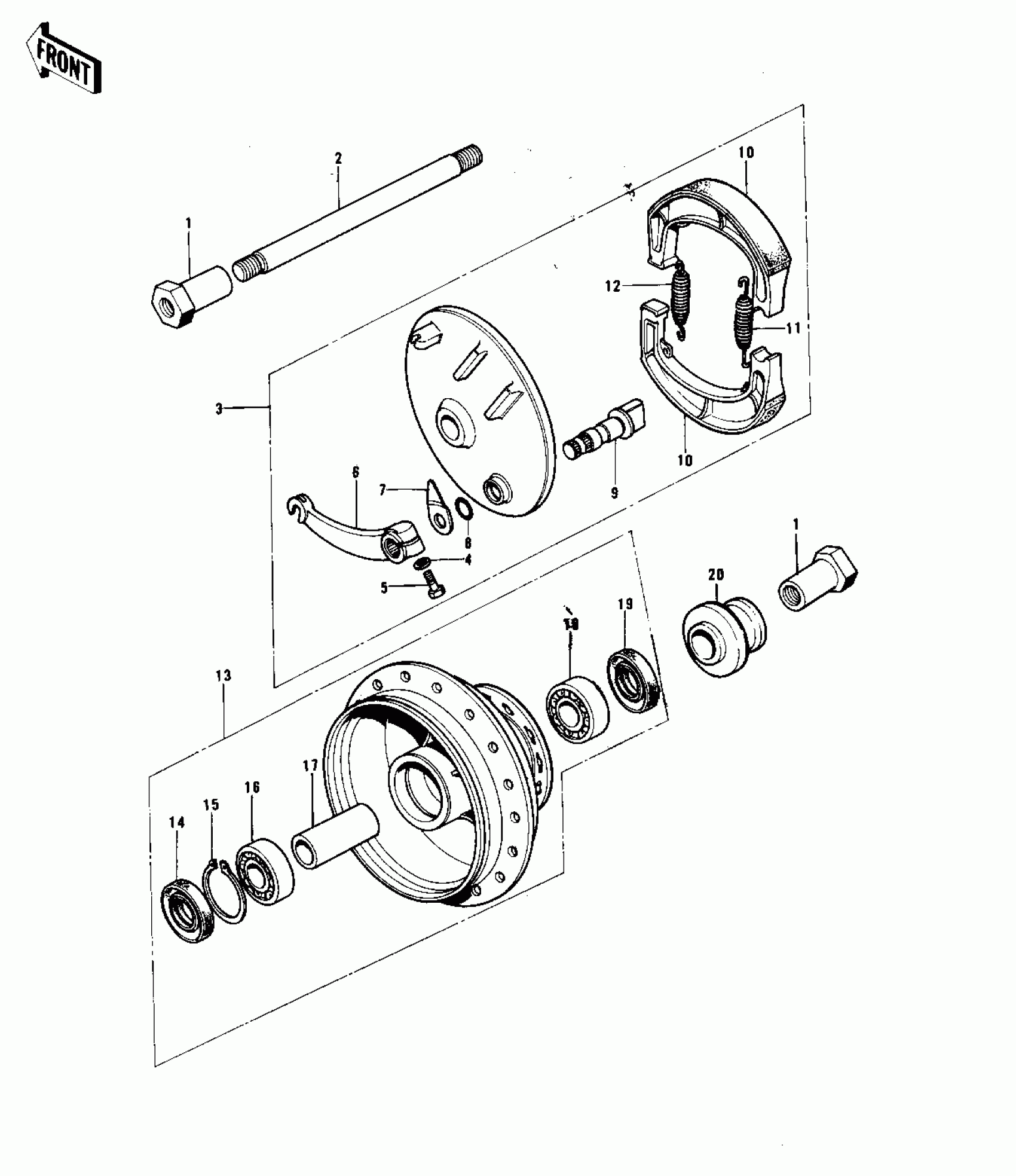

Kawasaki KX125-A3 FRONT HUB/BRAKE ('74-'76 KX125/A/A3) Diagram

#

Description

Price

1

COLLAR,FRONT AXLE

41069-024

Unavailable

2

AXLE,FRONT

41068-043

Unavailable

3

PANEL ASY,FR BK,BLACK

41035-049-21

Unavailable

3

PANEL-ASY,FR BRK

41035-077-21

Unavailable

4

WASHER-PLAIN-SMALL,6MM

410B0600

Unavailable

5

BOLT 6X22

112B0622

Unavailable

6

LEVER,FRNT BRAKE CAM

41053-020

Unavailable

7

INDICATOR,BRAKE SHOE

41085-002

Unavailable

8

RING-O,BRAKE CAM

92055-004

Unavailable

9

CAM SHAFT,FRONT BRAKE

41050-012

Unavailable

10

SHOE,BRAKE

41048-015

Unavailable

11

SPRING,BRAKE SHOE

92081-1766

Unavailable

12

SPRING,BRAKE SHOE

92081-1550

Unavailable

13

DRUM ASY,FR BK,BLACK

41034-031-21

Unavailable

14

OIL SEAL,FR BK DRUM

92050-059

Unavailable

15

CIRCLIP-TYPE-C,37MM

481J3700

Unavailable

16

BEARING BALL #6301

601B6301

Unavailable

17

SPACER,FR HUB BEARING

41039-025

Unavailable

18

BEARING-BALL,#6201C3

601B6201

Unavailable

19

UNAVAILABLE IN PRICE BOOK

654A103208

Unavailable

20

COLLAR,FRONT AXLE

41069-025

Unavailable
