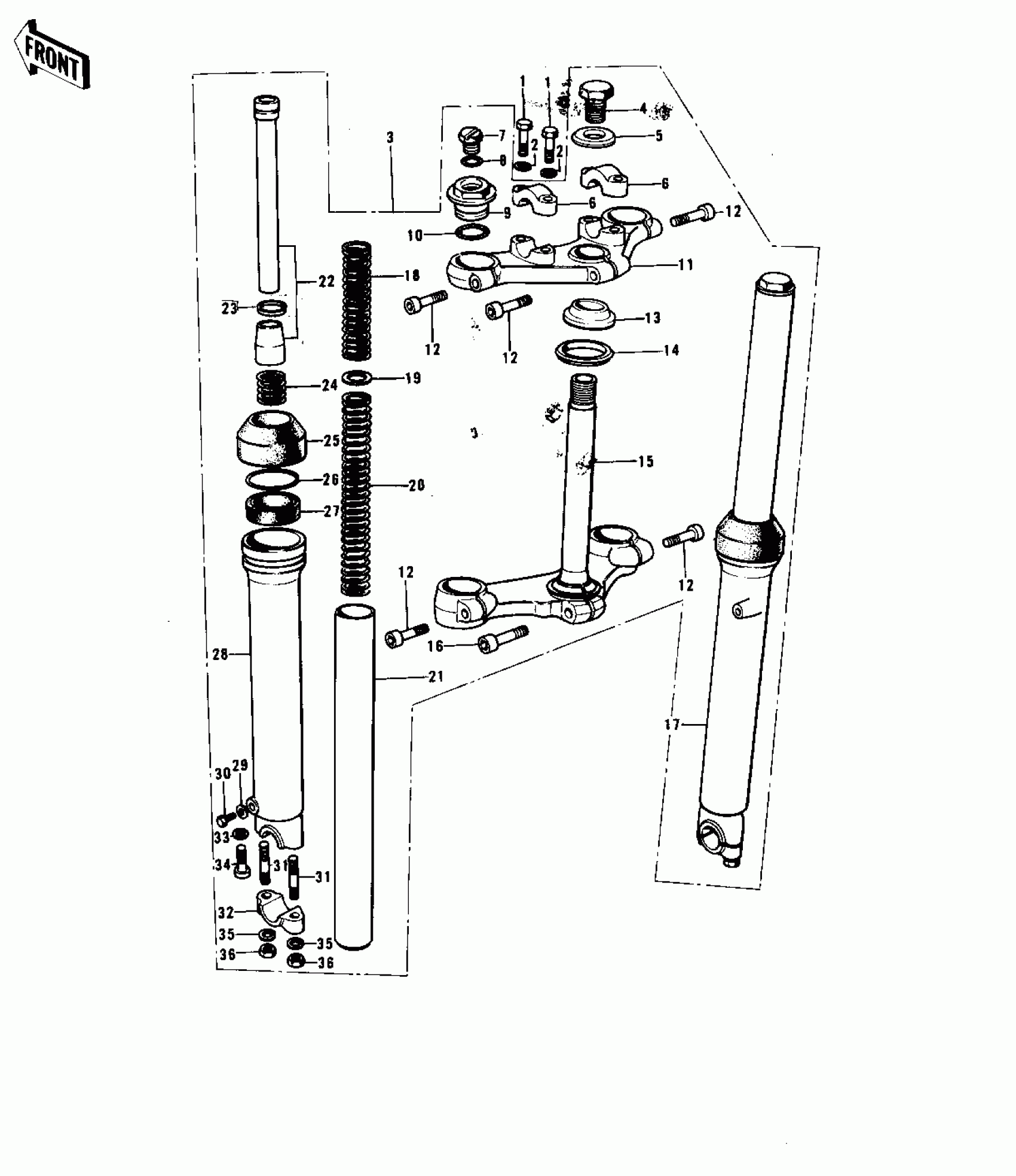

Kawasaki KX125-A3 FRONT FORK Diagram
#
1
BOLT 8X38
92001-1405
Unavailable
2
WASHER SPRING 8MM
461F0800
Unavailable
3
FORK-FRONT
44001-142
Unavailable
4
BOLT,STEERING STEM
44041-077
Unavailable
5
WASHER,STEERING STEM
44043-056
Unavailable
6
HOLDER,HANDLEBAR
46012-012
Unavailable
6
HOLDER,HANDLEBAR
46012-014
Unavailable
7
BOLT,HEX HEAD,12MM
44041-069
Unavailable
8
O RING
44045-048
Unavailable
9
BOLT,FORK TOP
44032-011
Unavailable
10
"O" RING,FORK TOP
44046-021
Unavailable
11
HEAD,STEERING STEM
44039-066
Unavailable
11
HEAD,STEERING STEM
44039-070
Unavailable
12
BOLT,HEX HEAD,8X34
44041-070
Unavailable
13
RACE,STEERING STEM BEARING
92047-010
Unavailable
14
SEAL,STEERING STEM
44010-027
Unavailable
15
STEM,STEERING
44037-083
Unavailable
16
BOLT,SPECIAL 10X42
44041-073
Unavailable
17
TUBE,RH,FORK OUTER
44006-1045
Unavailable
18
SPRING,FORK,SHORT
44026-058
Unavailable
19
SEAT,FORK SPRING
44029-021
Unavailable
20
SPRING,FORK,LONG
44026-057
Unavailable
21
TUBE,FORK INNER
44013-047
Unavailable
22
CYLINDER-FORK
44022-023
Unavailable
23
RING
44025-002
Unavailable
24
SPRING,FORK CYLINDER
44026-054
Unavailable
25
DUST SHIELD,FORK
44010-026
Unavailable
26
RING-SNAP,45MM
44044-020
Unavailable
27
OIL SEAL,FORK
44009-018
Unavailable
28
TUBE,LH,FORK OUTER
44005-1045
Unavailable
29
BOLT-UPSET,6X8
112B0608
Unavailable
30
GASKET,DRAIN PLUG
44045-047
Unavailable
31
STUD,8X35
92004-1009
Unavailable
32
HOLDER,FRONT AXLE
44063-009
Unavailable
33
GASKET,FORK CYLINDER BOLT
44045-051
Unavailable
34
BOLT,FORK CYLINDER
44041-078
Unavailable
35
WASHER SPRING 8MM
461F0800
Unavailable
36
NUT,8MM
312G0800
Unavailable
