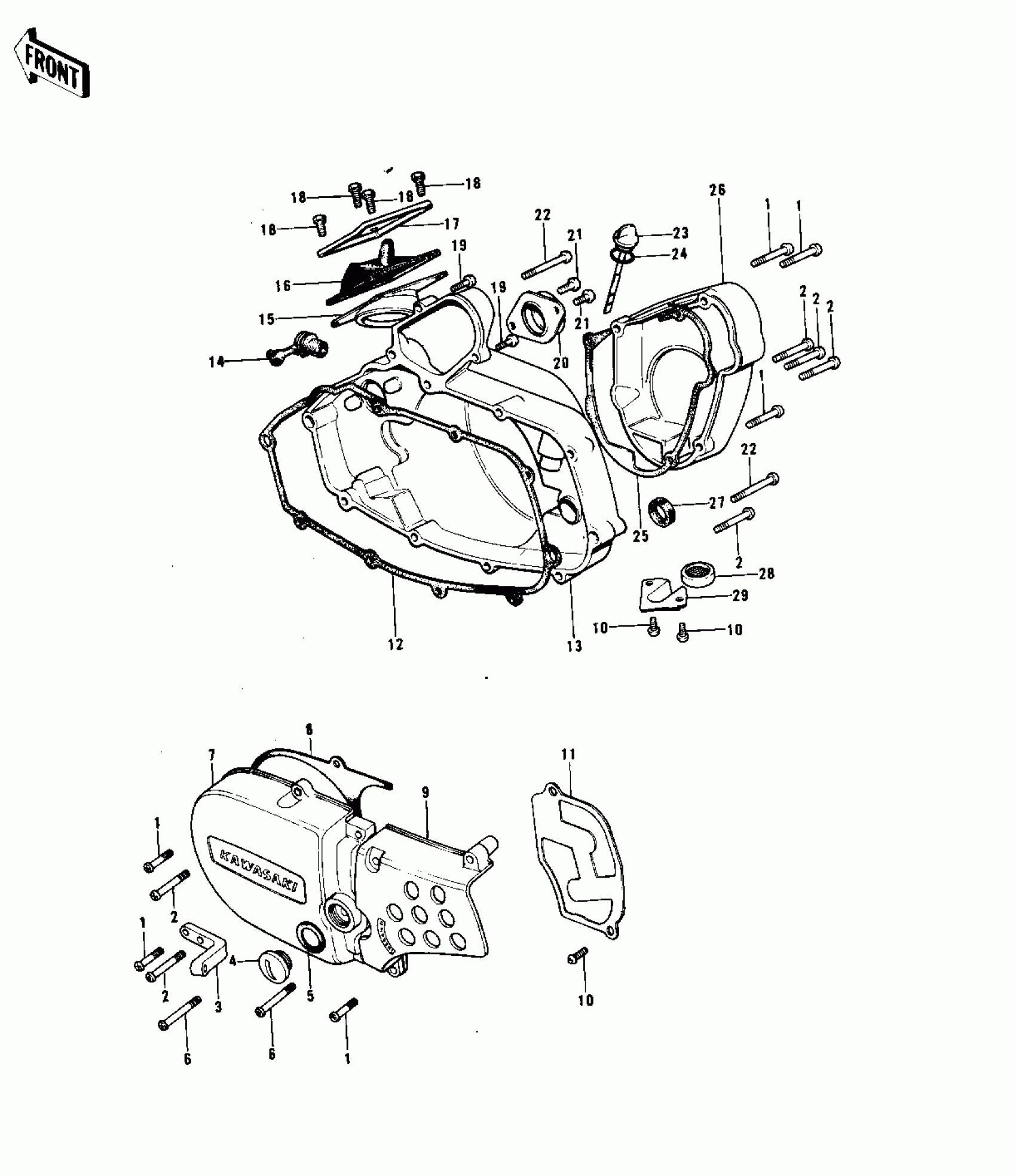

Kawasaki KX125-A3 ENGINE COVERS ('74-'76 KX125/A/A3) Diagram
#
1
SCREW-PAN-CROS,6X20,WHITE
220B0620
Unavailable
1
SCREW-PAN-CROS,6X20,WHITE
220B0620
Unavailable
2
SCREW PAN HEAD 6X30
220B0630
Unavailable
2
SCREW PAN HEAD 6X30
220B0630
Unavailable
3
HOLDER,WIRE GUIDE
14044-012
Unavailable
4
PLUG,L.H ENG COVER
92067-017
Unavailable
5
O RING,16MM
670B2016
Unavailable
6
SCREW PAN HEAD 6X35
220B0635
Unavailable
6
SCREW PAN HEAD 6X35
220B0635
Unavailable
7
COVER,MAGNETO,F.BLACK
14031-1053
Unavailable
8
GASKET,L.H ENG COVER
14045-017
Unavailable
9
COVER,CHN CASE,BLACK
14026-028-21
Unavailable
10
SCREW PAN HEAD 6X12
220B0612
Unavailable
11
COVER,OIL PUMP
14030-060
Unavailable
12
GASKET,R.H ENG COVER
14046-029
Unavailable
13
COVER,R.H ENG,F.BLACK
14032-105-21
Unavailable
13
COVER,R.H ENG,BLACK
14032-116-21
Unavailable
14
GROMMET,R.H ENG COV
92071-076
Unavailable
15
CAP,CARBURETOR
14038-039
Unavailable
16
CAP,CARBURETOR
14038-041
Unavailable
17
HOLDER,CARBRETOR CAP
14065-007
Unavailable
18
SCREW PAN HEAD 6X12
220B0612
Unavailable
18
SCREW-PAN-CROS,6X16
220B0616
Unavailable
19
SCREW PAN HEAD 5X16
220B0516A
Unavailable
20
HOLDER,CARBURETOR
16065-033
Unavailable
21
SCREW PAN HEAD 6X12
220B0612
Unavailable
22
SCREW PAN HEAD 6X45
220B0645
Unavailable
23
PLUG,OI FILLER
16115-024
Unavailable
24
O RING,20MM
670B2020
Unavailable
25
GASKET,CARB COVER
14048-005
Unavailable
25
GASKET,CARBURETOR COV
11009-1277
Unavailable
26
COVER,CARB,F.BLACK
14030-062-21
Unavailable
26
COVER,CARB,BLACK
14030-069-21
Unavailable
27
SEAL-OIL,SB16244
92049-002
Unavailable
28
PLUG,25X12
16116-006
Unavailable
29
COVER,FUEL DRAIN
14076-006
Unavailable
