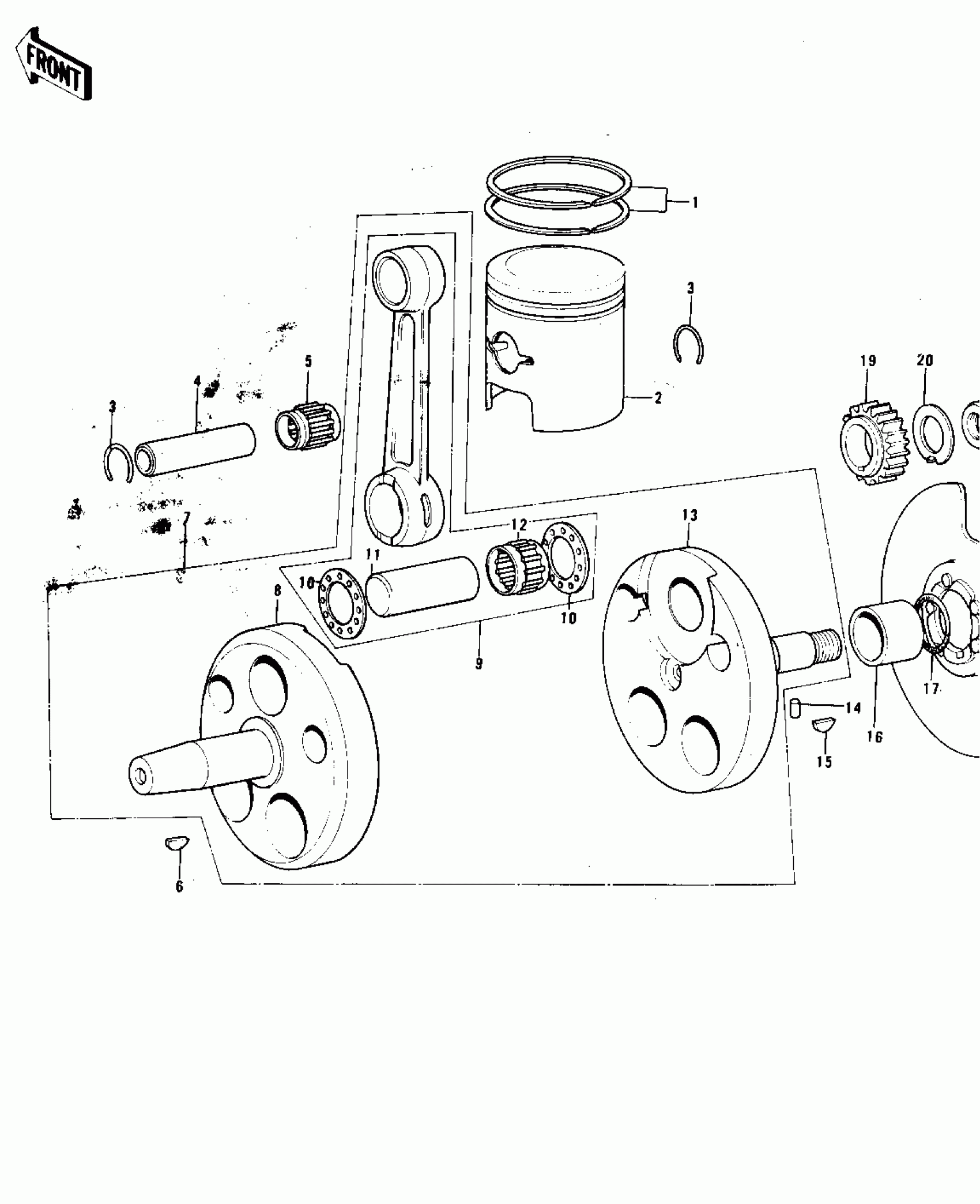

Kawasaki KX125-A3 CRANKSHAFT/PISTON/ROTARY VALVE Diagram

#

Description

Price

1

RING SET,STD

13008-052

Unavailable

2

PISTON,STD

13001-068

Unavailable

3

RING-SNAP,PISTON PIN

92036-003

Unavailable

4

PIN-PISTON

13002-1002

Unavailable

5

BRG,N,UR14/20AP-1

13033-035

Unavailable

6

KEY,WOODRUFF

92038-001

Unavailable

7

CRANKSHAFT ASSY

13036-047

Unavailable

8

CRANKSHAFT,L.H

13037-062

Unavailable

9

CONNECTING ROD SET

13044-036

Unavailable

10

SHIM,20X34.5X1.0

92025-005

Unavailable

11

CRANK PIN

13035-033

Unavailable

12

BRG,N,KT202715EGS01B

13034-041

Unavailable

13

CRANKSHAFT,R.H.

13037-1084

Unavailable

14

ROLLER,4X10

610A0410

Unavailable

15

KEY,WOODRUFF

92038-003

Unavailable

16

COLLAR,R.H CRANKSHAFT

92027-220

Unavailable

17

O RING,16MM

670B2016

Unavailable

18

VALVE,ROTARY DISC

12001-024

Unavailable

19

GEAR,PRIMARY 22T

13097-1040

Unavailable

20

WASHER,CLAW,12.5X25X0.8

92024-003

Unavailable

21

NUT,12MM

92015-006

Unavailable
