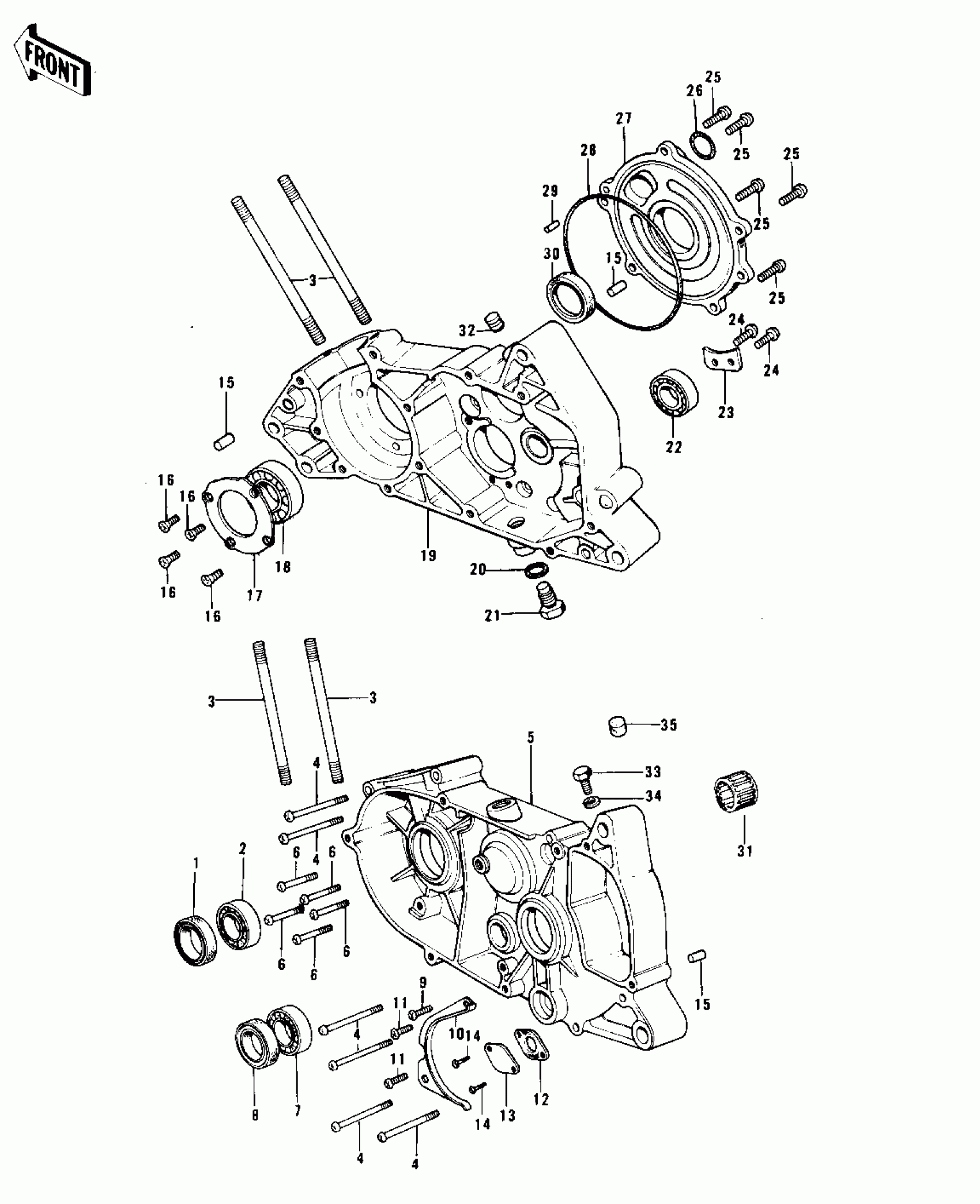

Kawasaki KX125-A3 CRANKCASE ('74-'76 KX125/A/A3) Diagram
#
1
SEAL-OIL
92049-1240
Unavailable
2
BEARING-BALL,#6204C3
601B6204
Unavailable
3
STUD,8X70
172G0870
Unavailable
4
SCREW-PAN-CROS,6X60
220B0660
Unavailable
5
SET-CRANKCASE,F.BLACK
14001-5149
Unavailable
6
SCREW PAN HEAD 6X40
220B0640
Unavailable
7
BEARING-BALL,#6004C3
601B6004
Unavailable
8
SEAL-OIL,SC25376
92050-013
Unavailable
9
SCREW PAN HEAD 6X25
220B0625
Unavailable
10
GUIDE,CHAIN
14077-003
Unavailable
11
SCREW PAN HEAD 6X12
220B0612
Unavailable
12
GASKET,OIL PUMP
11060-1160
Unavailable
13
PLUG-OIL PUMP-HOLE
92084-004
Unavailable
14
SCREW PAN HEAD 5X10
220B0510
Unavailable
15
PIN,DOWEL,10X14
92043-1037
Unavailable
16
SCREW-CSK-CROS,6X16
221B0616
Unavailable
17
PLATE,CRANK BEARING
14014-028
Unavailable
18
BEARING BALL #6304
601B6304
Unavailable
19
CRANKCASE,R.H.,BLACK
14002-1040-21
Unavailable
20
GASKET,12.5X18X1,DRAIN PLUG
92065-073
Unavailable
21
PLUG
92066-1240
Unavailable
22
BEARING-BALL,#6203C3
601B6203
Unavailable
23
PLATE,MISSION BERNG
14014-029
Unavailable
24
SCREW PAN HEAD 6X12
220B0612
Unavailable
25
SCREW-PAN-CROS,6X20,WHITE
220B0620
Unavailable
26
"O" RING,28MM
670B3028
Unavailable
27
COVER,ROTARY DISC VLV
14019-050
Unavailable
28
"O" RING,VALVE COVER
92055-057
Unavailable
29
ROLLER,5X12
610A0512
Unavailable
30
SEAL-OIL
92049-1250
Unavailable
31
BEARING,NEEDLE
92046-043
Unavailable
32
PLUG,15X19
92074-035
Unavailable
33
BOLT SMALL
114G0812
Unavailable
34
WASHER PLAIN 8MM
410B0800
Unavailable
35
DAMPER,13X13.8
92075-075
Unavailable
