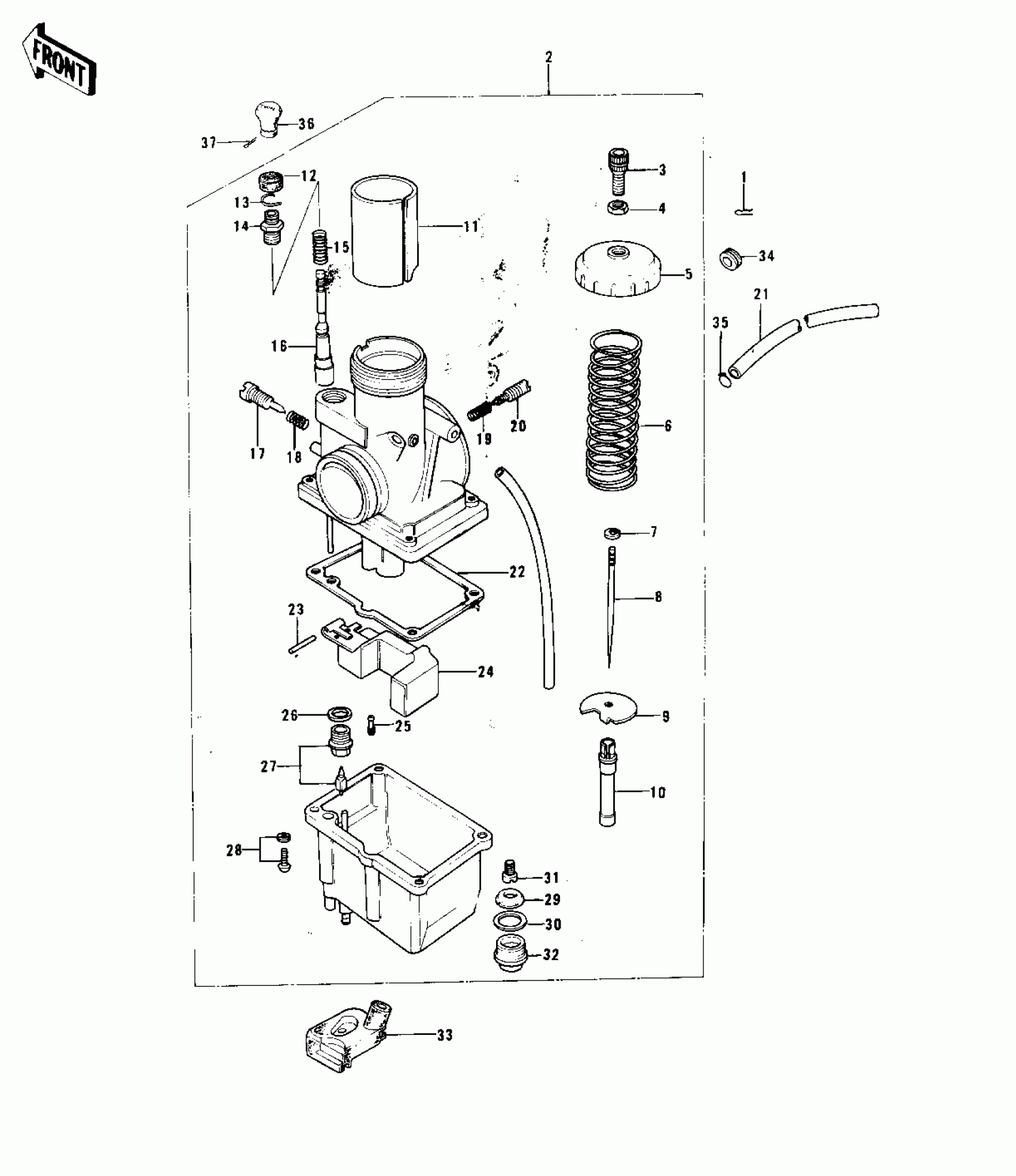

Kawasaki KX125-A3 CARBURETOR ('74-'76 KX125/A/A3) Diagram
#
1
RING-SNAP
92036-018
Unavailable
2
CARBURETOR
16001-208
Unavailable
3
ADJUSTER,CABLE
16002-014
Unavailable
4
NUT,ADJUST LOCK
16003-006
Unavailable
5
CAP-CHAMBER
16004-025
Unavailable
6
SPRING,THROTTLE VALVE
16006-023
Unavailable
7
CLAMP,E-TYPE
16008-010
Unavailable
8
JET NEEDLE 4EJ3
16009-040
Unavailable
9
SPRING SEAT,THRTL VLV
16007-025
Unavailable
10
NEEDLE JET,0-2
16017-082
Unavailable
11
VALVE,THROTTLE
16025-079
Unavailable
12
BOOT,STARTER PLUNGER
16036-012
Unavailable
13
CLAMP
92037-1077
Unavailable
14
CAP-STARTER PLUNGER
16012-021
Unavailable
15
SPRING,STARTER PLUNGER
16013-010
Unavailable
16
PLUNGER,STARTER
16016-014
Unavailable
17
SCREW,THROTTLE STOP
16021-023
Unavailable
18
SPRING,THROTTLE STOP SCREW
16022-005
Unavailable
19
SPRING,PILOT AIR SCREW
16022-007
Unavailable
20
SCREW-PILOT AIR
16014-002
Unavailable
21
PIPE,FUEL
92059-109
Unavailable
22
GASKET,FLOAT CHAMBER
16019-023
Unavailable
23
FLOAT PIN
16032-006
Unavailable
24
FLOAT
16031-026
Unavailable
25
JET-PILOT NO 35
92064-023
Unavailable
26
WASHER FLOAT VLV SEAT
16029-004
Unavailable
27
VALVE-FLOAT,2.5
16030-005
Unavailable
28
SCREW-PAN-WS-CROS
223B0414
Unavailable
29
RING,MAIN JET
16008-012
Unavailable
30
GASKET,MAIN JET COVER
16034-008
Unavailable
31
JET-MAIN NO 107.5R
92063-073
Unavailable
31
MAIN JET,#A102.5
92063-1028
Unavailable
31
MAIN JET,#A105R
92063-1042
Unavailable
31
MAIN JET,#110R
92063-1038
Unavailable
31
JET-MAIN NO 112.5R
92063-075
Unavailable
32
BOLT,BANJO
92001-146
Unavailable
33
GROMMET,OVERFLOW PIPE
16136-010
Unavailable
34
GROMMET,FUEL PIPE
92071-083
Unavailable
34
GROMMET,FUEL PIPE
92071-090
Unavailable
35
CLAMP,TUBE
92037-010
Unavailable
36
KNOB,CARBURETOR
92077-022
Unavailable
37
PIN-COTTER,1.6X15
550D1615
Unavailable
