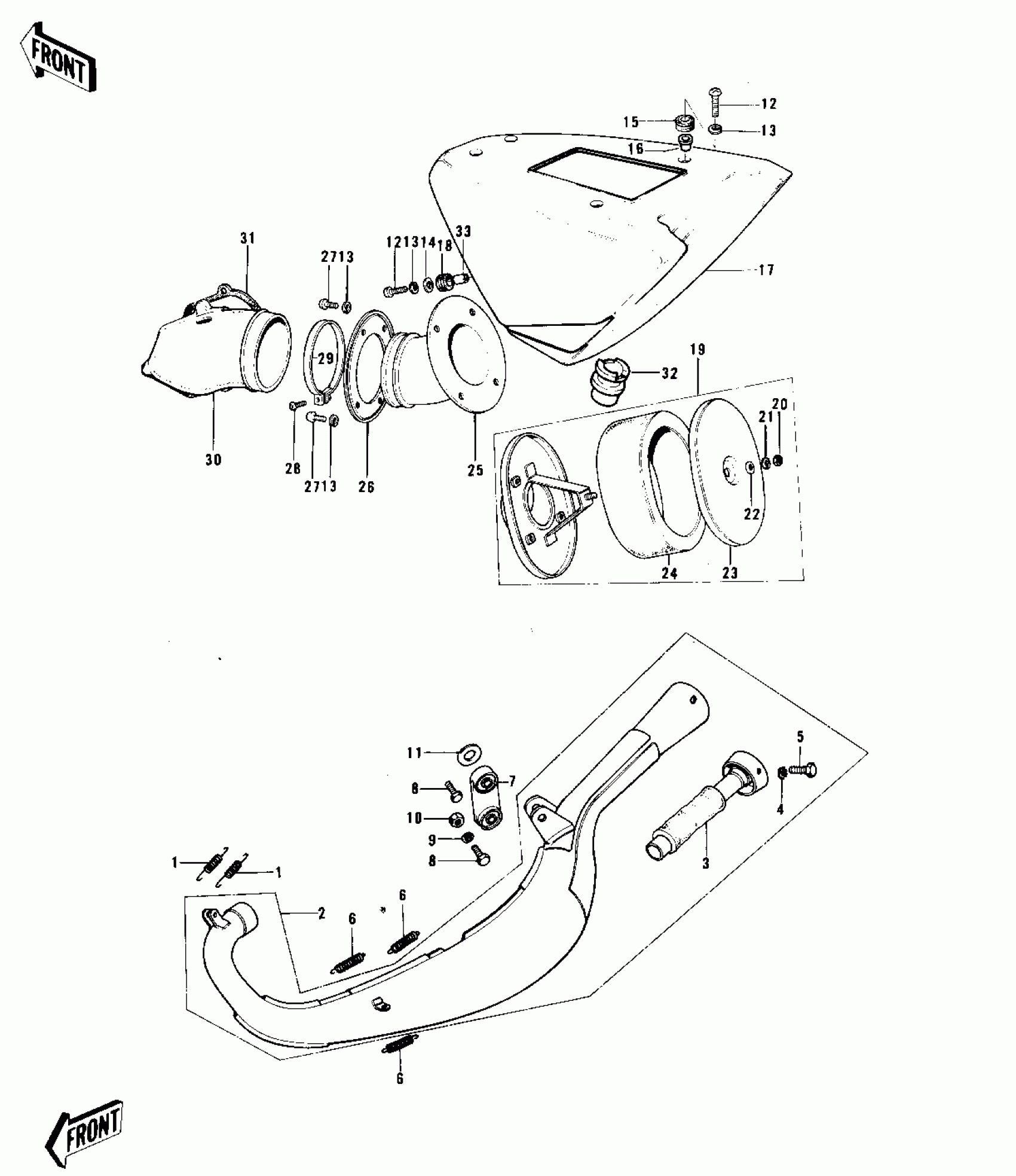

Kawasaki KX125-A3 AIR CLEANER/MUFFLER Diagram
#
Description
Price
1
SPRING-CONNECTOR
18071-003
Unavailable
2
MUFFLER ASSY
18002-117
Unavailable
3
BAFFLE TUBE
18033-082
Unavailable
4
WASHER LOCK 6MM
464H0600
Unavailable
5
BOLT-UPSET,6X12
112G0612
Unavailable
6
SPRING,MUFFLER
18071-006
Unavailable
7
BRACKET,MUFFLER
18024-022
Unavailable
8
BOLT HEX HEAD 8X35
110N0835
Unavailable
9
WASHER SPRING 8MM
461F0800
Unavailable
10
NUT,8MM
92019-018
Unavailable
11
WASHER PLAIN 12MM
411B1200
Unavailable
12
SCREW-PAN-CROS,6X20,WHITE
220B0620
Unavailable
13
WASHER SPRING 6MM
461F0600
Unavailable
14
WASHER PLAIN
92022-024
Unavailable
15
DAMPER RUBBER
92075-076
Unavailable
16
COLLAR
92027-194
Unavailable
17
BODY,AIR CLEANER
11011-037
Unavailable
18
DAMPER RUBBER
92075-107
Unavailable
19
AIR CLEANER ASSY
11010-075
Unavailable
20
NUT,6MM
92019-019
Unavailable
21
WASHER SPRING 6MM
461F0600
Unavailable
22
WASHER PLAIN 6MM
411B0600
Unavailable
23
CAP,AIR CLEANER
11012-035
Unavailable
24
ELEMENT,AIR,CLNR
11013-041
Unavailable
25
CONNECTOR
11026-011
Unavailable
26
SCAP,CONNECTOR
11012-044
Unavailable
27
SCREW-PAN-CROS,6X16
220B0616
Unavailable
28
SCREW-PAN-CROS
220B0535
Unavailable
28
SCREW PAN HEAD 5X40
220B0540A
Unavailable
29
CLAMP
92037-106
Unavailable
30
INLET PIPE
11015-044
Unavailable
31
GASKET,INLET PIPE
11017-012
Unavailable
32
PLUG,AIR CLEANER BODY
92067-019
Unavailable
33
COLLAR,6.8X10X8.5
92027-129
Unavailable
