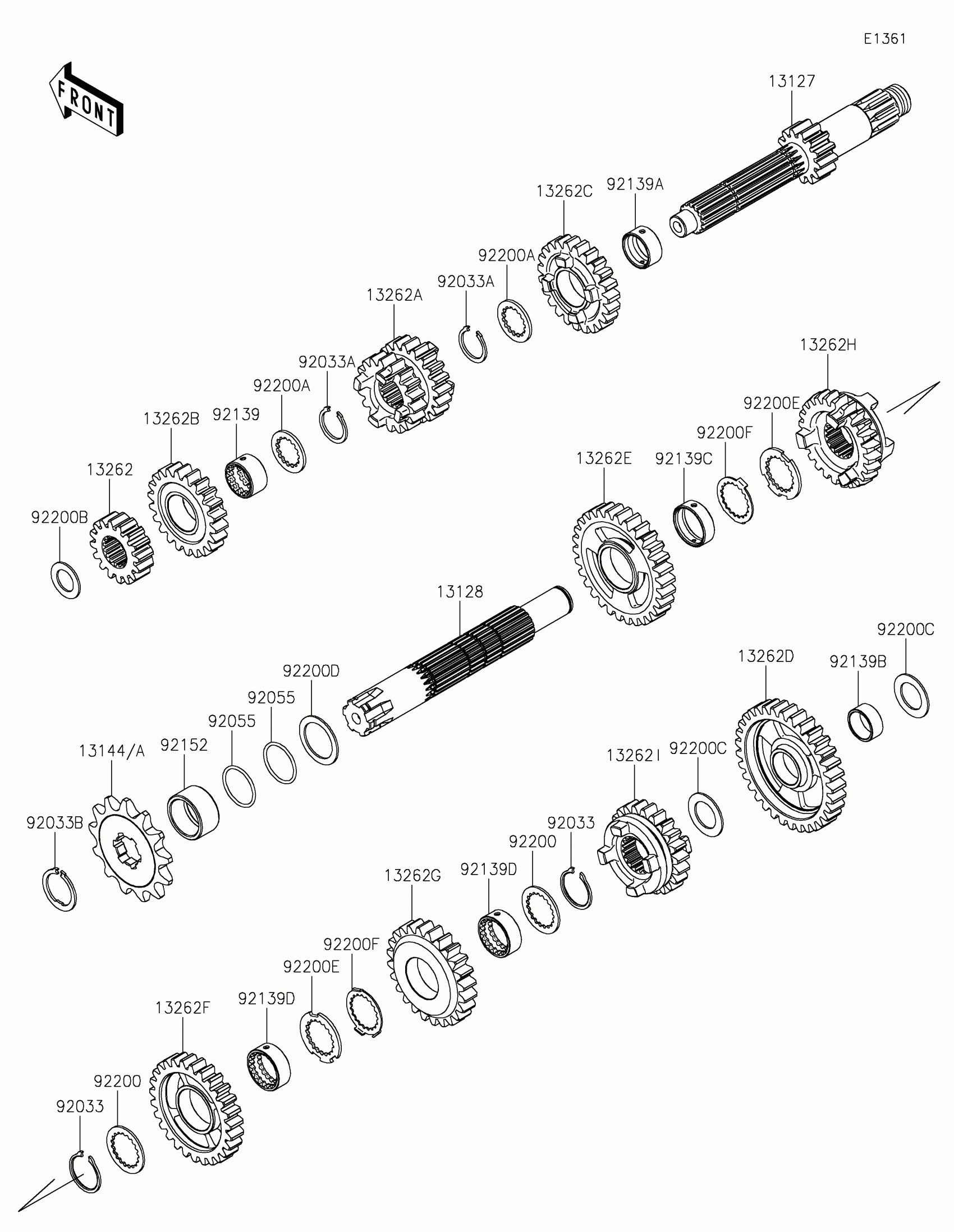

Kawasaki KX112 Transmission Diagram

#

Description
Price

13127

SHAFT-TRANSMISSION INPUT,13T

13127-0715

$243.09

13128

SHAFT-TRANSMISSION OUTPUT

13128-0723

$200.04

13144

SPROCKET-OUTPUT,13T

13144-0564

$22.46

13144A

SPROCKET-OUTPUT,14T

13144-1022

$22.51

13262

GEAR,INPUT 2ND,16T

13262-1581

$114.24

13262A

GEAR,INPUT 3RD&4TH,18&20T

13262-1582

$171.43

13262B

GEAR,INPUT 5TH,22T

13262-1583

$122.67

13262C

GEAR,INPUT 6TH,23T

13262-1584

$120.62

13262D

GEAR,OUTPUT LOW,33T

13262-1585

$136.47

13262E

GEAR,OUTPUT 2ND,30T

13262-1586

$132.69

13262F

GEAR,OUTPUT 3RD,27T

13262-1587

$129.27

13262G

GEAR,OUTPUT 4TH,25T

13262-1588

$125.15

13262H

GEAR,OUTPUT 5TH,24T

13262-1589

$134.65

13262I

GEAR,OUTPUT 6TH,22T

13262-1590

$134.24

92033

RING-SNAP

92033-0798

$3.10

92033A

RING-SNAP

92033-0850

$23.80

92033B

RING-SNAP,18MM

92033-1079

$3.25

92055

RING-O,17.5X1.5

92055-022

$4.67

92139

BUSHING,INPUT 5TH

92139-1145

$89.90

92139A

BUSHING,INPUT 6TH

92139-1146

$78.51

92139B

BUSHING,OUTPUT LOW

92139-1147

$14.09

92139C

BUSHING,OUTPUT 2ND

92139-1148

$17.47

92139D

BUSHING,OUTPUT 3RD/4TH

92139-1149

$57.41

92152

COLLAR,20X25X12.9

92152-0195

$12.92

92200

WASHER,20X26X1.2

92200-2224

$5.81

92200A

WASHER,17.3X23X1.6

92200-2498

$22.56

92200B

WASHER,12.2X20X1

92200-2499

$21.59

92200C

WASHER,15.1X24X1

92200-2500

$11.44

92200D

WASHER,20.2X27X1

92200-2501

$22.71

92200E

WASHER,THRUST

92200-2502

$12.42

92200F

WASHER,LOCK

92200-2503

$13.39
