2025 Kawasaki KX112 Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 2025 Kawasaki KX112, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

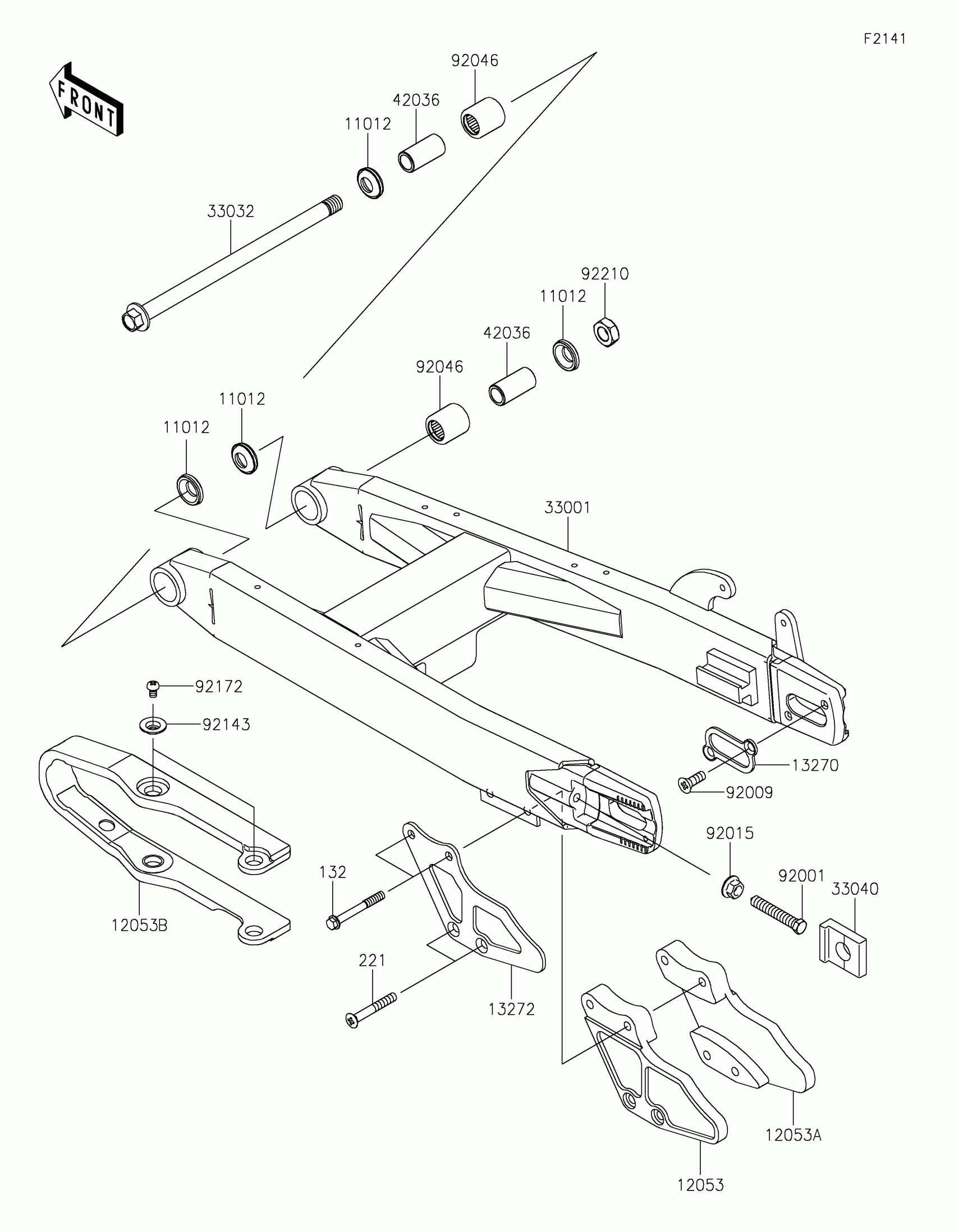

2025 Kawasaki KX112 Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1263

1

$13.08

In stock

12053

GUIDE-CHAIN,RR,LH

12053-0209

1

$83.43

In stock

12053A

GUIDE-CHAIN,RR,RH

12053-0210

1

$83.43

In stock

12053B

GUIDE-CHAIN,FR

12053-1414

1

$52.13

In stock

13270

PLATE

13270-1899

1
Out of stock

13272

PLATE,GUIDE CHAIN

13272-1446

1

$22.45

In stock

33001

ARM-COMP-SWING

33001-0611

1

$680.76

In stock

33032

SHAFT-SWING ARM

33032-1161

1

$32.80

In stock

33040

ADJUSTER-CHAIN

33040-0039

1

$11.56

In stock

42036

1

$10.25

In stock

92001

BOLT,8X46

92001-1179

1

$14.80

In stock

92009

SCREW,5X10

92009-1828

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92046

BEARING-NEEDLE

92046-1046

1

$24.62

In stock

92143

COLLAR

92143-1676

1

$4.93

In stock

92172

SCREW,5X8

92172-0119

1

$1.78

In stock

92210

NUT,LOCK,12MM

92210-1249

1
Out of stock

132

1

$2.93

In stock

221

1

$3.28

In stock
