2025 Kawasaki KX112 Rear Suspension Diagram

← All diagrams

Find the part on the Rear Suspension diagram for your 2025 Kawasaki KX112, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

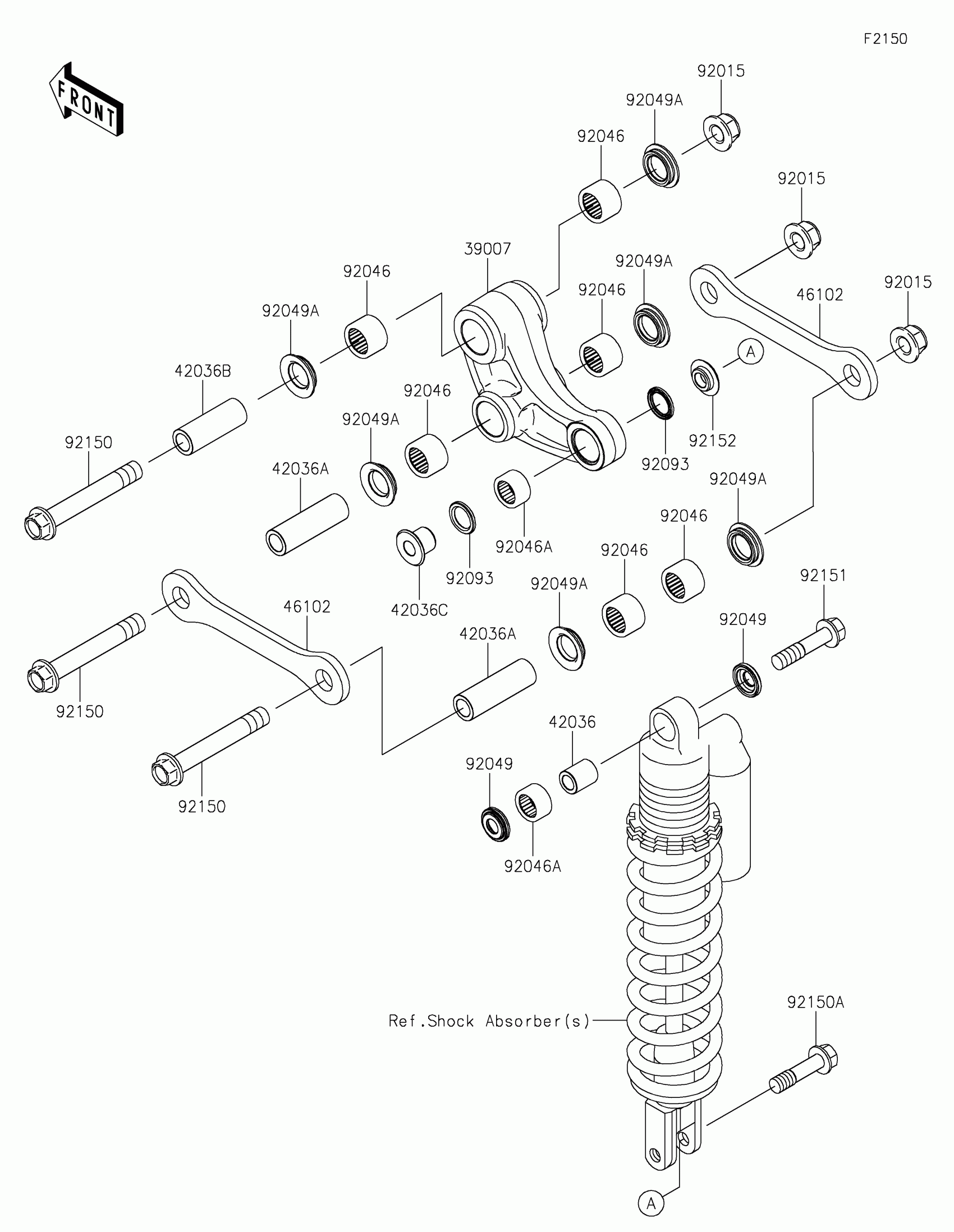

2025 Kawasaki KX112 Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP,UNI TRAK

39007-1262

1

$164.67

In stock

42036

SLEEVE,10X16X19.3

42036-0030

1

$9.45

In stock

42036A

SLEEVE,12X18X57

42036-1273

1

$16.78

In stock

42036B

SLEEVE,12X18X49

42036-1274

1

$14.36

In stock

42036C

SLEEVE

42036-1351

1

$8.94

In stock

46102

ROD,SUSPENSION

46102-1291

1

$20.66

In stock

92015

1

$7.04

In stock

92046

BEARING-NEEDLE,18BM2416

92046-1144

1
Out of stock

92046A

BEARING-NEEDLE,16BM2212

92046-1192

1
Out of stock

92049

SEAL-OIL

92049-0069

1
Out of stock

92049A

SEAL-OIL

92049-1328

1
Out of stock

92093

SEAL

92093-1436

1

$5.77

In stock

92150

BOLT,FLANGED,12X83

92150-1412

1

$9.78

In stock

92150A

BOLT,FLANGED,10X40

92150-1711

1

$9.78

In stock

92151

BOLT,FLANGED,10X45

92151-1413

1

$3.56

In stock

92152

COLLAR

92152-1139

1

$7.04

In stock
