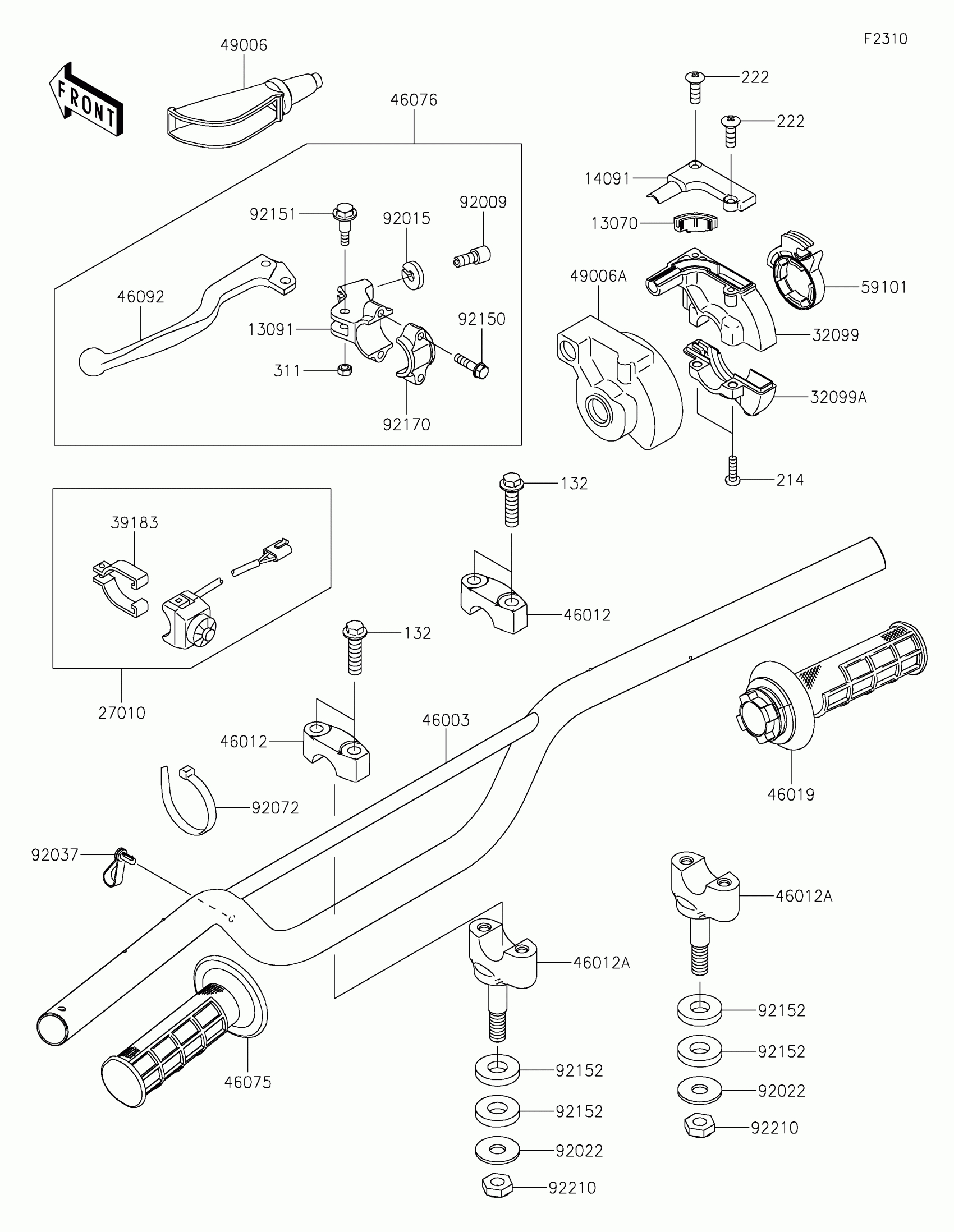

Kawasaki KX112 Handlebar Diagram
#
Description
Price
13070
GUIDE,THROTTLE
13070-0083
$7.69
13091
HOLDER,CLUTCH LEVER
13091-1728
$51.24
14091
COVER,THROTTLE CASE,UPP
14091-0873
$8.28
27010
SWITCH,ENGINE STOP
27010-0047
$54.67
32099
CASE,THROTTLE,UPP
32099-0037
$22.01
32099A
CASE,THROTTLE,LWR
32099-0038
$18.57
39183
BAND-ASSY,SWITCH
39183-1059
$13.02
46003
HANDLE,F.S.BLACK
46003-0205-18R
$84.24
46012
HOLDER-HANDLE,UPP,F.BLACK
46012-0011-21
$29.01
46012A
HOLDER-HANDLE,LWR,F.BLACK
46012-0342-21
$42.27
46019
GRIP-ASSY,THROTTLE
46019-0023
$29.91
46075
GRIP,LH
46075-0072
$14.62
46076
LEVER-ASSY-GRIP,CLUTCH
46076-1203
$40.25
46092
LEVER-GRIP,CLUTCH
46092-1165
$15.95
49006
BOOT,LEVER HOLDER
49006-1017
$18.72
49006A
BOOT,THROTTLE CASE
49006-1097
$17.98
59101
REEL,THROTTLE
59101-0003
$13.06
92009
SCREW,CABLE ADJUST,8MM
92009-1476
$18.89
92015
NUT,CABLE ADJUST LOCK,8MM
92015-1596
$8.86
92022
WASHER,10.2X28X2
92022-1088
$4.69
92037
CLAMP,SPEED,L=58
92037-1163
$6.57
92072
BAND,L=100
92072-0055
$3.90
92150
BOLT
92150-1474
$5.00
92151
BOLT,LEVER SET,5MM
92151-1103
$6.57
92152
COLLAR,12.5X28X5
92152-1716
$7.60
92170
CLAMP,LEVER HOLDER
92170-1226
$27.29
92210
NUT,LOCK,10MM
92210-1184
$6.11
132
BOLT-FLANGED-SMALL,8X35
132BA0835
$4.76
214
SCREW-PAN+-,5X18
214AB0518
$2.61
222
SCREW-CSK-RD-CROS,4X12
222AB0412
$2.65
311
NUT-HEX
311AA0500
$0.47
