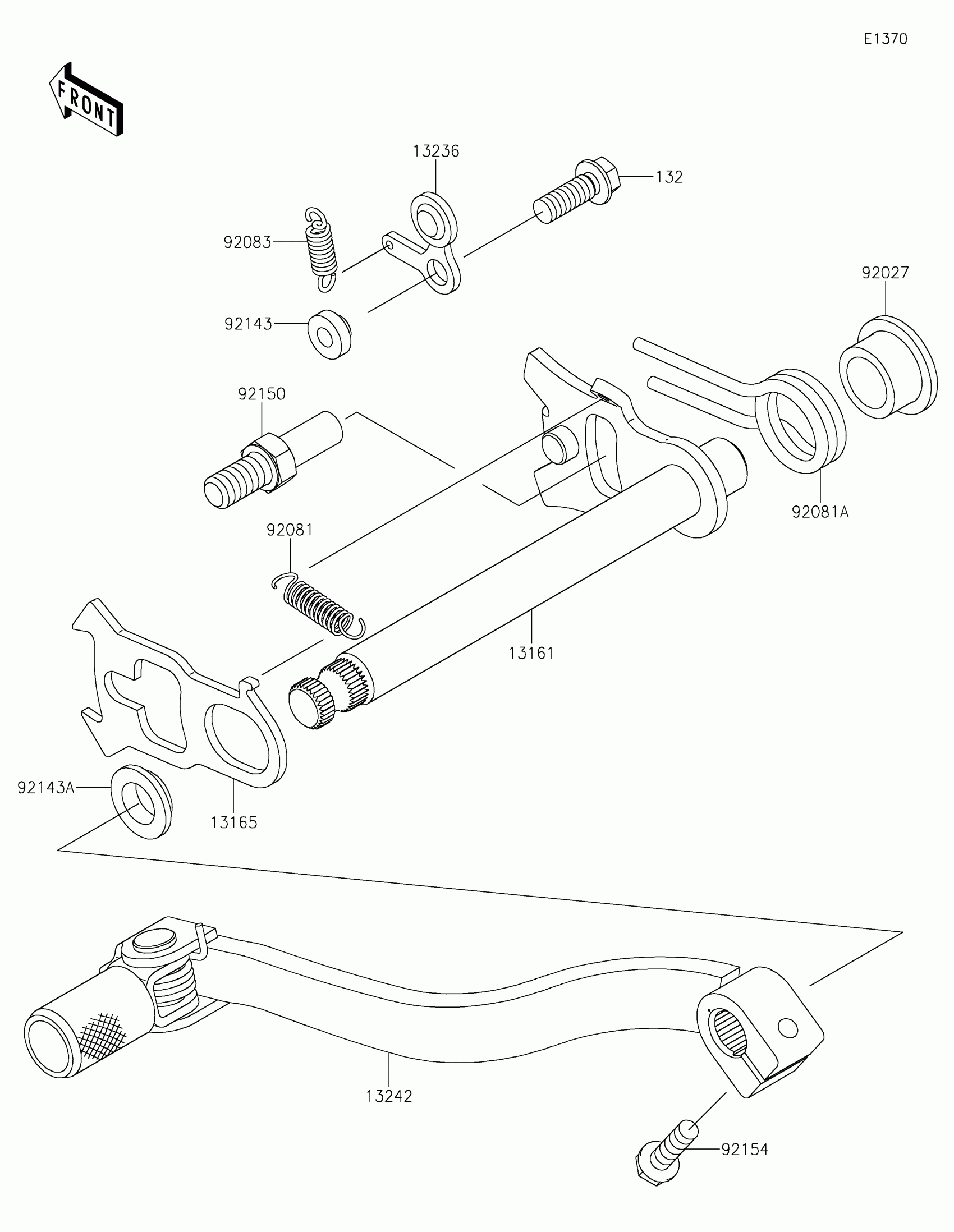

Kawasaki KX112 Gear Change Mechanism Diagram

Description

Price

13161

LEVER-COMP-CHANGE SHAFT

13161-0571

$52.02

13165

PAWL,CHANGE LEVER

13165-1114

$11.61

13236

LEVER-COMP,POSITION

13236-1152

$9.67

13242

LEVER-ASSY-CHANGE,PEDAL

13242-0100

$64.47

92027

COLLAR

92027-1940

$9.91

92081

SPRING,CHANGE LEVER

92081-076

$5.46

92081A

SPRING,CHANGE SHAFT RETURN

92081-1716

$9.82

92083

SPRING,CHANGE DRUM LEVER

92083-012

$4.65

92143

COLLAR

92143-1055

$7.34

92143A

COLLAR

92143-1995

$4.18

92150

BOLT,RETURN SPRING

92150-1467

$7.45

92154

BOLT,FLANGED,6X20

92154-2090

$2.75

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51
