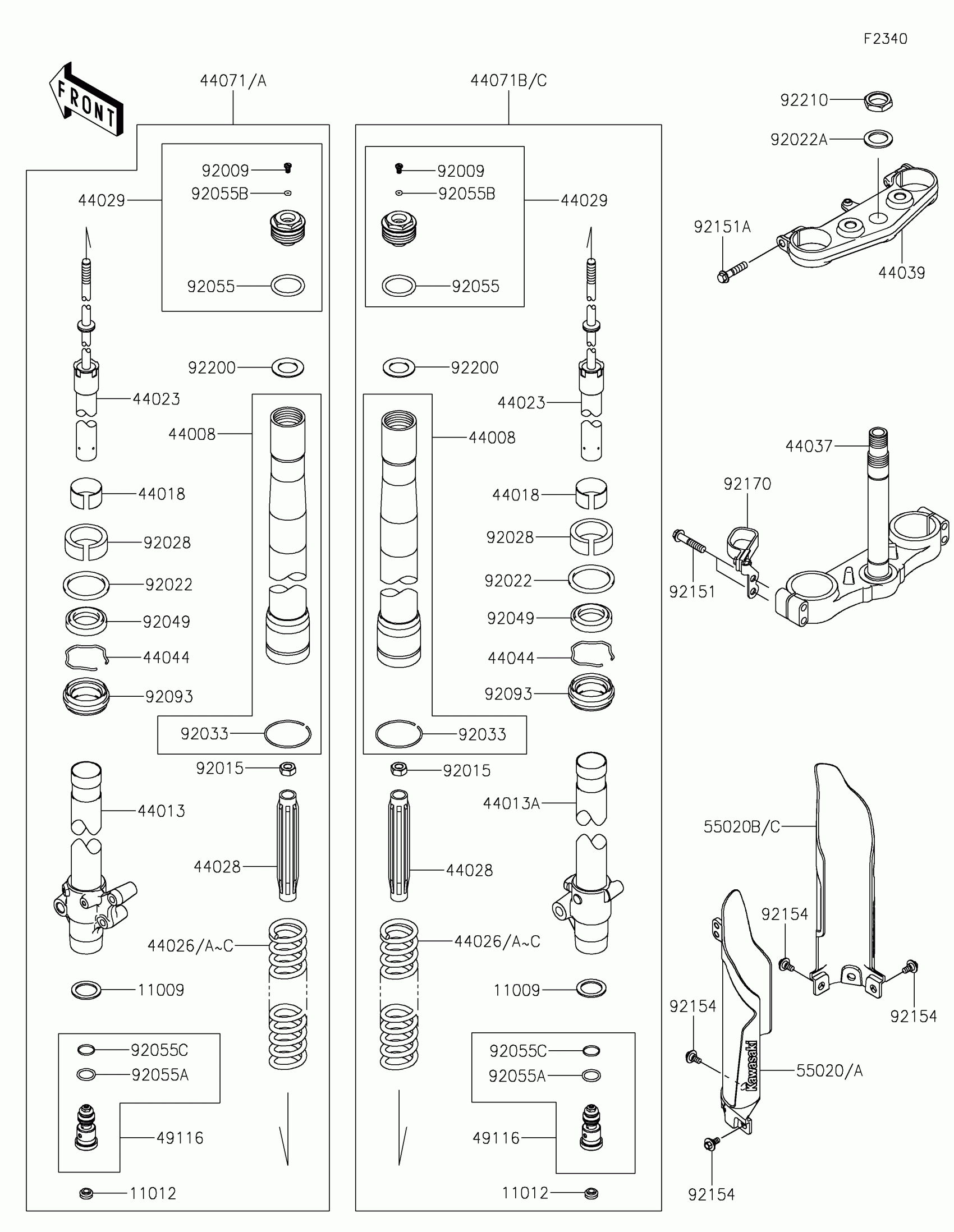

Kawasaki KX112 Front Fork Diagram
#
11009
GASKET,FORK CYLINDER BOLT
11009-1592
$6.16
11012
CAP
11012-1692
$6.16
44008
PIPE-FORK OUTER,K.GOLD
44008-0068-828
$449.05
44013
PIPE-FORK INNER,LH
44013-0215
$257.86
44013A
PIPE-FORK INNER,RH
44013-0216
$257.86
44018
PISTON-FORK
44018-1058
$21.36
44023
CYLINDER-SET-FORK
44023-0113
$352.91
44026
SPRING-FRONT FORK,K=2.75N/MM
44026-1633
$60.49
44026A
SPRING-FRONT FORK,K=2.84N/MM
44026-1634
$60.49
44026B
SPRING-FRONT FORK,K=2.94N/MM
44026-1635
$60.49
44026C
SPRING-FRONT FORK,K=2.65N/MM
44026-1671
$64.63
44028
GUIDE-FORK SPRING
44028-1090
$40.90
44029
SEAT-FORK SPRING,G.B.GREEN
44029-0024-50Y
$68.34
44037
HOLDER-FORK UNDER,F.BLACK
44037-0139-21
$307.73
44039
HOLDER-FORK UPPER,F.BLACK
44039-0128-21
$137.42
44044
RING-SNAP
44044-015
$14.94
44071
DAMPER-ASSY,FORK,LH,K.GOLD
44071-1361-59Z
$877.94
44071A
DAMPER-ASSY,FORK,LH,K.GOLD+GRN
44071-1361-70C
$877.94
44071B
DAMPER-ASSY,FORK,RH,K.GOLD
44071-1362-59Z
$877.94
44071C
DAMPER-ASSY,FORK,RH,K.GOLD+GRN
44071-1362-70C
$877.94
49116
VALVE-ASSY,BASE
49116-0038
$138.34
55020
GUARD,FORK,LH,L.GREEN
55020-0896-290
$29.03
55020A
GUARD,FORK,LH,BLACK
55020-0896-6D
$29.03
55020B
GUARD,FORK,RH,L.GREEN
55020-0897-290
$29.03
55020C
GUARD,FORK,RH,BLACK
55020-0897-6D
$29.03
92009
SCREW
92009-1568
$7.21
92015
NUT
92015-1839
$19.64
92022
WASHER,FRONT FORK
92022-1275
$7.34
92022A
WASHER,STEERING STEM
92022-1873
$7.45
92028
BUSHING
92028-1656
$16.18
92033
RING-SNAP
92033-0737
$7.52
92049
SEAL-OIL,FORK OUTER TUBE
92049-1394
$19.64
92055
RING-O
92055-1123
$6.22
92055A
RING-O
92055-1156
$1.42
92055B
RING-O,2.8X6.6X1.9
92055-1441
$4.33
92055C
RING-O,FORK VALVE
92055-1502
$7.45
92093
SEAL,FORK OUTER TUBE
92093-1426
$22.90
92151
BOLT,FLANGED,8X40
92151-1877
$5.05
92151A
BOLT,FLANGED,8X35
92151-1878
$4.76
92154
BOLT,FLANGED,6X9
92154-0546
$3.74
92170
CLAMP
92170-1810
$9.49
92200
WASHER
92200-1655
$5.79
92210
NUT,STEERING STEM,22MM
92210-1521
$16.69
