Description

Price

11001

HEAD-CYLINDER

11001-0774

$148.29

11004

GASKET-HEAD

11004-0739

$32.68

11005

CYLINDER-ENGINE

11005-0729

$769.33

11060

GASKET,GOVERNOR COVER

11060-1778

$5.85

11060A

GASKET,CYLINDER BASE

11060-1779

$7.55

11061

GASKET

11061-0889

$5.62

12005

VALVE-EXHAUST

12005-0731

$165.91

12005A

VALVE-EXHAUST

12005-0733

$165.91

12021

VALVE-ASSY-REED

12021-1123

$166.44

12022

VALVE-REED

12022-1084

$58.38

13168

LEVER

13168-0779

$34.21

13234

SHAFT-COMP

13234-0048

$34.67

13272

PLATE

13272-1450

$6.24

14093

COVER

14093-0003

$29.77

14093A

COVER

14093-0046

$41.06

16065

HOLDER-CARBURETOR

16065-1372

$64.25

92002

BOLT,6X10

92002-1222

$8.10

92004

STUD,8X33

92004-1253

$4.65

92005

FITTING

92005-0050

$14.14

92009

SCREW,REED VALVE

92009-1014

$2.49

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92022A

WASHER,6.2X11X1

92022-304

$3.65

92037

CLAMP

92037-1173

$3.49

92037A

CLAMP

92037-1843

$8.58

92049

SEAL-OIL,SD088144

92049-1238

$10.46

92150

BOLT,SOCKET,4X8

92150-1888

$3.32

92192

TUBE,L=426.3

92192-0265

$15.06

92210

NUT,8MM

92210-0076

$5.48

120

BOLT-SOCKET,5X10

120CA0510

$1.57

130

BOLT-FLANGED,6X8

130AA0608

$0.68

130A

BOLT-FLANGED,5X20

130BA0520

$0.92

130B

BOLT-FLANGED,5X25

130BA0525

$0.65

221

SCREW-CSK-CROS,5X12

221AA0512

$0.74

482

CIRCLIP-TYPE-E,5MM

482J5000

$3.41

610

ROLLER,4X8

610A0408

$4.31

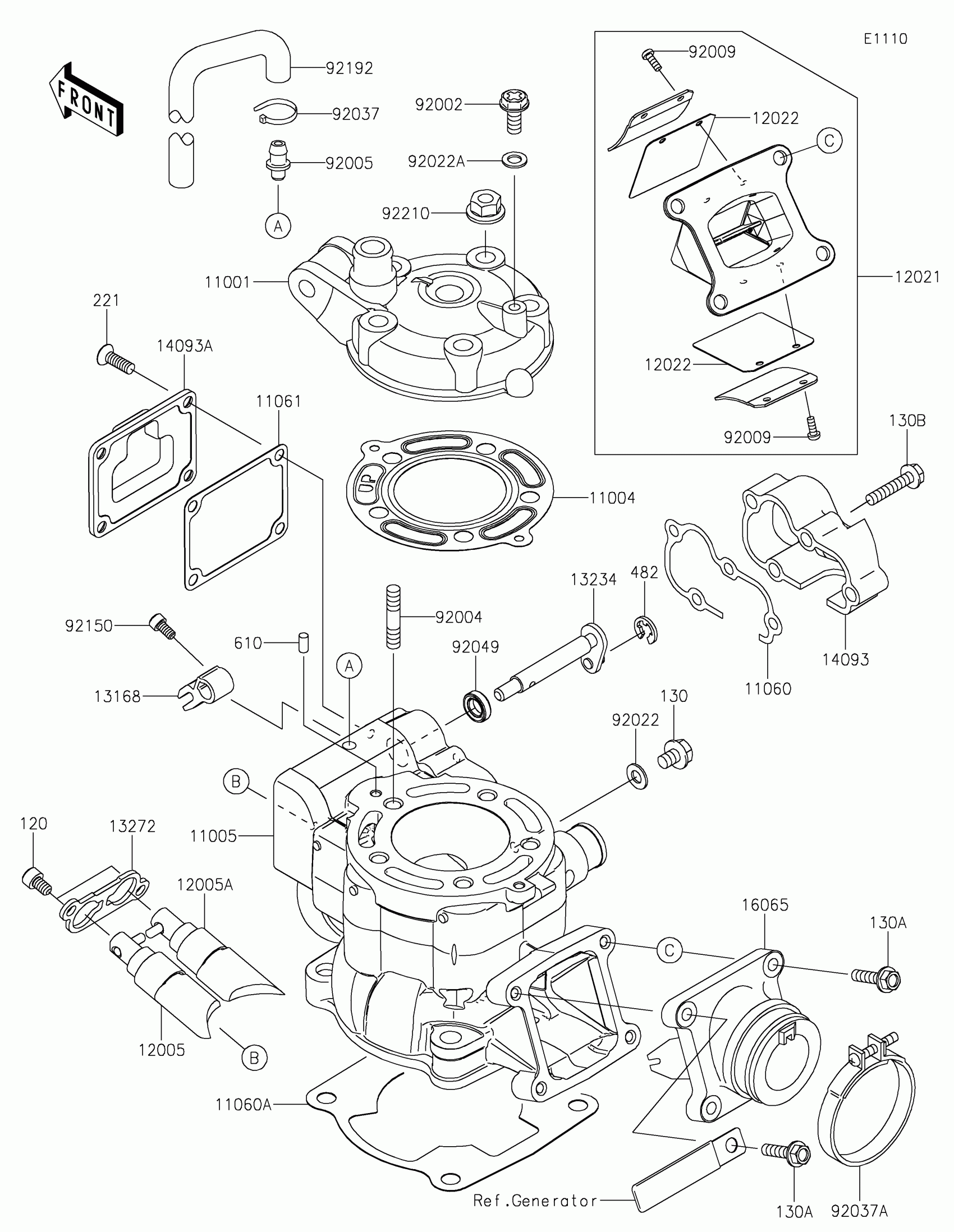

Kawasaki KX112 Cylinder Head/Cylinder Diagram

HEAD-CYLINDER

GASKET-HEAD

CYLINDER-ENGINE

GASKET,GOVERNOR COVER

GASKET,CYLINDER BASE

GASKET

VALVE-EXHAUST

VALVE-EXHAUST

VALVE-ASSY-REED

VALVE-REED

LEVER

SHAFT-COMP

PLATE

COVER

COVER

HOLDER-CARBURETOR

BOLT,6X10

STUD,8X33

FITTING

SCREW,REED VALVE

WASHER OIL PUMP BANJO

WASHER,6.2X11X1

CLAMP

CLAMP

SEAL-OIL,SD088144

BOLT,SOCKET,4X8

TUBE,L=426.3

NUT,8MM

BOLT-SOCKET,5X10

BOLT-FLANGED,6X8

BOLT-FLANGED,5X20

BOLT-FLANGED,5X25

SCREW-CSK-CROS,5X12

CIRCLIP-TYPE-E,5MM

ROLLER,4X8
