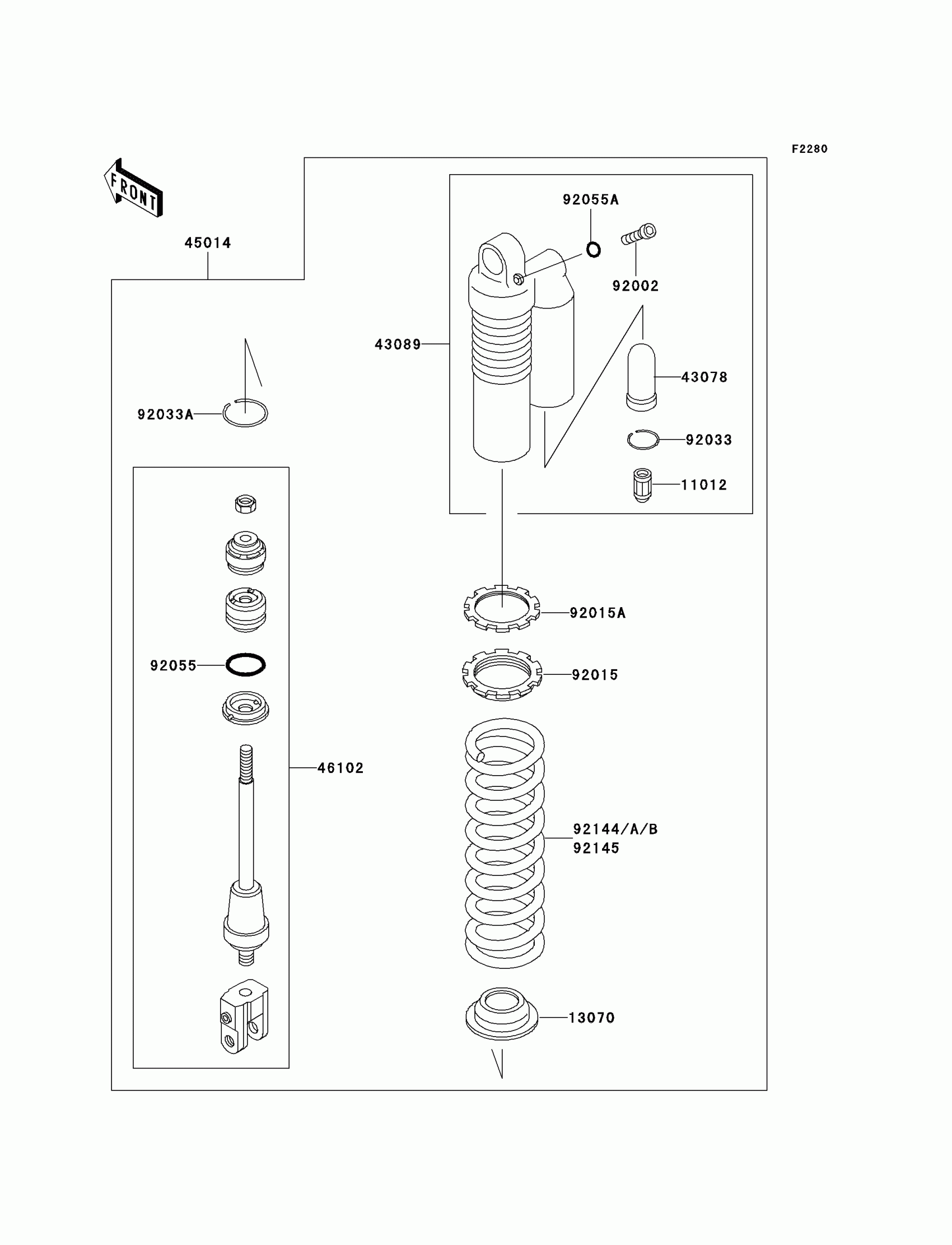

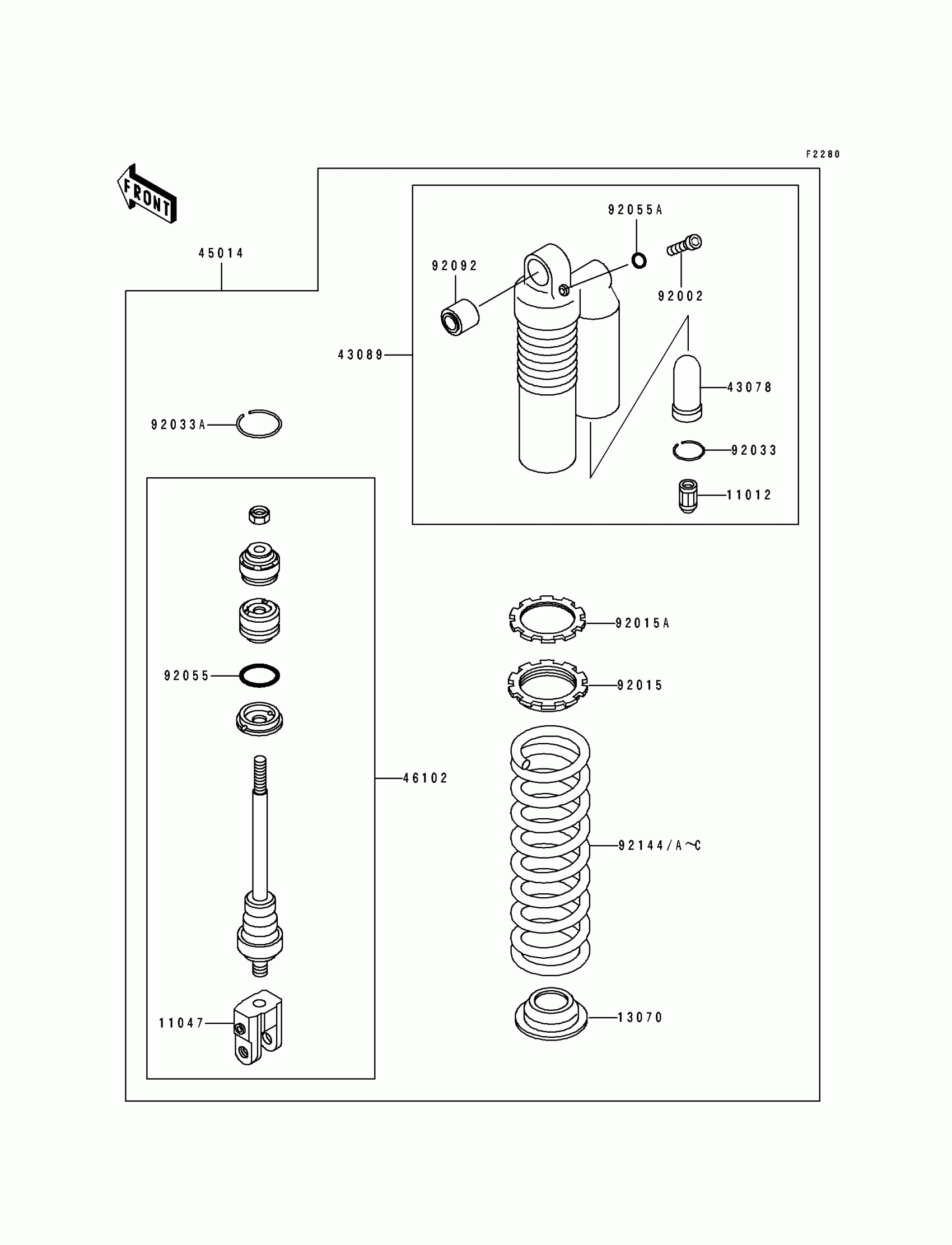

Kawasaki KX100 Shock Absorber(s) Diagram

Description

Price

11012

CAP,VALVE AIR

11012-1391

$5.73

13070

GUIDE,SPRING

13070-1233

$33.90

43078

RESERVOIR,SHOCKABSORBER

43078-1112

$86.55

43089

CYLINDER-SHOCKABSORBER

43089-1162

$546.21

45014

SHOCKABSORBER,I.SILVER

45014-1662-8V

$1,006.67

46102

ROD,SHOCKABSORBER

46102-1411

$692.48

92002

BOLT,DRAIN

92002-1955

$11.16

92015

NUT,SPRING ADJUST

92015-1679

$35.12

92015A

NUT,SPRING ADJUST LOCK

92015-1713

$35.12

92033

RING-SNAP,REARSHOCK

92033-1091

$4.96

92033A

RING-SNAP,SHOCKABSORBER

92033-1211

$4.26

92055

RING-O,ROD

92055-1334

$7.34

92055A

RING-O

92055-1383

$4.11

92144

SPRING,SHOCKABSORBER,K=4.6,SIL

92144-1570-8V

$382.98

92144A

SPRING,SHOCKABSORBER,K=5.0,SIL

92144-1571-8V

$382.98

92144B

SPRING,SHOCKABSORBER,K=4.8,SIL

92144-1945-8V

$382.98

92145

SPRING,SHOCKABSORBER,K=4.4,SIL

92145-1371-8V

$367.98
