Description

Price

120

BOLT-SOCKET,8X16

120P0816

$4.15

41080

DISC,RR

41080-1444

Unavailable

41080A

DISC,RR

41080-1445

Unavailable

43041

CALIPER-ASSY,RR

43041-1638

$279.70

43048

PISTON-CALIPER

43048-1064

$67.26

43049

PACKING,PISTON SEAL

43049-1060

$19.45

43049A

PACKING,PISTON SEAL

43049-1061

$10.56

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43082

PAD-ASSY-BRAKE

43082-1205

$53.44

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1089

$7.38

55020

GUARD,CALIPER,P.WHITE

55020-1247-6F

$20.91

92009

SCREW,6X10,WHITE

92009-1286

$4.31

92009A

SCREW,6X10

92009-1375

$3.92

92025

SHIM,PAD

92025-1817

$9.28

92075

DAMPER

92075-1414

$7.34

92081

SPRING,PAD

92081-1502

$8.51

92150

BOLT

92150-1144

$9.91

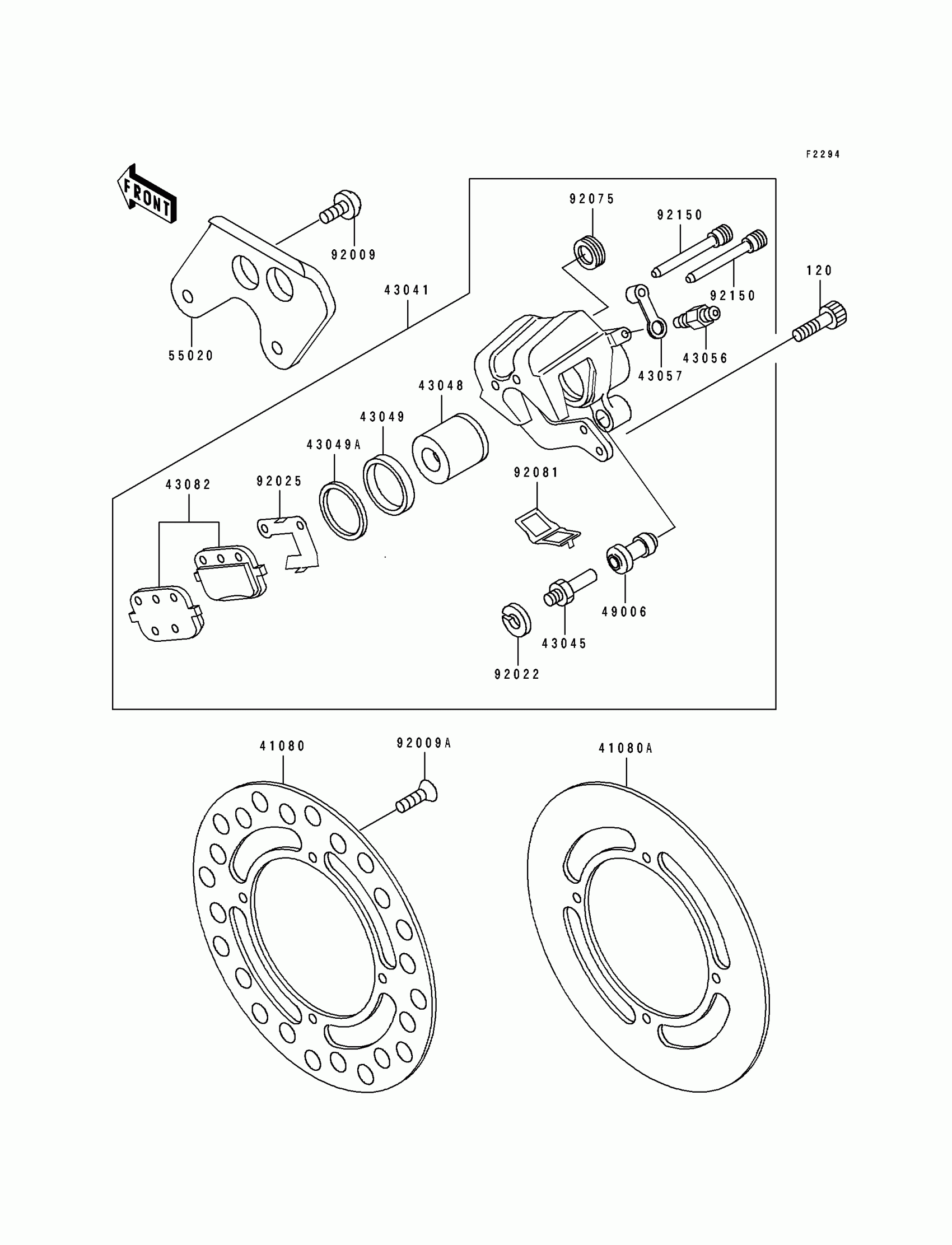

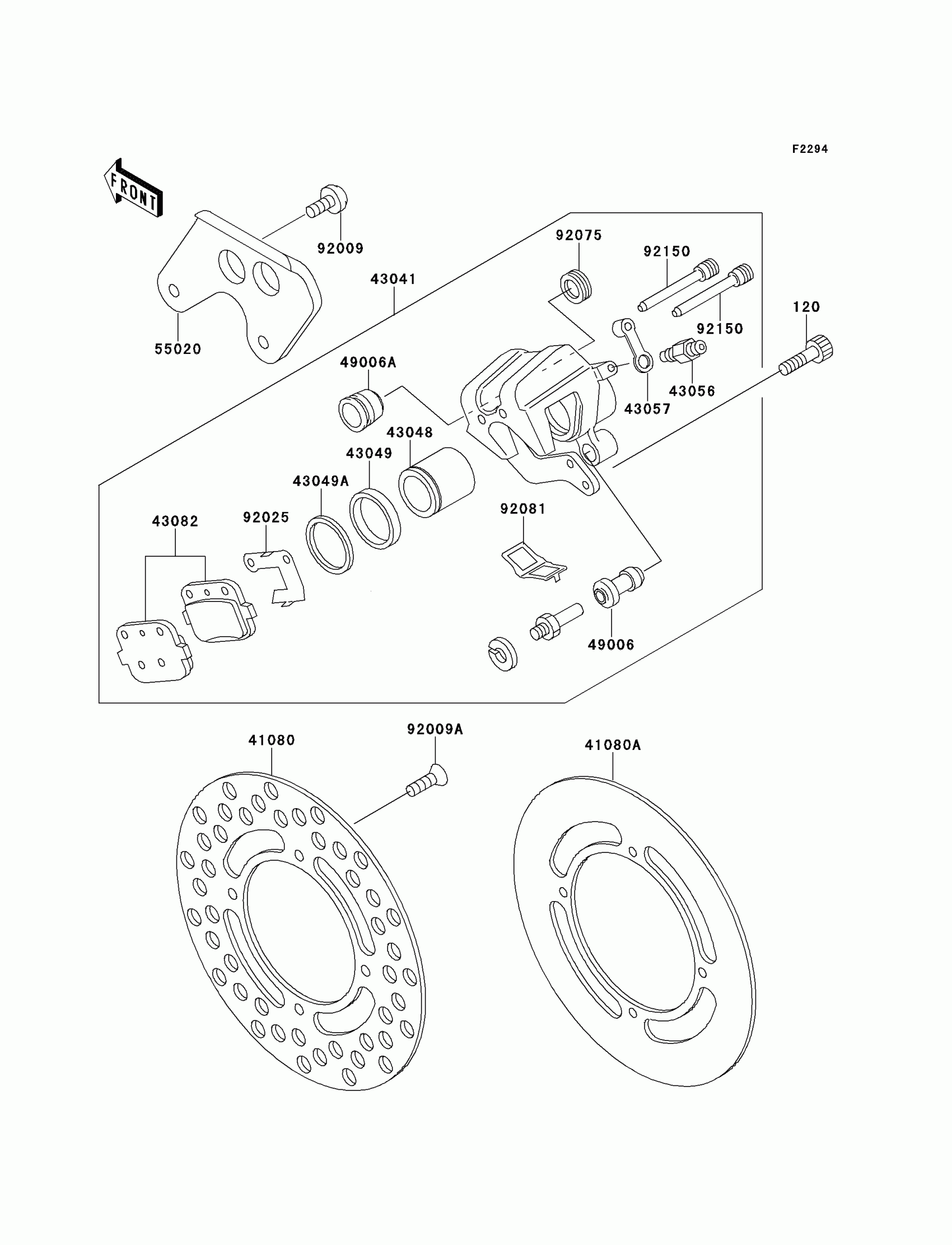

Kawasaki KX100 Rear Brake Diagram

BOLT-SOCKET,8X16

DISC,RR

DISC,RR

CALIPER-ASSY,RR

PISTON-CALIPER

PACKING,PISTON SEAL

PACKING,PISTON SEAL

BREATHER

CAP-BREATHER

PAD-ASSY-BRAKE

BOOT,CALIPER

BOOT,CALIPER

GUARD,CALIPER,P.WHITE

SCREW,6X10,WHITE

SCREW,6X10

SHIM,PAD

DAMPER

SPRING,PAD

BOLT
