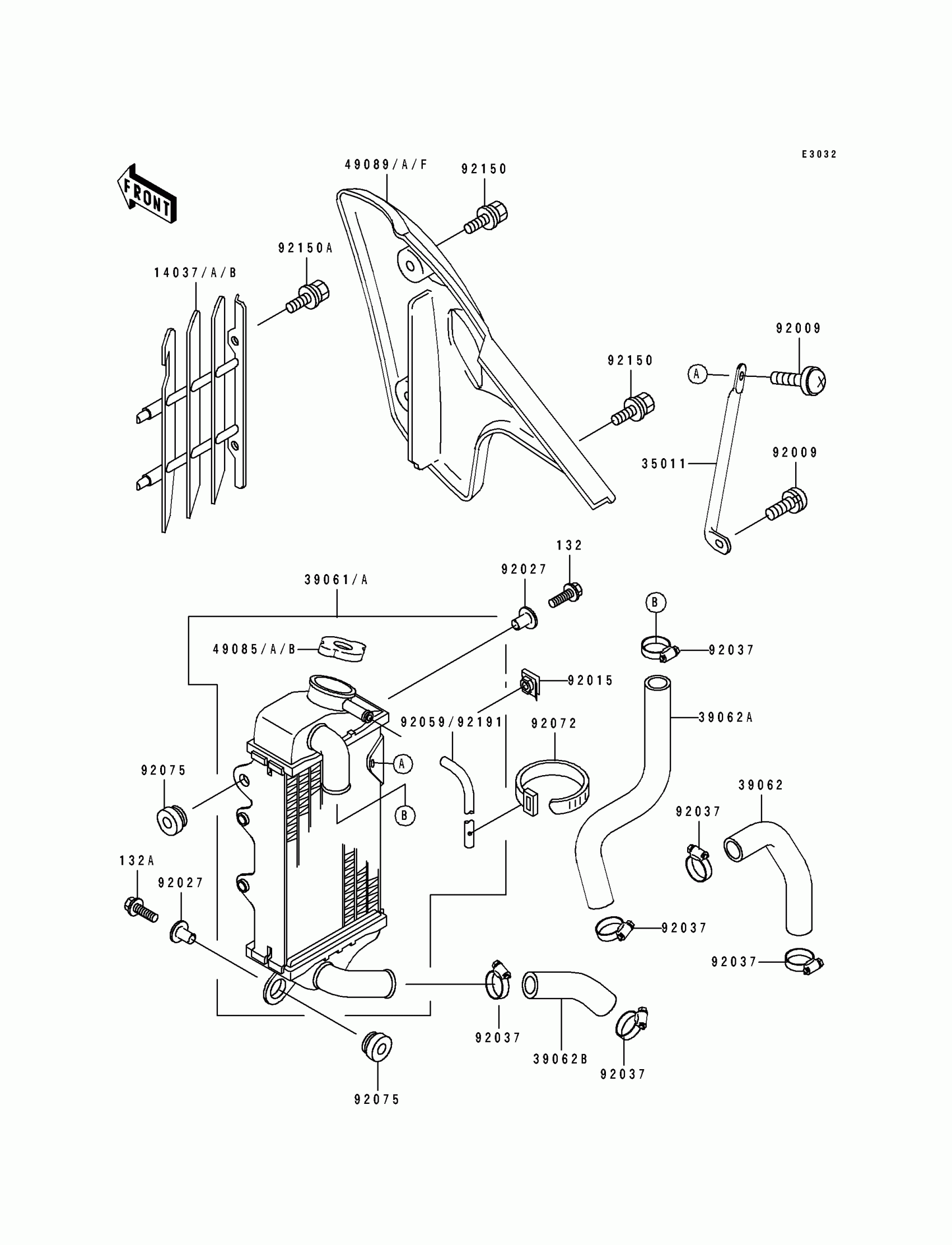

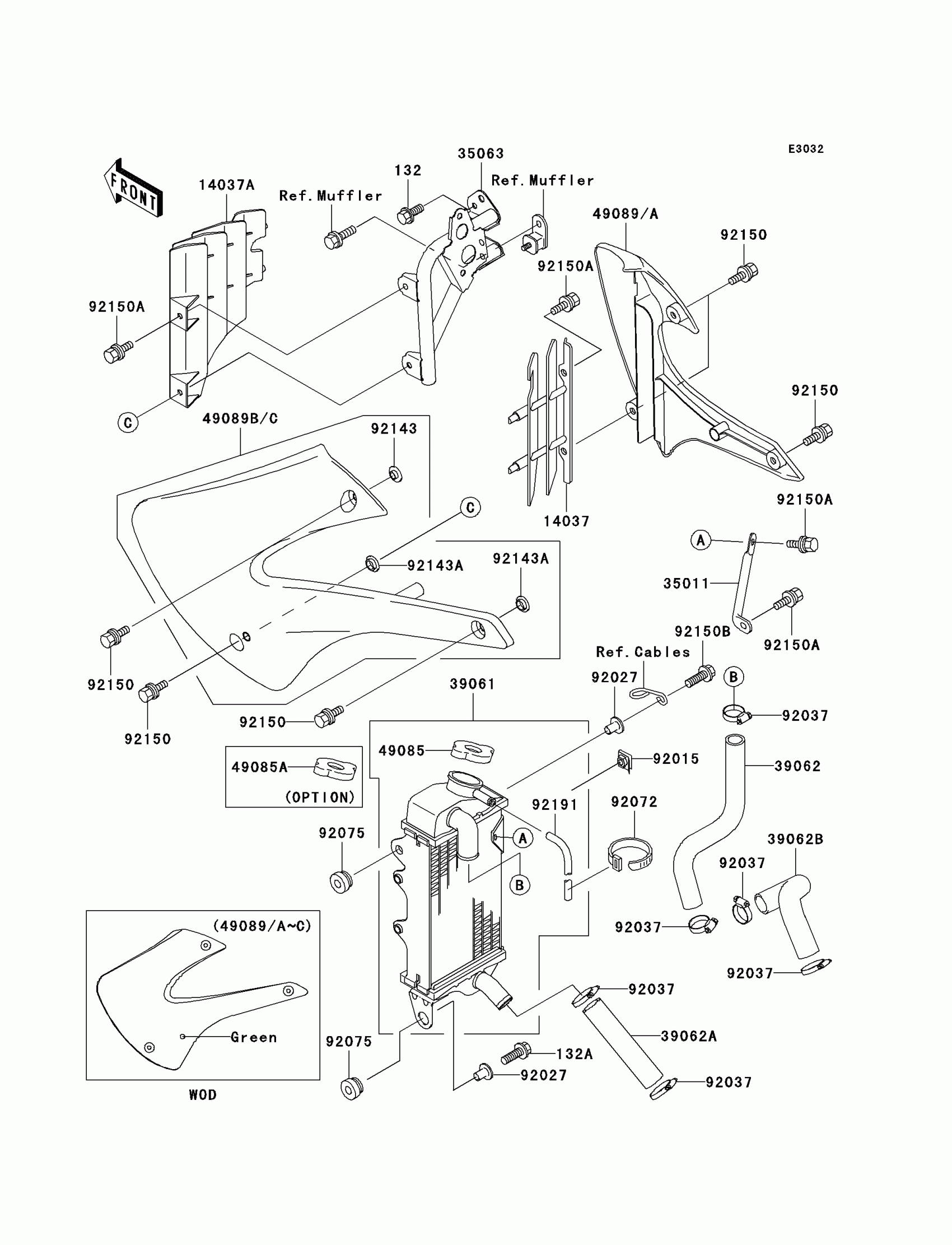

Kawasaki KX100 Radiator Diagram
#
Description
Price
132
BOLT-FLANGED-SMALL
132G0612
$1.17
132A
BOLT-FLANGED-SMALL
132G0625
Unavailable
14037
SCREEN,RH,WHITE
14037-1249-RZ
$42.41
14037A
SCREEN,LH,WHITE
14037-1282-RZ
$38.60
35011
STAY
35011-1845
$14.44
35063
STAY
35063-1137
$71.81
39061
RADIATOR-ASSY
39061-1245
$488.97
39062
HOSE-COOLING,HEAD-RADIATOR
39062-1425
$34.20
39062A
HOSE-COOLING,RADIATOR-PUMP
39062-1711
$16.50
39062B
HOSE-COOLING,CYLINDER PUMP
39062-1712
$25.83
49085
CAP-ASSY-PRESSURE,P1.1
49085-1070
$50.52
49085A
CAP-ASSY-PRESSURE,P1.6
49085-1073
$50.52
49089
SHROUD-ENGINE,RH,L.GREEN
49089-1139-290
$47.76
49089B
SHROUD-ENGINE,LH,L.GREEN
49089-1146-290
$48.02
92015
NUT
92015-1487
$4.80
92027
COLLAR,6.5X10X14.1
92027-1183
$5.52
92037
CLAMP,COOLING HOSE
92037-1589
$18.57
92072
BAND,L=186
92072-056
$5.00
92075
DAMPER
92075-1352
$6.52
92143
COLLAR
92143-1087
$4.31
92143A
COLLAR
92143-1196
$4.69
92150
BOLT,6X14
92150-1340
$5.07
92150A
BOLT,6X12
92150-1435
$4.31
92150B
BOLT,FLANGED,6X25
92150-1507
$4.80
92191
TUBE,6X9X700
92191-1211
$9.64
