Description

Price

132

BOLT-FLANGED-SMALL

132G0612

$1.17

670

O RING

670E3034

$7.98

11060

GASKET,EXHAUST HOLDER

11060-1842

$7.20

18020

BAFFLE

18020-1272

$129.28

18046

WOOL

18046-1559

$57.91

18100

BODY-ASSY-MUFFLER

18100-1084

$202.38

18120A

CHAMBER-EXHAUST

18120-1127

$322.18

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,6.5X22X1.6

92022-237

$3.92

92027

COLLAR 6.8X10X10.5

92027-120

$5.00

92055

RING-O,BAFFLE PIPE

92055-1461

$7.34

92075

DAMPER

92075-1598

$8.58

92093

SEAL,MUFFLER JOINT

92093-1200

$43.27

92145

SPRING,EXHAUST CONNECTING

92145-1340

$13.43

92150

BOLT,FLANGED,6X14,WASHER

92150-1392

$4.80

92150A

BOLT,FLANGED,6X25

92150-1507

$4.80

92151

BOLT,FLANGED,6X10

92151-1822

$1.74

92160

DAMPER,MUFFLER,FR

92160-1176

$28.25

92160A

DAMPER

92160-1913

$2.67

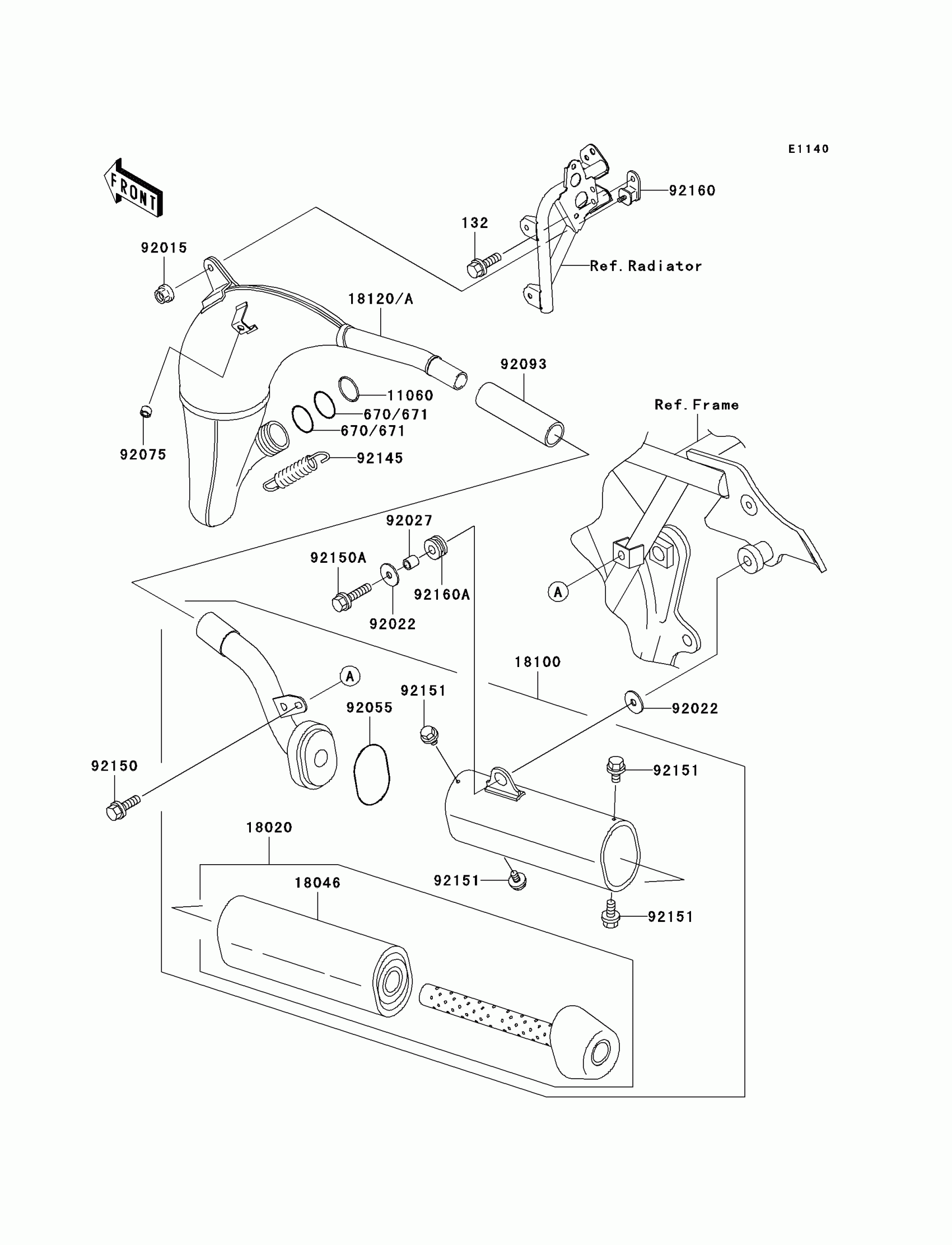

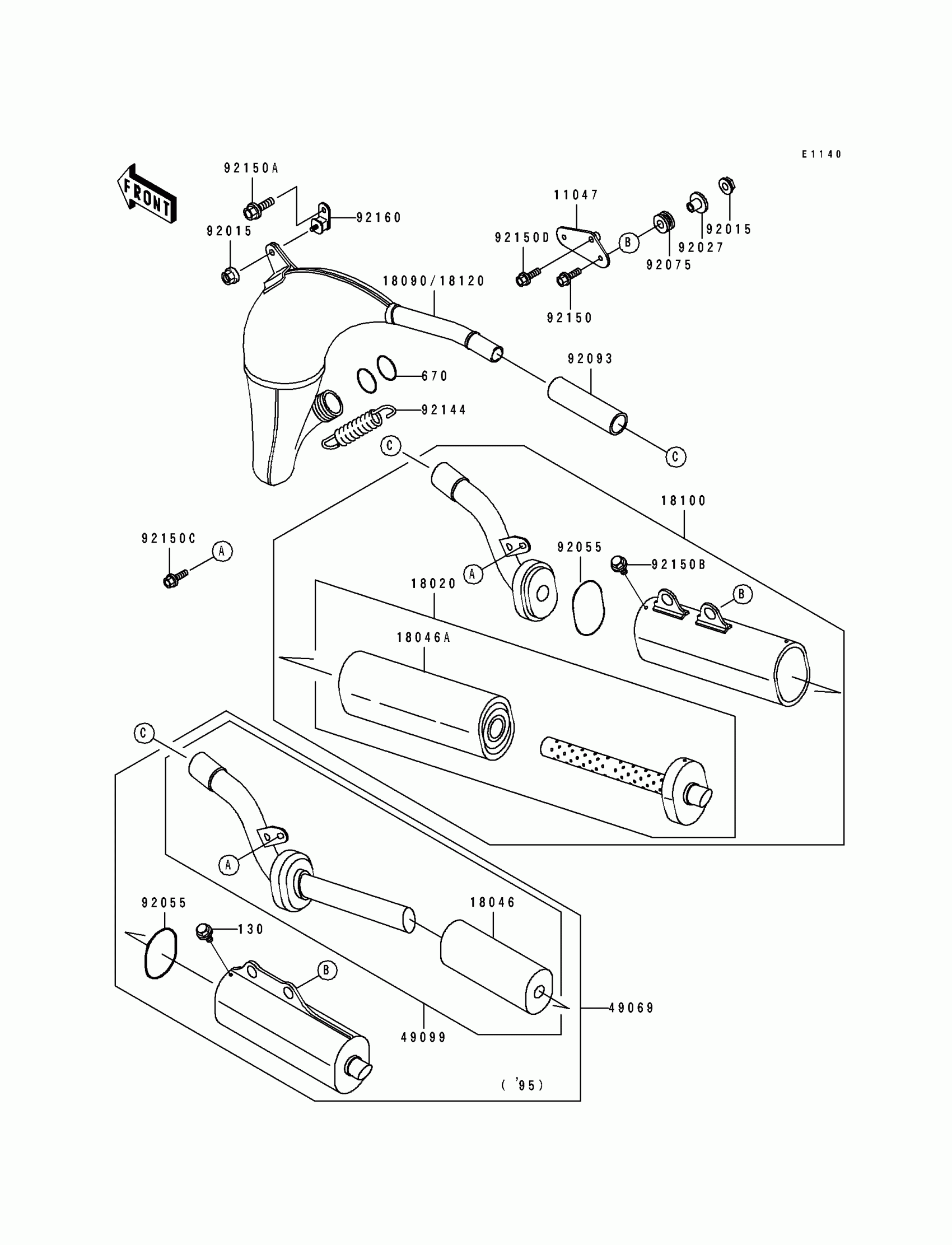

Kawasaki KX100 Muffler(s) Diagram

BOLT-FLANGED-SMALL

O RING

GASKET,EXHAUST HOLDER

BAFFLE

WOOL

BODY-ASSY-MUFFLER

CHAMBER-EXHAUST

NUT,FLANGED,6MM

WASHER,6.5X22X1.6

COLLAR 6.8X10X10.5

RING-O,BAFFLE PIPE

DAMPER

SEAL,MUFFLER JOINT

SPRING,EXHAUST CONNECTING

BOLT,FLANGED,6X14,WASHER

BOLT,FLANGED,6X25

BOLT,FLANGED,6X10

DAMPER,MUFFLER,FR

DAMPER
