2000 Kawasaki KX100 Labels Diagram

← All diagrams

Find the part on the Labels diagram for your 2000 Kawasaki KX100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

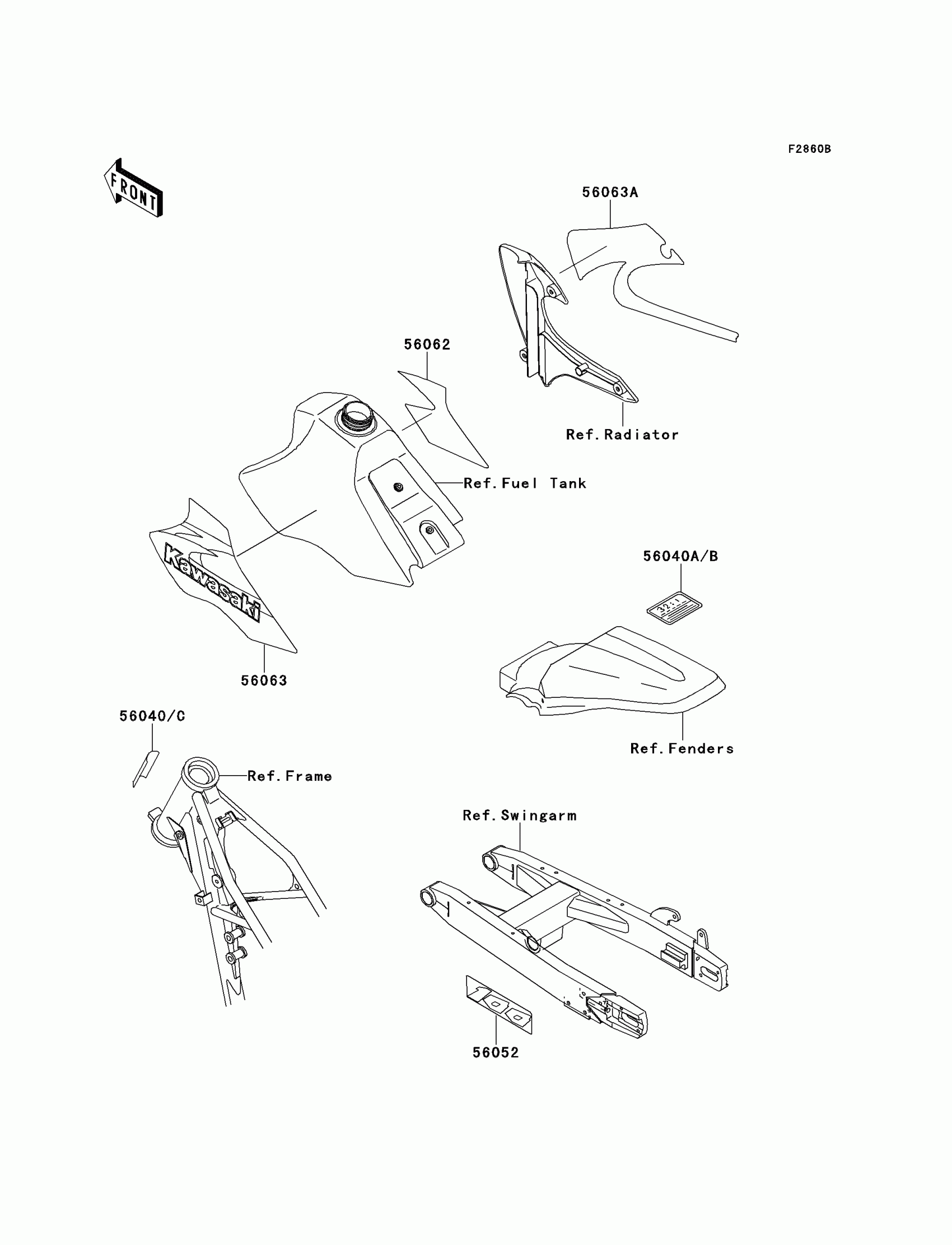

2000 Kawasaki KX100 Labels Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56052

MARK,SWING ARM,100

56052-1112

1

$20.68

In stock

56062

1

$24.08

In stock

56063

PATTERN,FUEL TANK,LH

56063-1158

1
Out of stock

56063A

PATTERN,SHROUD,RH

56063-1159

1
Out of stock

56040

LABEL-WARNING,NOISE

56040-1101

1
Out of stock

56040A

LABEL-WARNING,GASOLINE/OIL

56040-1129

1
Out of stock

56040B

LABEL-WARNING,GASOLINE/OIL

56040-1306

1
Out of stock

56040C

LABEL-WARNING,WARRANTY

56040-1335

1
Out of stock
