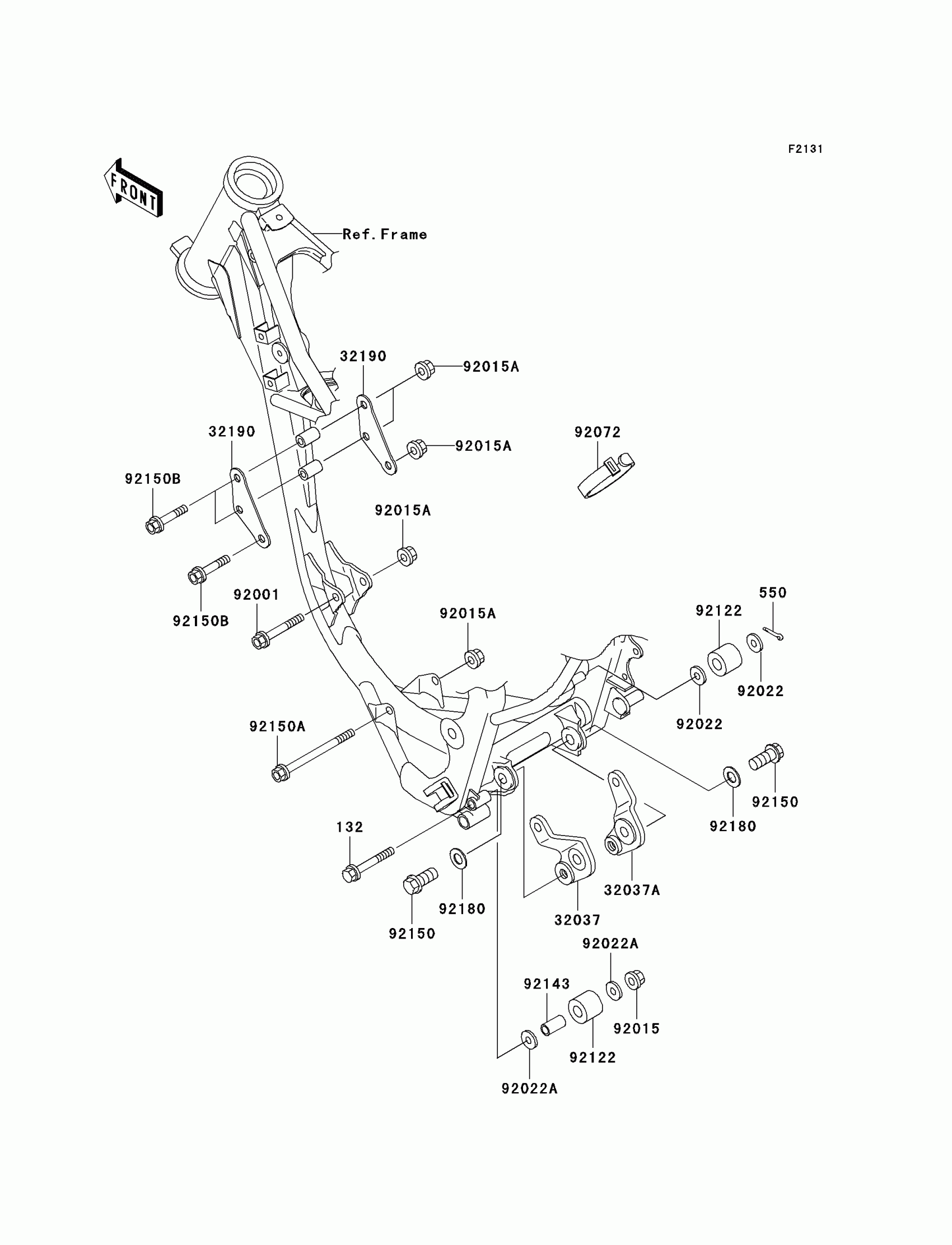

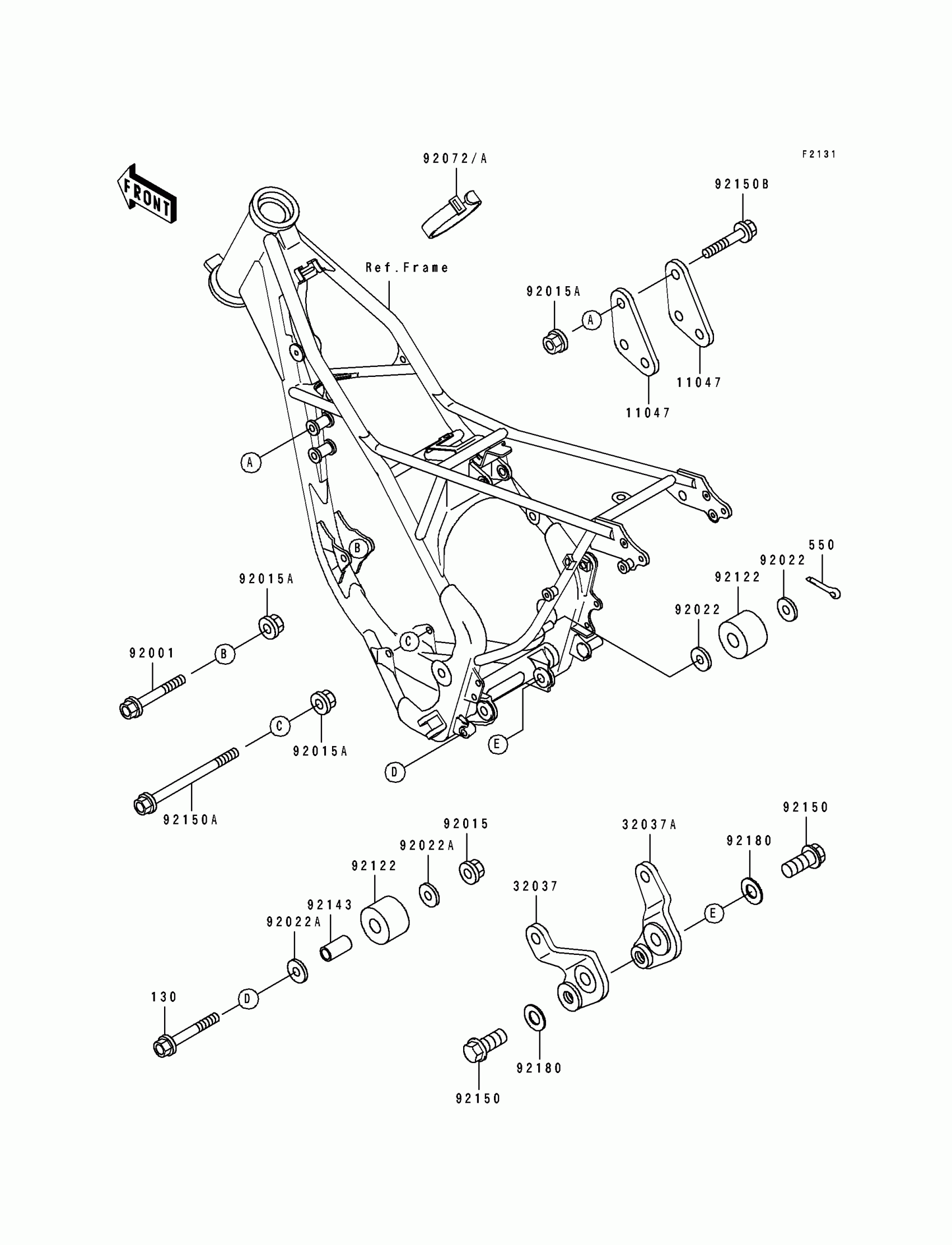

Kawasaki KX100 Frame Fittings Diagram

Description

Price

11047

BRACKET,ENGINE

11047-1099

Unavailable

32037

BRACKET-SHOCKABSORBER

32037-1552

$48.79

32037A

BRACKET-SHOCKABSORBER

32037-1553

$48.79

92001

BOLT,FLANGED,8X63

92001-1006

$8.54

92015

NUT,8MM

92015-1143

$0.66

92015A

NUT,8MM

92015-1432

$5.21

92022

WASHER

92022-107

$2.20

92022A

WASHER,8.5X20X1.6

92022-1561

$3.43

92072

BAND,L=123

92072-030

$3.97

92072A

BAND,L=149

92072-031

$3.97

92122

ROLLER,CHAIN GUIDE

92122-1179

$18.02

92143

COLLAR,9.5X12.7X25

92143-1432

$5.84

92150

BOLT,FLANGED,12X27

92150-1359

$6.24

92150A

BOLT,FLANGED,8X105

92150-1482

$7.86

92150B

BOLT,FLANGED,8X45

92150-1487

$5.21

92180

SHIM,12.5X24X0.5

92180-1060

$3.53

130

BOLT-FLANGED,8X60

130G0860

Unavailable

550

PIN-COTTER,2.5X15

550D2515

$0.51
