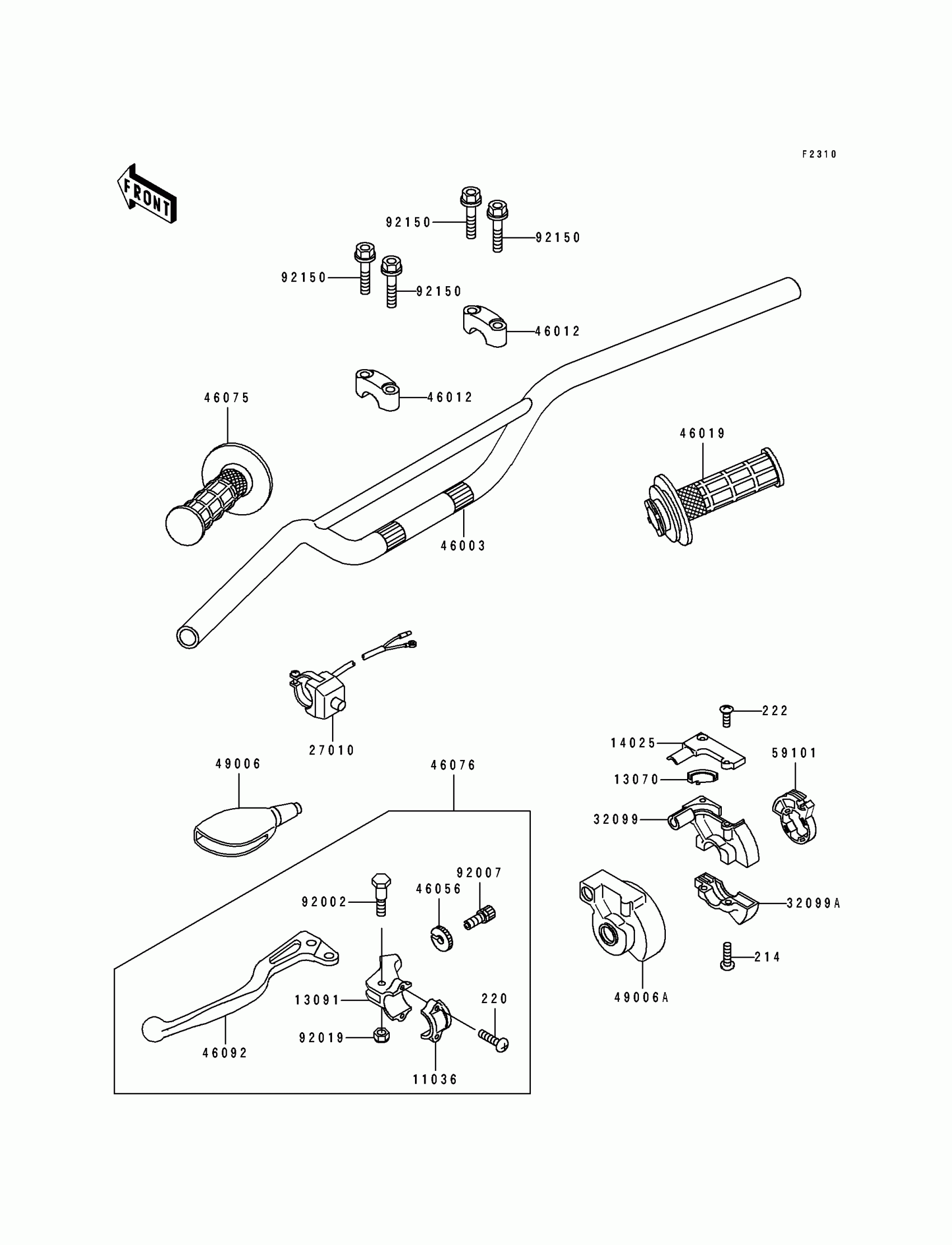

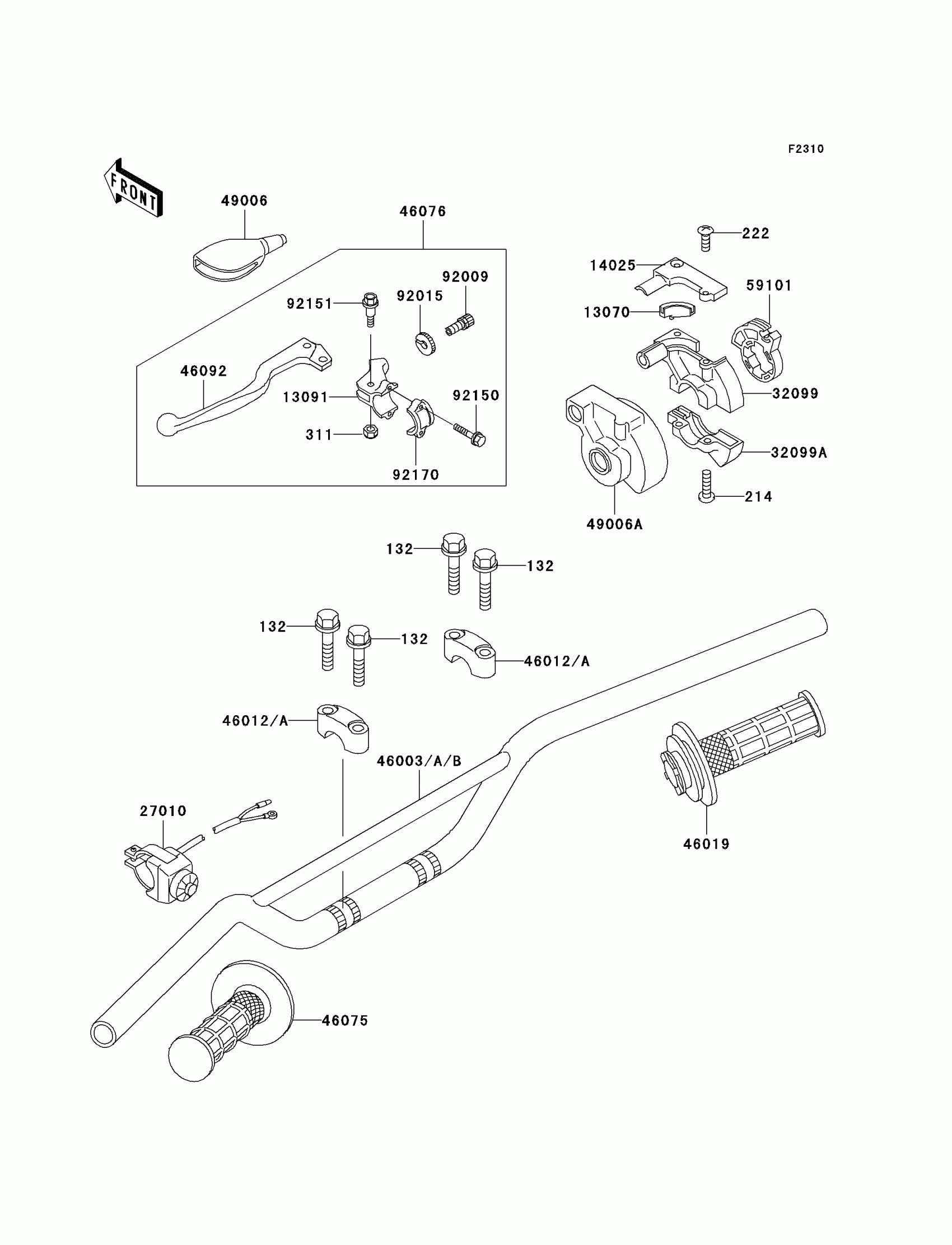

Kawasaki KX100 Handlebar Diagram
#
Description
Price
132
BOLT-FLANGED-SMALL,8X30
132G0830
$4.15
214
SCREW-PAN+-,5X18
214C0518
$3.69
222
SCREW-CSK-RD-CROS,4X12
222E0412
$2.63
311
NUT-HEX
311B0500
$0.47
13070
GUIDE,THROTTLE
13070-1074
Unavailable
13091
HOLDER,CLUTCH LEVER
13091-1728
$51.24
14025
COVER,THROTTLE CASE UPP
14025-1646
$9.36
27010
SWITCH,ENGINE STOP
27010-1415
$58.65
32099
CASE,THROTTLE UPP
32099-1036
$35.36
32099A
CASE,THROTTLE LWR
32099-1044
Unavailable
46003
HANDLE,P.SILVER
46003-0027-458
$88.13
46012
HOLDER-HANDLE,UPP,P.SILVER
46012-0011-458
$34.09
46019
GRIP-ASSY,THROTTLE
46019-1054
$35.69
46075
GRIP,LH
46075-1024
$25.66
46076
LEVER-ASSY-GRIP,CLUTCH
46076-1203
$40.25
46092
LEVER-GRIP,CLUTCH
46092-1165
$15.95
49006
BOOT,LEVER HOLDER
49006-1017
$18.72
49006A
BOOT,THROTTLE CASE
49006-1097
$17.98
59101
REEL,THROTTLE
59101-1110
$11.27
92009
SCREW,CABLE ADJUST,8MM
92009-1476
$18.89
92015
NUT,CABLE ADJUST LOCK,8MM
92015-1596
$8.86
92150
BOLT
92150-1474
$5.00
92151
BOLT,LEVER SET,5MM
92151-1103
$6.57
92170
CLAMP,LEVER HOLDER
92170-1226
$27.29
