Description

Price

132

BOLT-FLANGED-SMALL

132G0612

$1.17

132A

BOLT-FLANGED-SMALL

132G0625

Unavailable

220

SCREW-PAN-CROS,3X8

220B0308

$0.59

11060

GASKET,FUEL TANK CAP

11060-1340

$6.16

43049

PACKING,TAP VALVE

43049-1091

$7.26

51001A

TANK-COMP-FUEL,F.BLACK

51001-1677-6Z

$533.26

51023

TAP-ASSY,FUEL

51023-1339

Unavailable

51044

TUBE-ASSY

51044-1185

$17.39

51048

CAP-ASSY-TANK,FUEL

51048-1124

$54.33

59231

FILLER

59231-1096

$6.16

92009

SCREW,6X10

92009-1530

$3.92

92022

WASHER,PLAIN,6.5X20X1

92022-165

$3.74

92022A

WASHER,6.5X24X2

92022-1690

$3.92

92027

COLLAR,6.8X10X14

92027-1966

$5.00

92027A

COLLAR,6.2X7.8X5

92027-2096

$0.49

92055

RING-O,FUEL TAP PACKING

92055-1348

$7.34

92055A

RING-O,TAP LEVER

92055-1419

$5.00

92072

BAND,FUEL TANK

92072-1229

$12.74

92075

DAMPER

92075-1787

$6.57

92160

DAMPER,FUEL TANK

92160-1236

$18.15

92161

DAMPER,FUEL TANK

92161-1175

$5.69

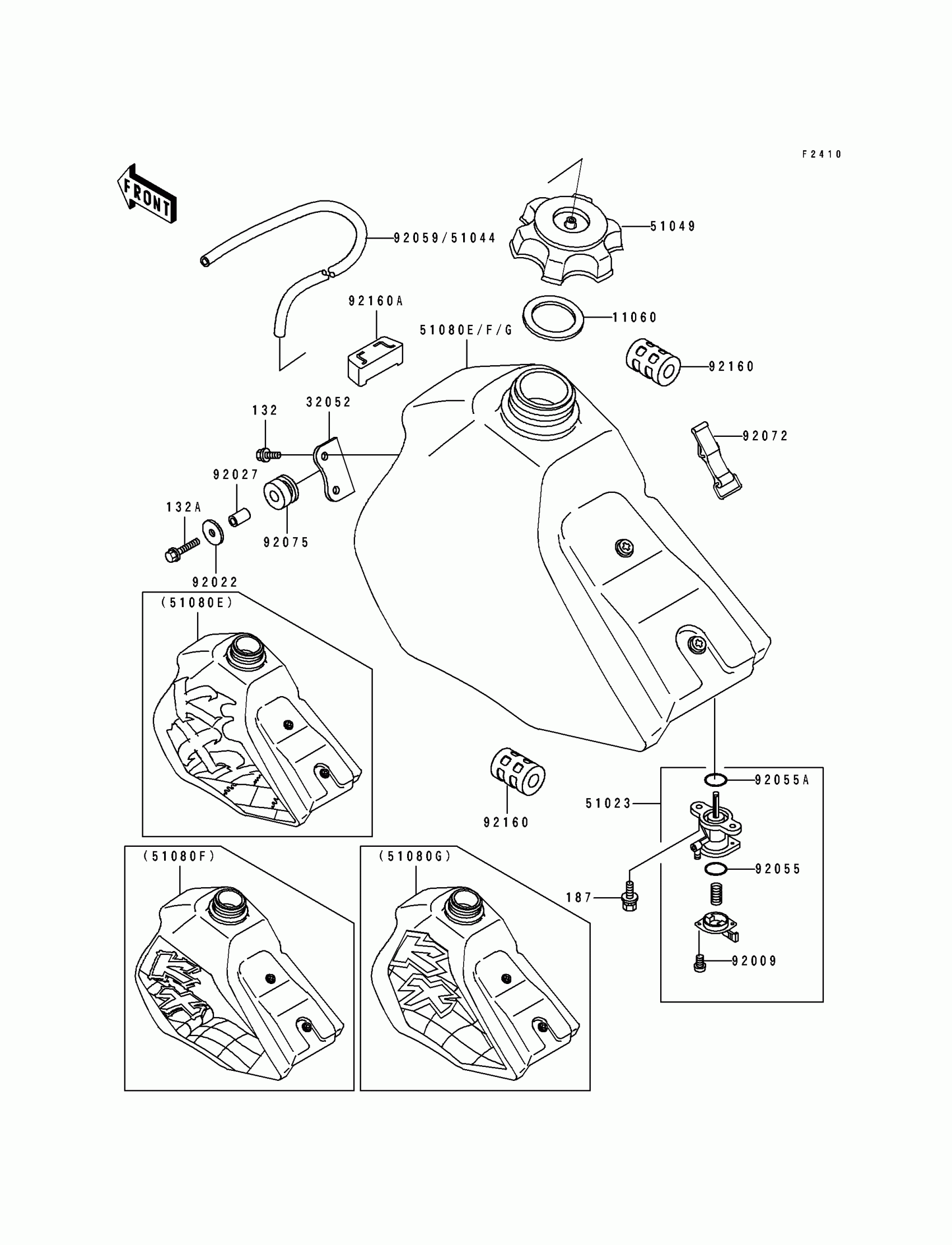

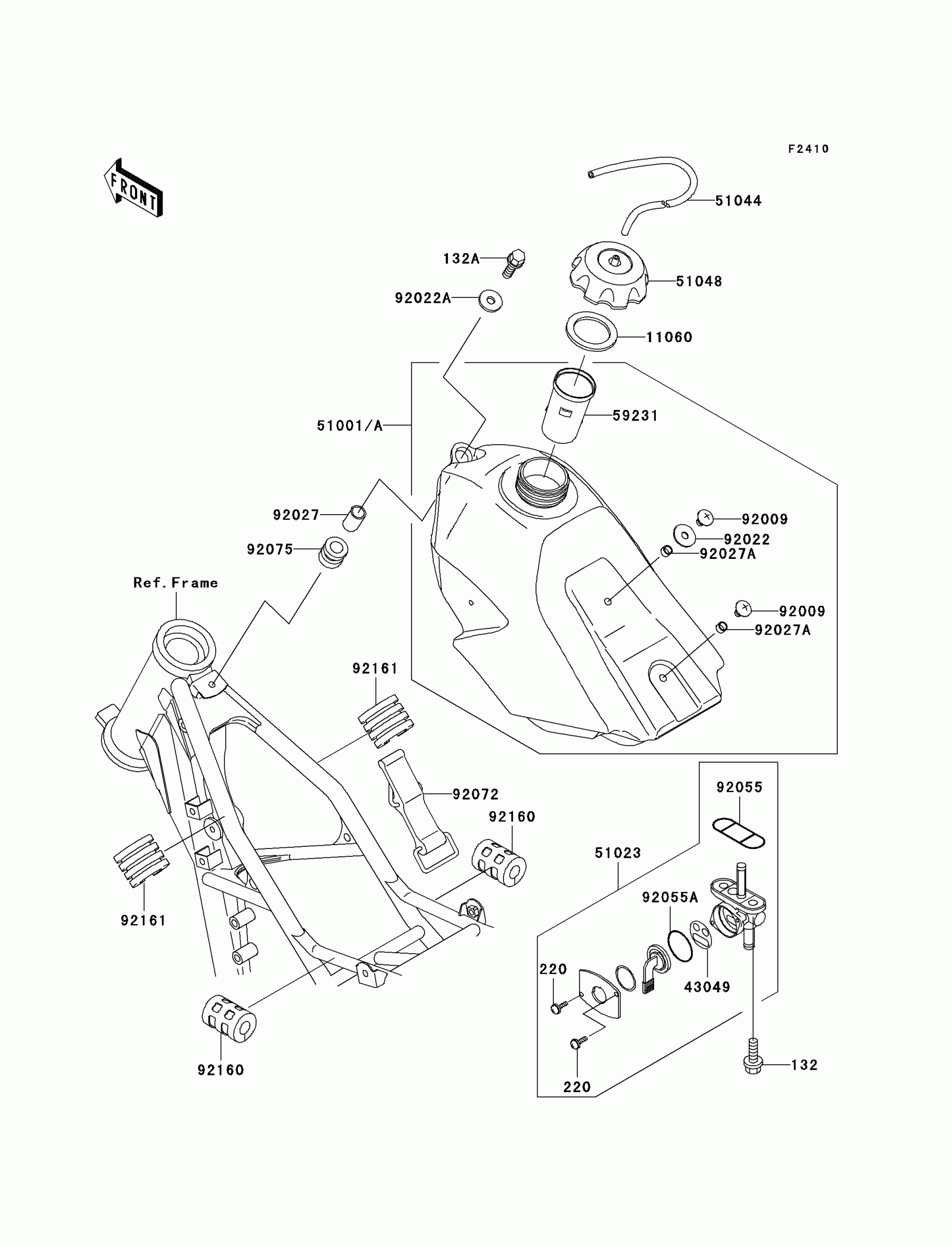

Kawasaki KX100 Fuel Tank Diagram

BOLT-FLANGED-SMALL

BOLT-FLANGED-SMALL

SCREW-PAN-CROS,3X8

GASKET,FUEL TANK CAP

PACKING,TAP VALVE

TANK-COMP-FUEL,F.BLACK

TAP-ASSY,FUEL

TUBE-ASSY

CAP-ASSY-TANK,FUEL

FILLER

SCREW,6X10

WASHER,PLAIN,6.5X20X1

WASHER,6.5X24X2

COLLAR,6.8X10X14

COLLAR,6.2X7.8X5

RING-O,FUEL TAP PACKING

RING-O,TAP LEVER

BAND,FUEL TANK

DAMPER

DAMPER,FUEL TANK

DAMPER,FUEL TANK
