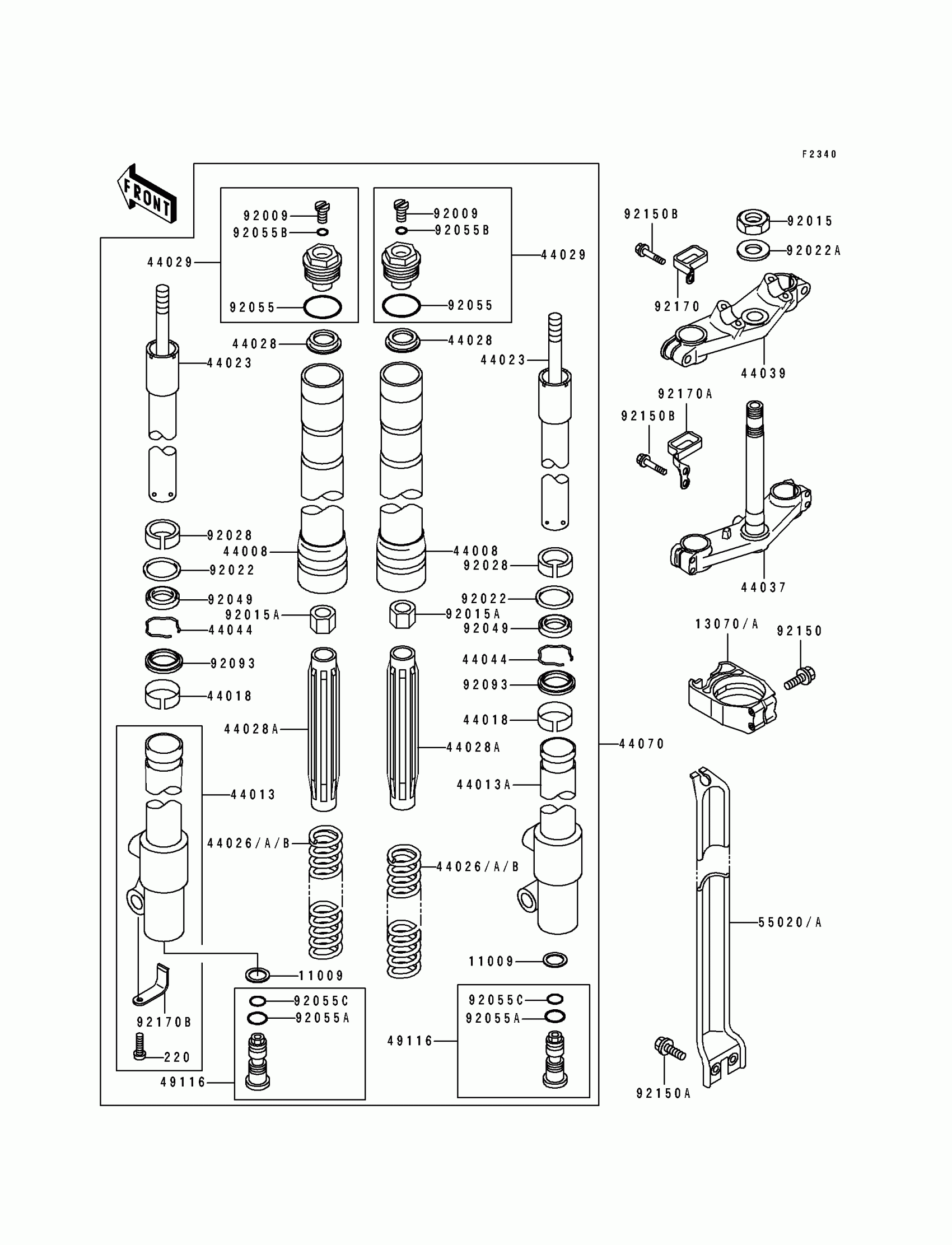

Kawasaki KX100 Front Fork(KX100-B5/B6) Diagram
#
11009
GASKET,FORK CYLINDER BOLT
11009-1592
$6.16
13070
GUIDE,FORK,J.S.VIOLET
13070-1253-RE
Unavailable
44008
PIPE-FORK OUTER
44008-1019
Unavailable
44013
PIPE-FORK INNER,LH
44013-1361
Unavailable
44013A
PIPE-FORK INNER,RH
44013-1362
$410.44
44018
PISTON-FORK
44018-1058
$21.36
44023
CYLINDER-COMP-FORK
44023-1089
$232.56
44026
SPRING-FRONT FORK,K=0.29
44026-1507
$60.49
44026A
SPRING-FRONT FORK,K=0.28
44026-1514
$60.49
44026B
SPRING-FRONT FORK,K=0.30
44026-1515
$60.49
44028
GUIDE-FORK SPRING
44028-1085
Unavailable
44028A
GUIDE-FORK SPRING
44028-1090
$40.90
44029
SEAT-FORK SPRING
44029-1152
$67.65
44037
HOLDER-FORK UNDER
44037-1294
Unavailable
44039
HOLDER-FORK UPPER
44039-1221
$186.23
44044
RING-SNAP
44044-015
$14.94
44070
DAMPER-ASSY,FORK
44070-5158
Unavailable
49116
VALVE-ASSY,FORK
49116-1110
Unavailable
55020
GUARD,FORK,J.S.VIOLET
55020-1405-RE
Unavailable
92009
SCREW
92009-1568
$7.21
92015
NUT,STEERING STEM,22MM
92015-1653
$16.69
92015A
NUT
92015-1839
$19.64
92022
WASHER,FRONT FORK
92022-1275
$7.34
92022A
WASHER,STEERING STEM
92022-1873
$7.45
92028
BUSHING
92028-1656
$16.18
92049
SEAL-OIL,FORK OUTER TUBE
92049-1394
$19.64
92055
RING-O
92055-1123
$6.22
92055A
RING-O
92055-1156
$1.42
92055B
RING-O,2.8X6.6X1.9
92055-1441
$4.33
92055C
RING-O,FORK VALVE
92055-1502
$7.45
92093
SEAL,FORK OUTER TUBE
92093-1333
$22.90
92150
BOLT,5X35
92150-1270
$5.84
92150A
BOLT,6X14
92150-1340
$5.07
92150B
BOLT,FLANGED,8X35
92150-1499
$5.50
92170
CLAMP,CABLE
92170-1264
Unavailable
92170A
CLAMP,CABLE
92170-1265
Unavailable
92170B
CLAMP
92170-1298
Unavailable
220
SCREW PAN HEAD 5X10
220B0510
$0.69
