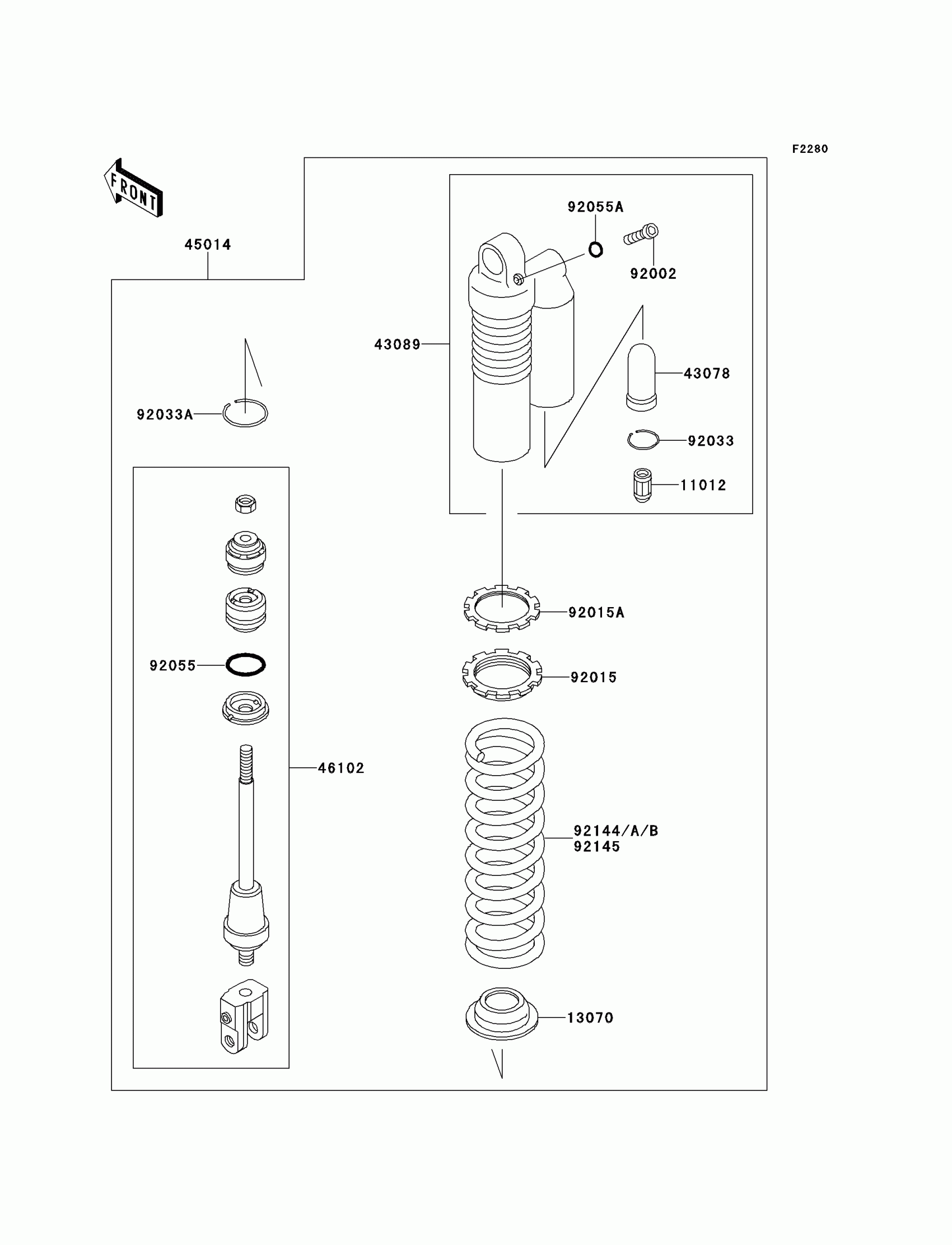

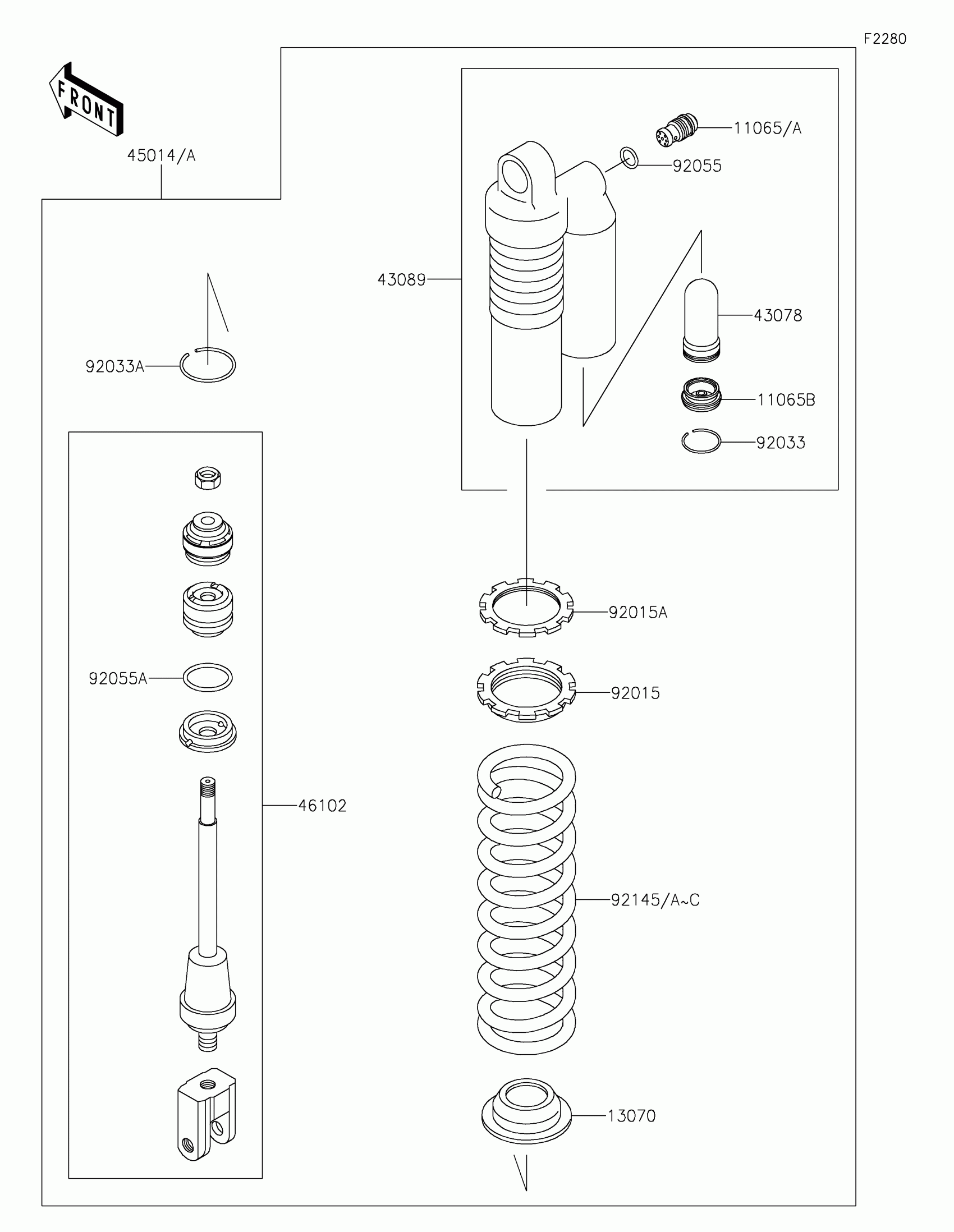

Kawasaki KX™85 Shock Absorber(s) Diagram

Description

Price

11065A

CAP,SILVER

11065-0824-KX

$152.77

11065B

CAP,RESERVOIR

11065-1310

$36.14

13070

GUIDE,SPRING

13070-1233

$33.90

43078

RESERVOIR

43078-0568

$82.62

43089

CYLINDER-SHOCKABSORBER,A.BLACK

43089-0029-499

$484.06

45014A

SHOCKABSORBER,BLACK+BLK+SIL

45014-0561-52U

$949.95

46102

ROD

46102-0618

$660.68

92015

NUT,SPRING ADJUST

92015-1679

$35.12

92015A

NUT,SPRING ADJUST LOCK

92015-1713

$35.12

92033

RING-SNAP,REARSHOCK

92033-1091

$4.96

92033A

RING-SNAP,SHOCKABSORBER

92033-1211

$4.26

92055

RING-O

92055-0786

$4.20

92055A

RING-O,ROD

92055-1334

$7.34

92145

SPRING,SHOCK,K=47N/MM,BLACK

92145-0954-10

$329.39

92145A

SPRING,SHOCK,K=43N/MM,BLACK

92145-0955-10

Unavailable

92145B

SPRING,SHOCK,K=45N/MM,BLACK

92145-0956-10

$345.05

92145C

SPRING,SHOCK,K=49N/MM,BLACK

92145-0957-10

$345.05
