Description

Price

670

O RING

670E3034

$7.98

11060

GASKET,EXHAUST HOLDER

11060-1842

$7.20

18020

BAFFLE

18020-1272

$129.28

18046

WOOL

18046-1559

$57.91

18100

BODY-ASSY-MUFFLER

18100-0016

$204.89

18120

CHAMBER-EXHAUST

18120-1114

$322.18

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,6.5X22X1.6

92022-237

$3.92

92027

COLLAR 6.8X10X10.5

92027-120

$5.00

92055

RING-O,BAFFLE PIPE

92055-1461

$7.34

92075

DAMPER

92075-1598

$8.58

92093

SEAL,MUFFLER JOINT

92093-1200

$43.27

92145

SPRING,EXHAUST CONNECTING

92145-1340

$13.43

92151

BOLT,6X12

92151-1133

Unavailable

92151A

BOLT,FLANGED,6X10

92151-1822

$1.74

92153

BOLT,FLANGED WP,6X14

92153-1007

$4.80

92153A

BOLT,FLANGED WP,6X25

92153-1008

$2.63

92160

DAMPER,MUFFLER,FR

92160-1176

$28.25

92160A

DAMPER

92160-1913

$2.67

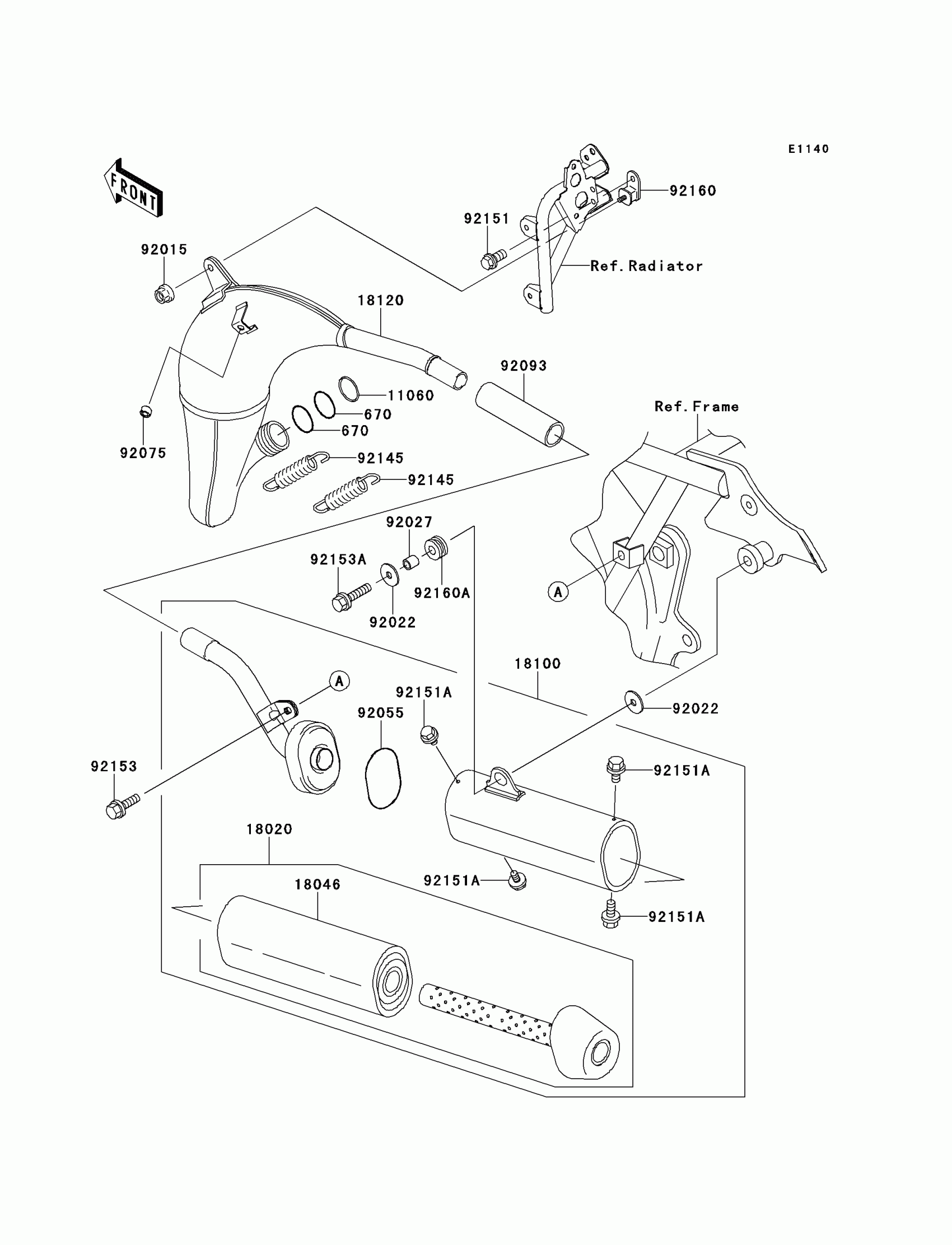

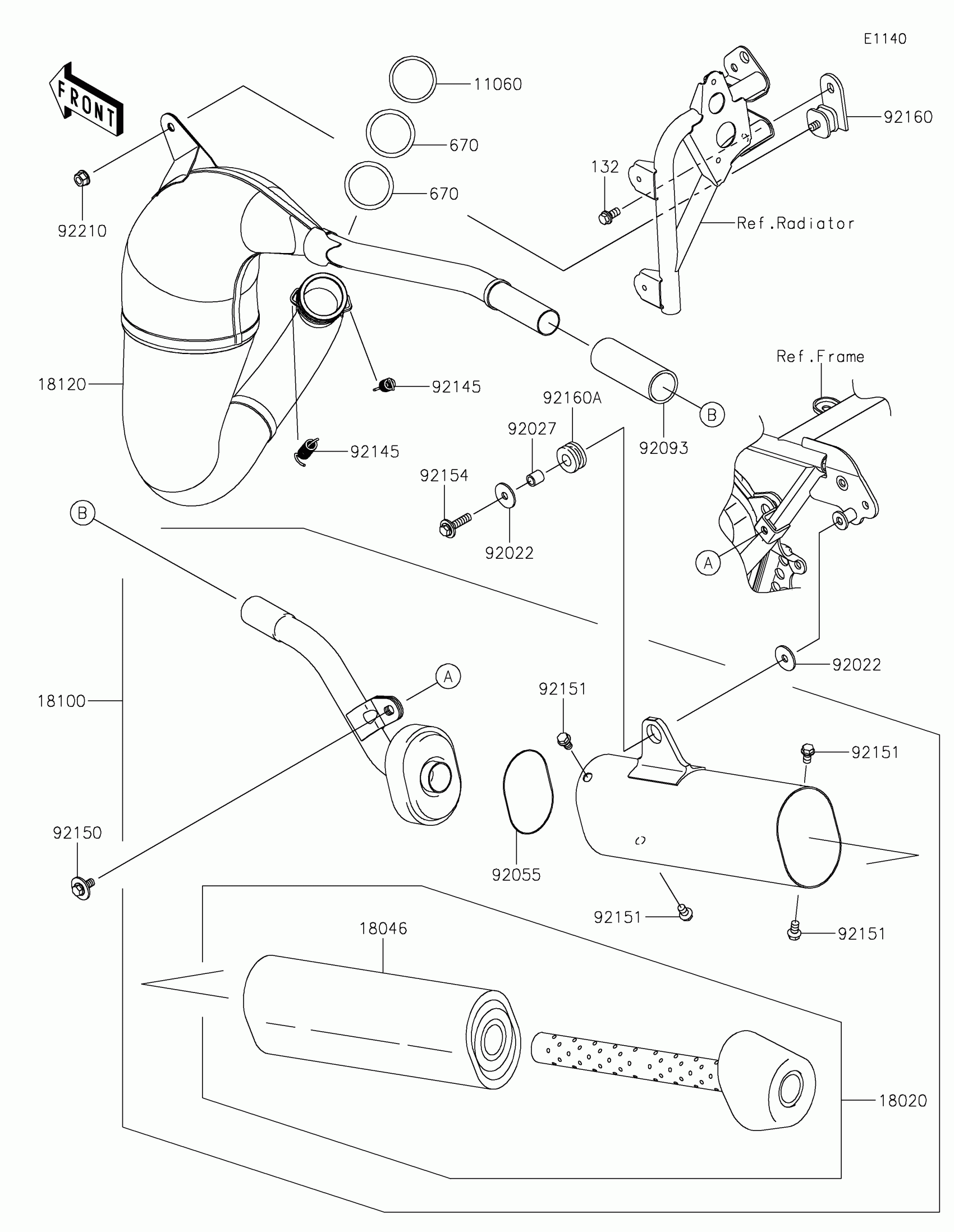

Kawasaki KX™85 Muffler(s) Diagram

O RING

GASKET,EXHAUST HOLDER

BAFFLE

WOOL

BODY-ASSY-MUFFLER

CHAMBER-EXHAUST

NUT,FLANGED,6MM

WASHER,6.5X22X1.6

COLLAR 6.8X10X10.5

RING-O,BAFFLE PIPE

DAMPER

SEAL,MUFFLER JOINT

SPRING,EXHAUST CONNECTING

BOLT,6X12

BOLT,FLANGED,6X10

BOLT,FLANGED WP,6X14

BOLT,FLANGED WP,6X25

DAMPER,MUFFLER,FR

DAMPER
