Description

Price

132

BOLT-FLANGED-SMALL,8X30

132BC0830

$3.90

214

SCREW-PAN+-,5X18

214AB0518

$2.61

222

SCREW-CSK-RD-CROS,4X12

222AB0412

$2.65

311

NUT-HEX

311AA0500

$0.47

13070

GUIDE,THROTTLE

13070-0083

$7.69

13091

HOLDER,CLUTCH LEVER

13091-1728

$51.24

14091

COVER,THROTTLE CASE,UPP

14091-0873

$8.28

27010

SWITCH,ENGINE STOP

27010-0035

$52.87

32099

CASE,THROTTLE,UPP

32099-0037

$22.01

32099A

CASE,THROTTLE,LWR

32099-0038

$18.57

39183

BAND-ASSY,SWITCH

39183-1059

$13.02

46003

HANDLE,F.S.BLACK

46003-0027-18R

$88.42

46012

HOLDER-HANDLE,UPP,F.BLACK

46012-0011-21

$29.01

46019

GRIP-ASSY,THROTTLE

46019-0023

$29.91

46075

GRIP,LH

46075-0072

$14.62

46076

LEVER-ASSY-GRIP,CLUTCH

46076-1203

$40.25

46092

LEVER-GRIP,CLUTCH

46092-1165

$15.95

49006

BOOT,LEVER HOLDER

49006-1017

$18.72

49006A

BOOT,THROTTLE CASE

49006-1097

$17.98

59101

REEL,THROTTLE

59101-0003

$13.06

92009

SCREW,CABLE ADJUST,8MM

92009-1476

$18.89

92015

NUT,CABLE ADJUST LOCK,8MM

92015-1596

$8.86

92072

BAND,L=100

92072-0055

$3.90

92150

BOLT

92150-1474

$5.00

92151

BOLT,LEVER SET,5MM

92151-1103

$6.57

92170

CLAMP,LEVER HOLDER

92170-1226

$27.29

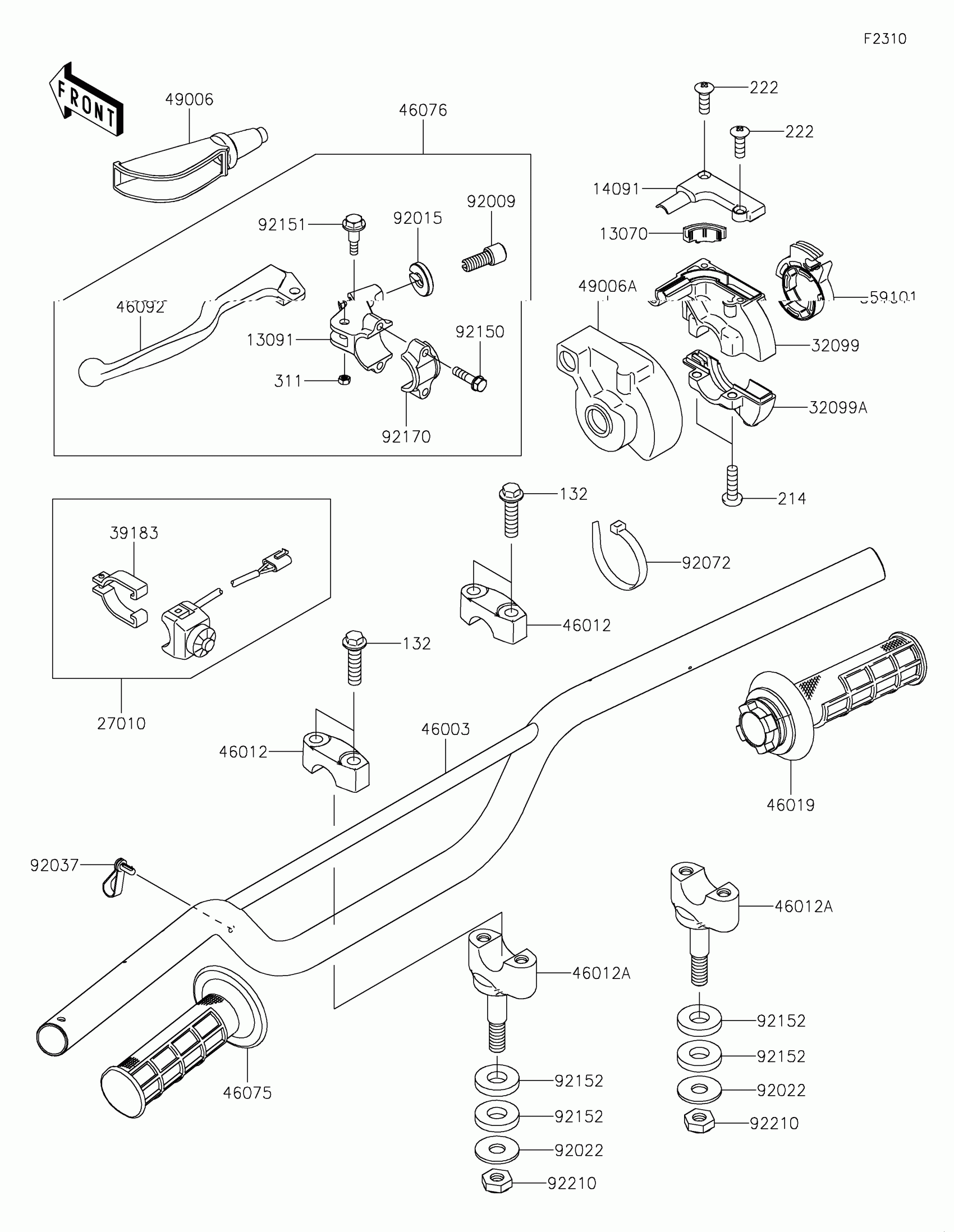

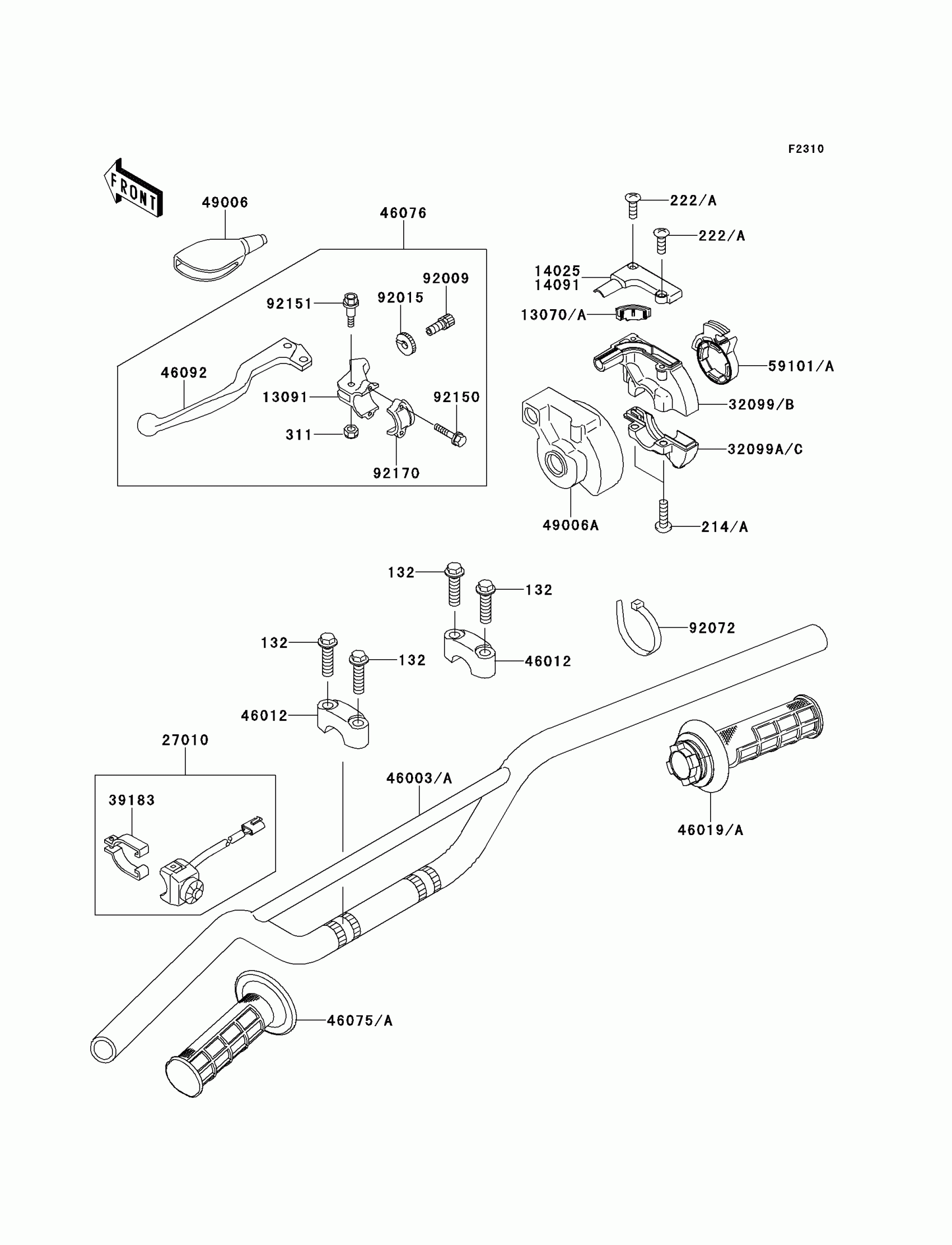

Kawasaki KX™85 Handlebar Diagram
