2013 Kawasaki KX™85 Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 2013 Kawasaki KX™85, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

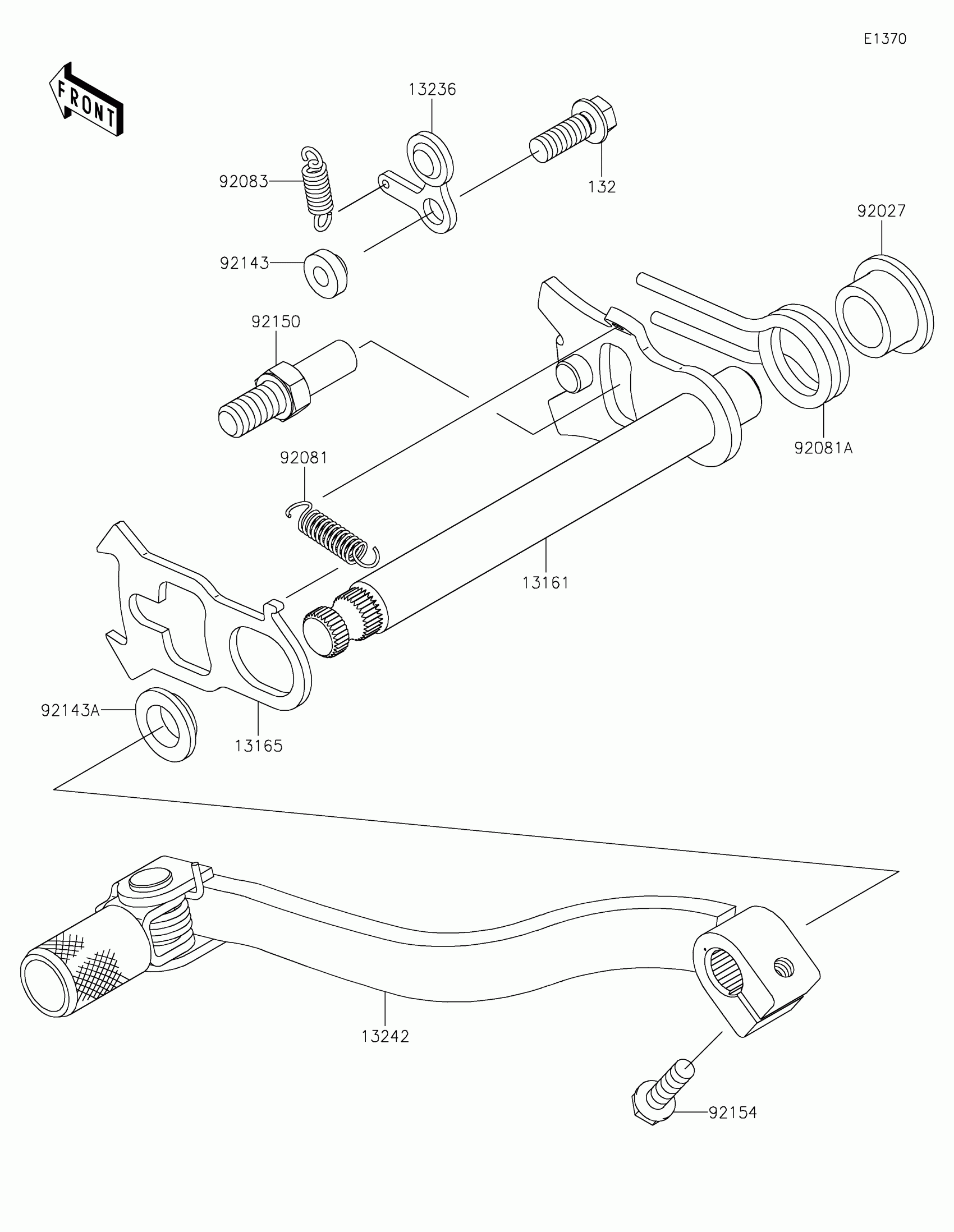

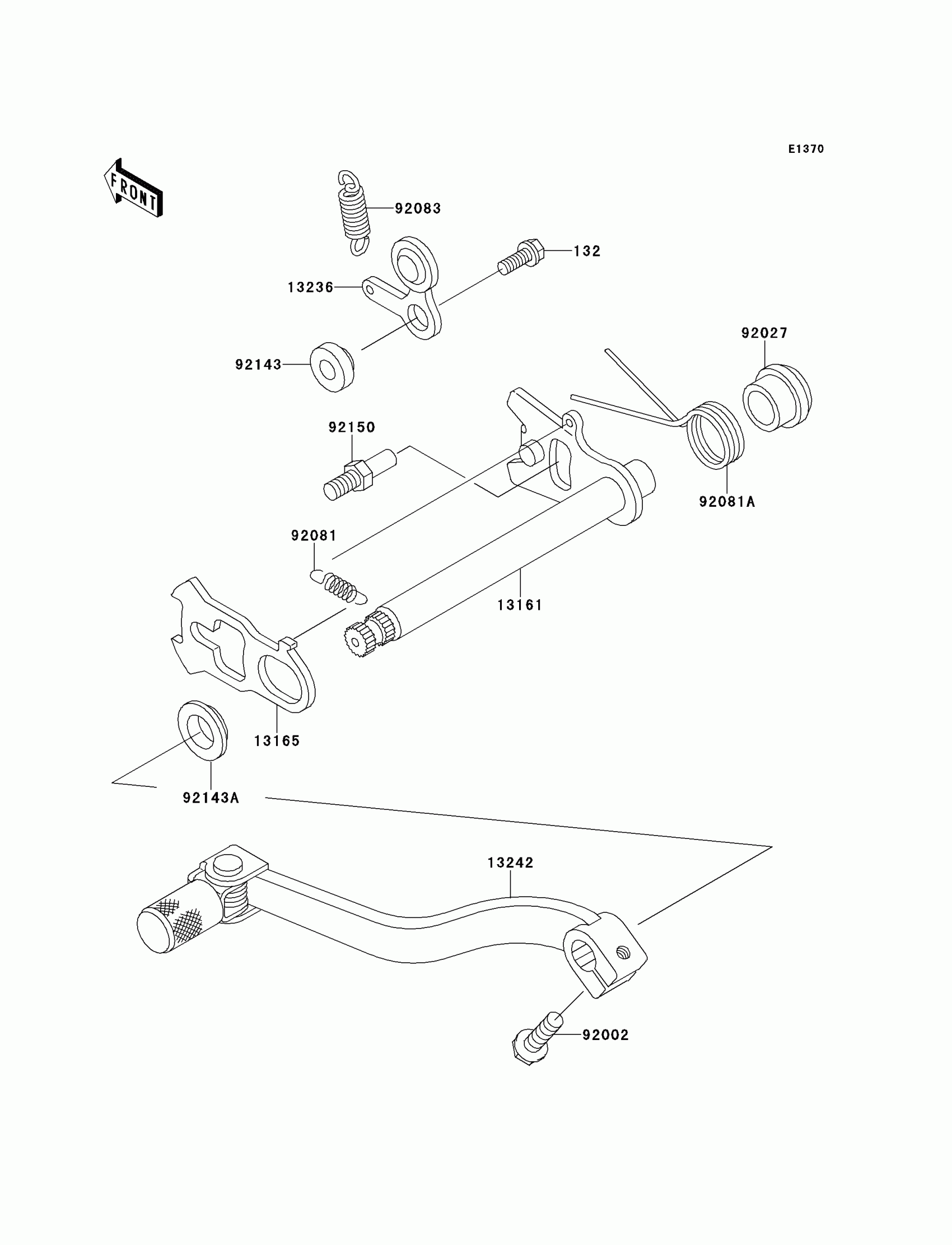

2013 Kawasaki KX™85 Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X16

132BA0616

1
Out of stock

13161

LEVER-COMP-CHANGE SHAFT

13161-1126

1
Out of stock

13165

PAWL,CHANGE LEVER

13165-1114

1
Out of stock

13236

LEVER-COMP,POSITION

13236-1152

1
Out of stock

13242

LEVER-ASSY-CHANGE,PEDAL

13242-1286

1
Out of stock

92002

BOLT,6X20

92002-1237

1
Out of stock

92027

COLLAR

92027-1940

1
Out of stock

92081

SPRING,CHANGE LEVER

92081-076

1
Out of stock

92081A

SPRING,CHANGE SHAFT RETURN

92081-1716

1
Out of stock

92083

SPRING,CHANGE DRUM LEVER

92083-012

1
Out of stock

92143

COLLAR

92143-1055

1
Out of stock

92143A

COLLAR

92143-1995

1
Out of stock

92150

BOLT,RETURN SPRING

92150-1467

1
Out of stock
