2013 Kawasaki KX™85 Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2013 Kawasaki KX™85, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

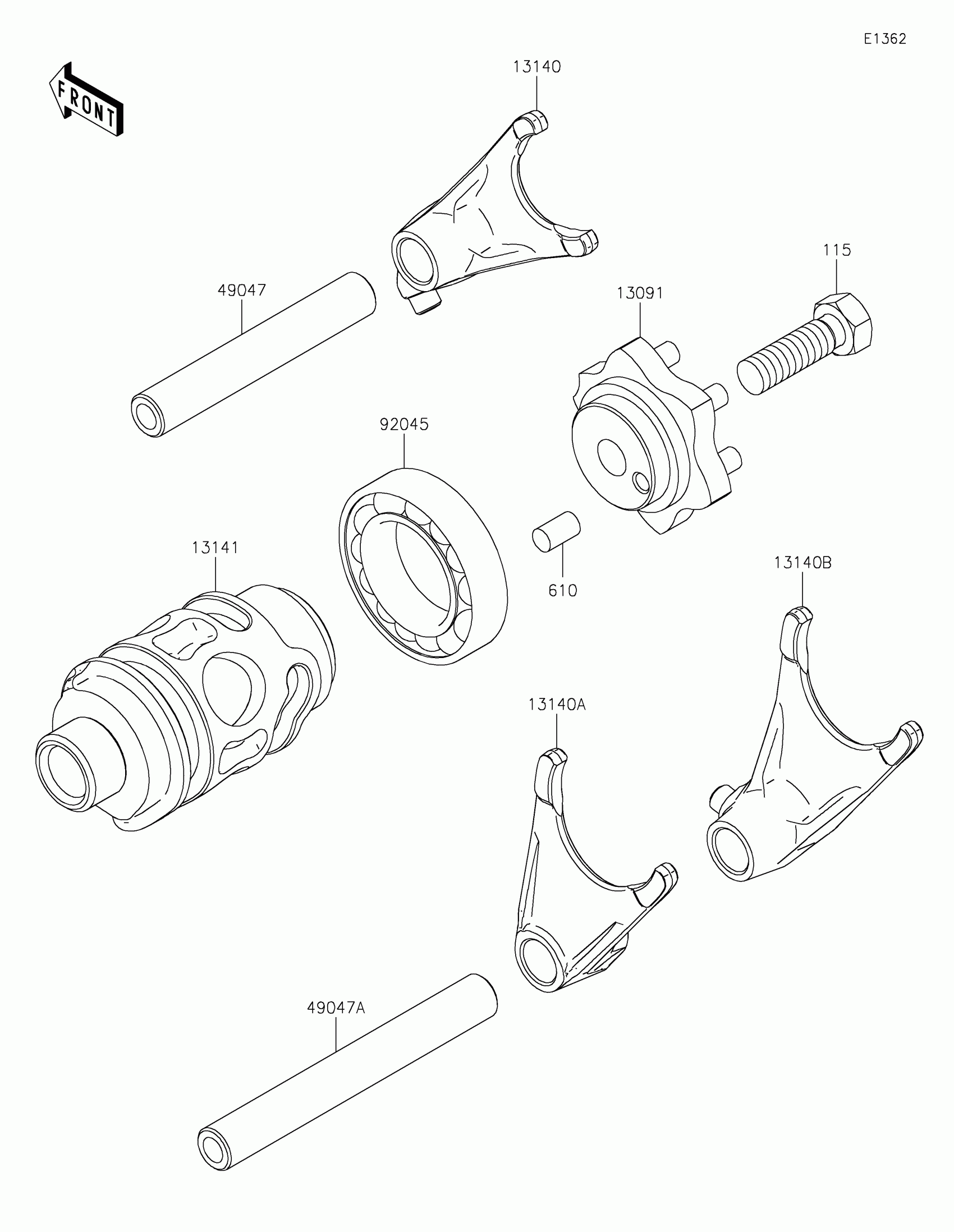

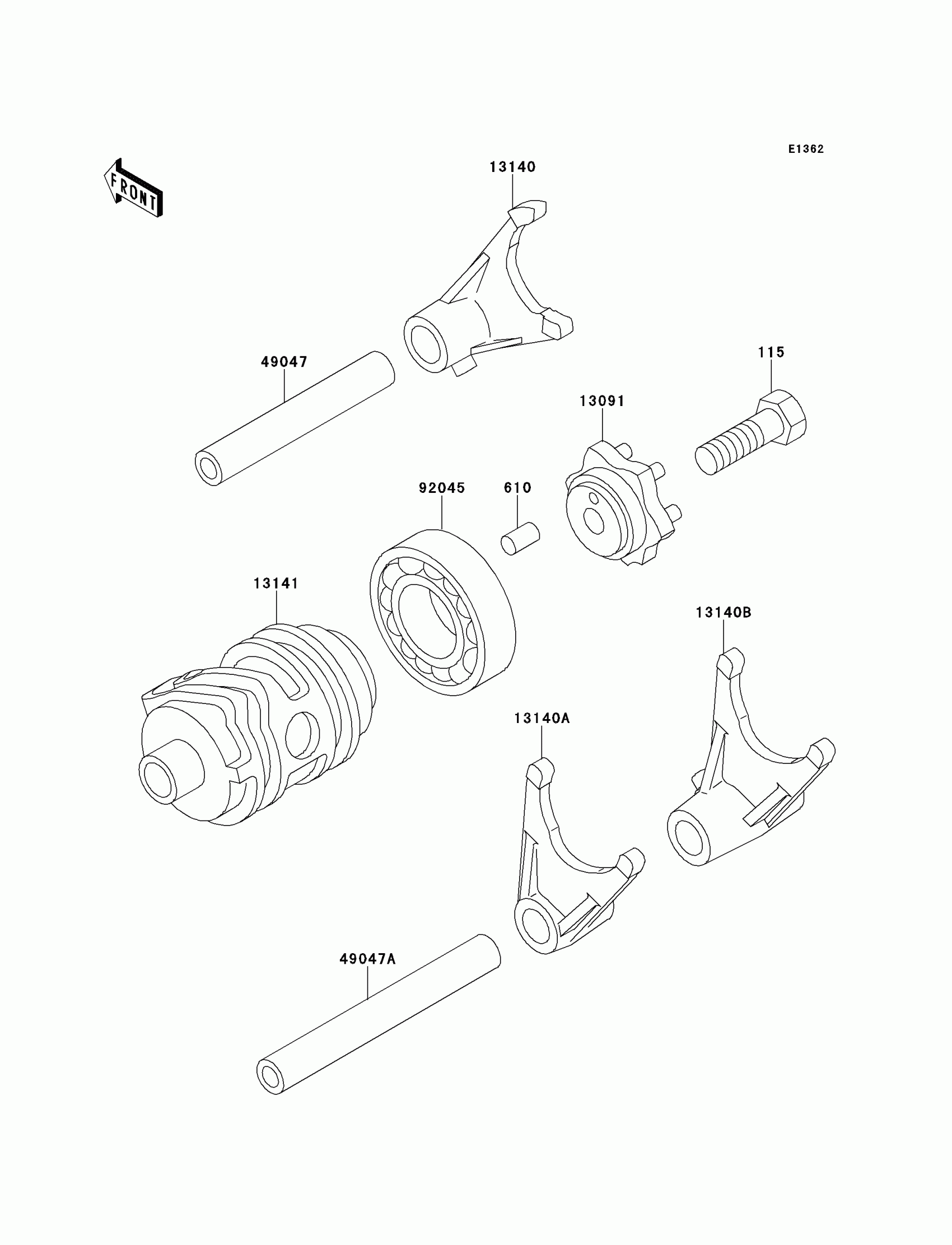

2013 Kawasaki KX™85 Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

115

BOLT-SMALL-UPSET,8X25

115BA0825

1
Out of stock

610

ROLLER,4X8

610A0408

1
Out of stock

13091

HOLDER,CHANGE DRUM

13091-1390

1
Out of stock

13140

FORK-SHIFT,5TH&6TH

13140-1302

1
Out of stock

13140A

FORK-SHIFT,2ND&3RD

13140-1303

1
Out of stock

13140B

FORK-SHIFT,LOW&4TH

13140-1304

1
Out of stock

13141

DRUM-CHANGE

13141-1120

1
Out of stock

49047

ROD-SHIFT,5.9X10X64.5

49047-1063

1
Out of stock

49047A

ROD-SHIFT,5.9X10X81

49047-1064

1
Out of stock

92045

BEARING-BALL,6905Z

92045-1058

1
Out of stock
