2013 Kawasaki KX™85 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2013 Kawasaki KX™85, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

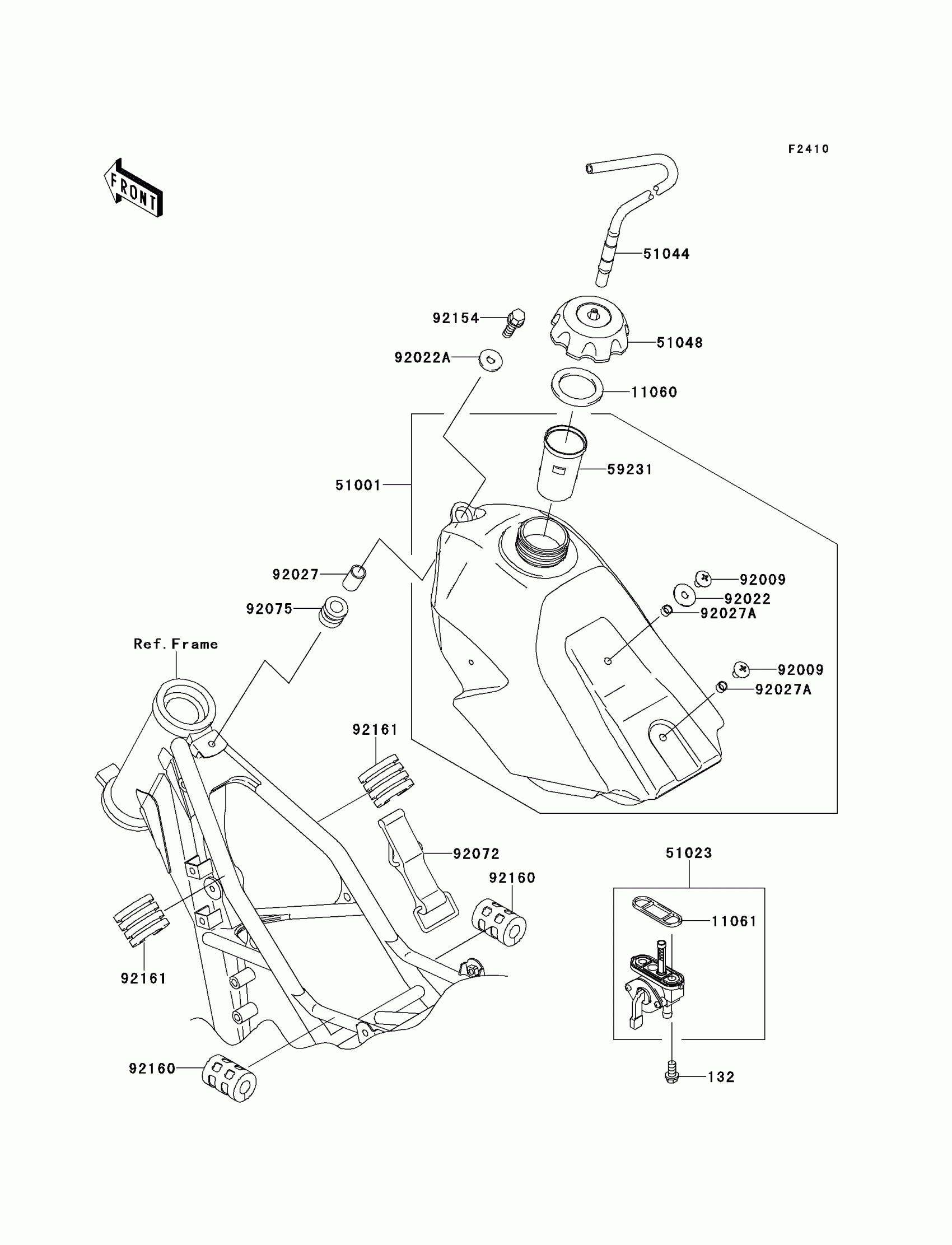

2013 Kawasaki KX™85 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$1.12

In stock

11060

1

$4.88

In stock

11061

GASKET,FUEL TAP

11061-0181

1

$5.01

In stock

51001

TANK-COMP-FUEL,F.BLACK

51001-1677-6Z

1

$545.31

In stock

51023

TAP-ASSY,FUEL

51023-0024

1

$65.63

In stock

51044

TUBE-ASSY

51044-0025

1

$18.44

In stock

51048

CAP-ASSY-TANK,FUEL

51048-0014

1

$49.08

In stock

59231

FILLER

59231-1096

1

$5.37

In stock

92009

SCREW,6X10

92009-1530

1
Out of stock

92022

1

$3.29

In stock

92022A

WASHER,6.5X24X2

92022-1690

1

$3.12

In stock

92027

COLLAR,6.8X10X14

92027-1966

1

$4.42

In stock

92027A

COLLAR,6.2X7.8X5

92027-2096

1

$0.53

In stock

92072

BAND,FUEL TANK

92072-1229

1

$10.09

In stock

92075

DAMPER

92075-1787

1

$5.21

In stock

92154

BOLT,FLANGED,6X25

92154-0520

1

$2.68

In stock

92160

DAMPER,FUEL TANK

92160-1236

1

$16.98

In stock

92161

DAMPER,FUEL TANK

92161-1175

1

$4.98

In stock
