2013 Kawasaki KX™85 Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2013 Kawasaki KX™85, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

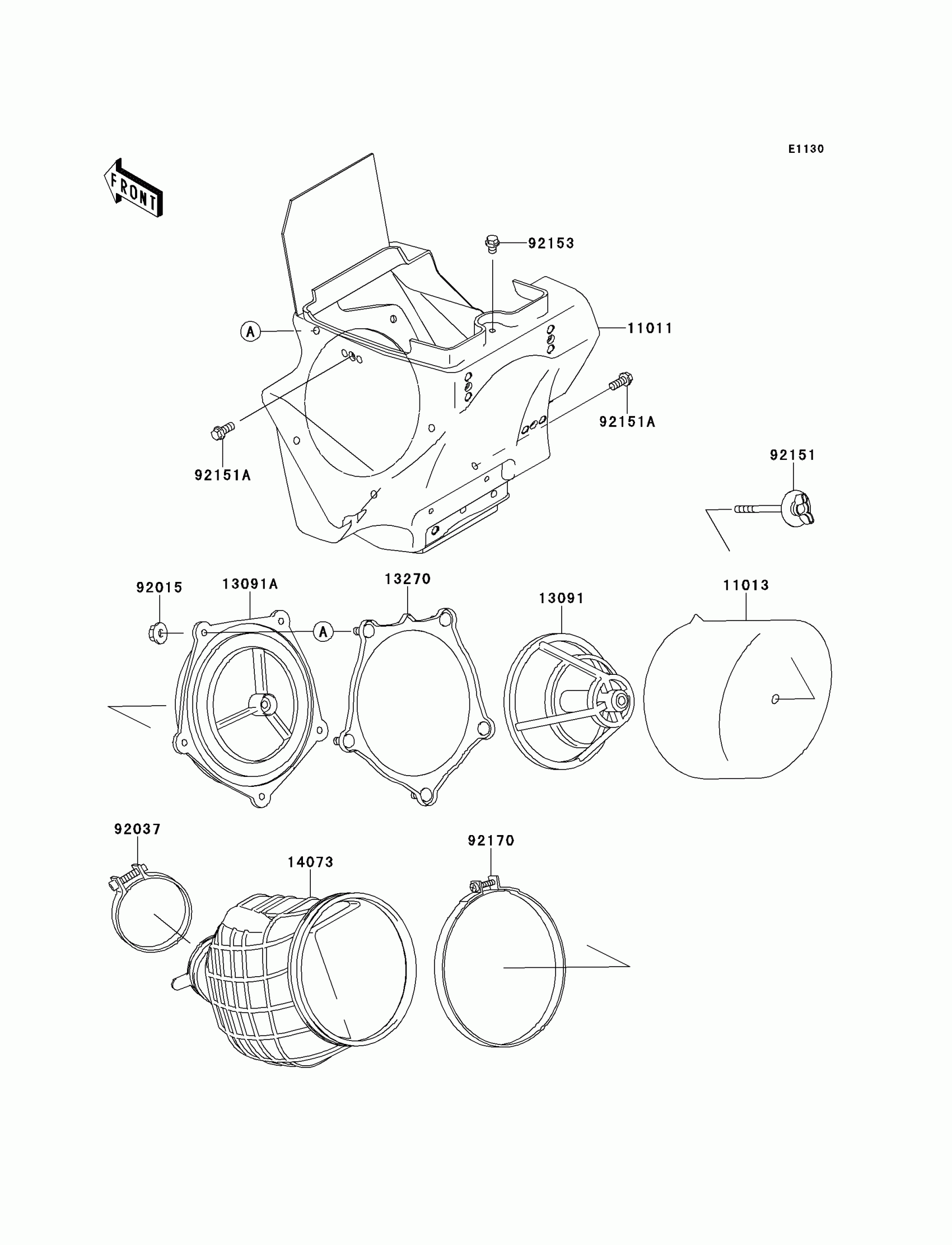

2013 Kawasaki KX™85 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11011

CASE-AIR FILTER

11011-1612

1

$134.84

In stock

11013

ELEMENT-AIR FILTER

11013-1271

1

$26.86

In stock

13091

HOLDER,ELEMENT

13091-1696

1

$26.56

In stock

13091A

HOLDER

13091-1697

1

$32.80

In stock

13270

PLATE,AIR FILTER

13270-1905

1
Out of stock

14073

DUCT

14073-1785

1

$34.54

In stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92037

CLAMP,55MM

92037-1486

1

$6.88

In stock

92151

BOLT,AIR FILTER

92151-1256

1

$7.30

In stock

92151A

BOLT,6X14

92151-1423

1

$0.88

In stock

92153

BOLT,6X8

92153-0860

1
Out of stock

92170

CLAMP,126MM

92170-1194

1

$20.66

In stock
← Radiator Carburetor →

More Air & Fuel diagrams
