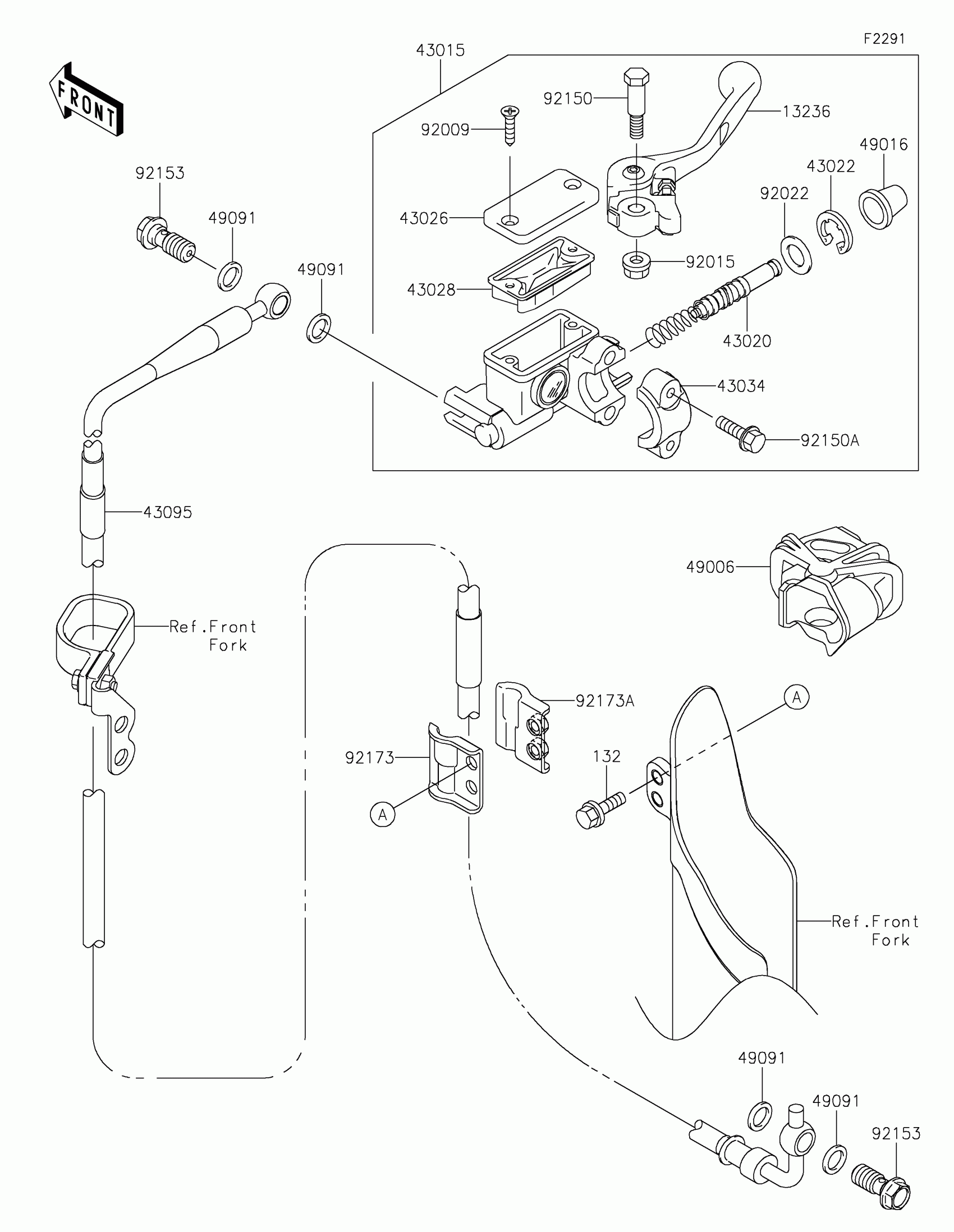

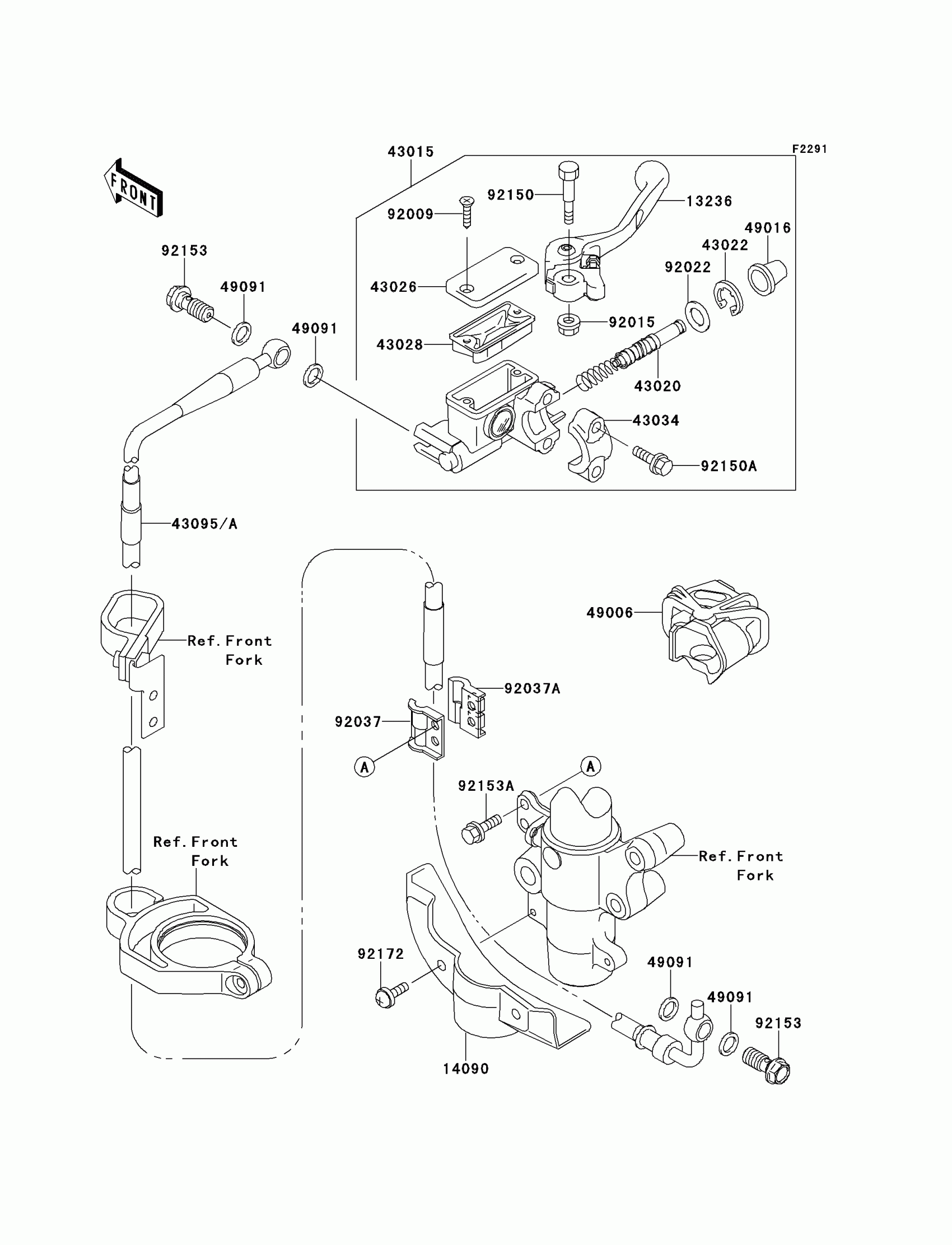

Kawasaki KX™85 Front Master Cylinder Diagram

Description

Price

13236

LEVER-COMP,FRONT BRAKE

13236-1346

$29.86

14090

COVER,BRAKE HOSE,BLACK

14090-1860-6D

$12.17

43015

CYLINDER-ASSY-MASTER,FR

43015-0145

Unavailable

43020

PISTON-COMP-BRAKE

43020-1123

Unavailable

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE,MASTER CYLINDER

43026-0020

$15.20

43028

DIAPHRAGM

43028-1067

$14.12

43034

HOLDER-BRAKE

43034-1110

$14.67

43095

HOSE-BRAKE,FR

43095-0667

$96.13

49006

BOOT,FRONT BRAKE LEVER

49006-0078

$10.88

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92009

SCREW,4MM

92009-1458

$2.23

92015

NUT,FLANGED,6MM

92015-1528

$4.18

92022

WASHER

92022-1814

$4.17

92037

CLAMP,BRAKE HOSE,OUTSIDE

92037-1362

$5.61

92037A

CLAMP,BRAKE HOSE,INSIDE

92037-1363

$5.61

92150

BOLT,LEVER SET

92150-1451

$10.80

92150A

BOLT

92150-1452

$4.18

92153

BOLT,OIL,L=23

92153-0627

$4.15

92153A

BOLT,6X16

92153-0695

$2.14

92172

SCREW,6X14

92172-0401

$1.81
