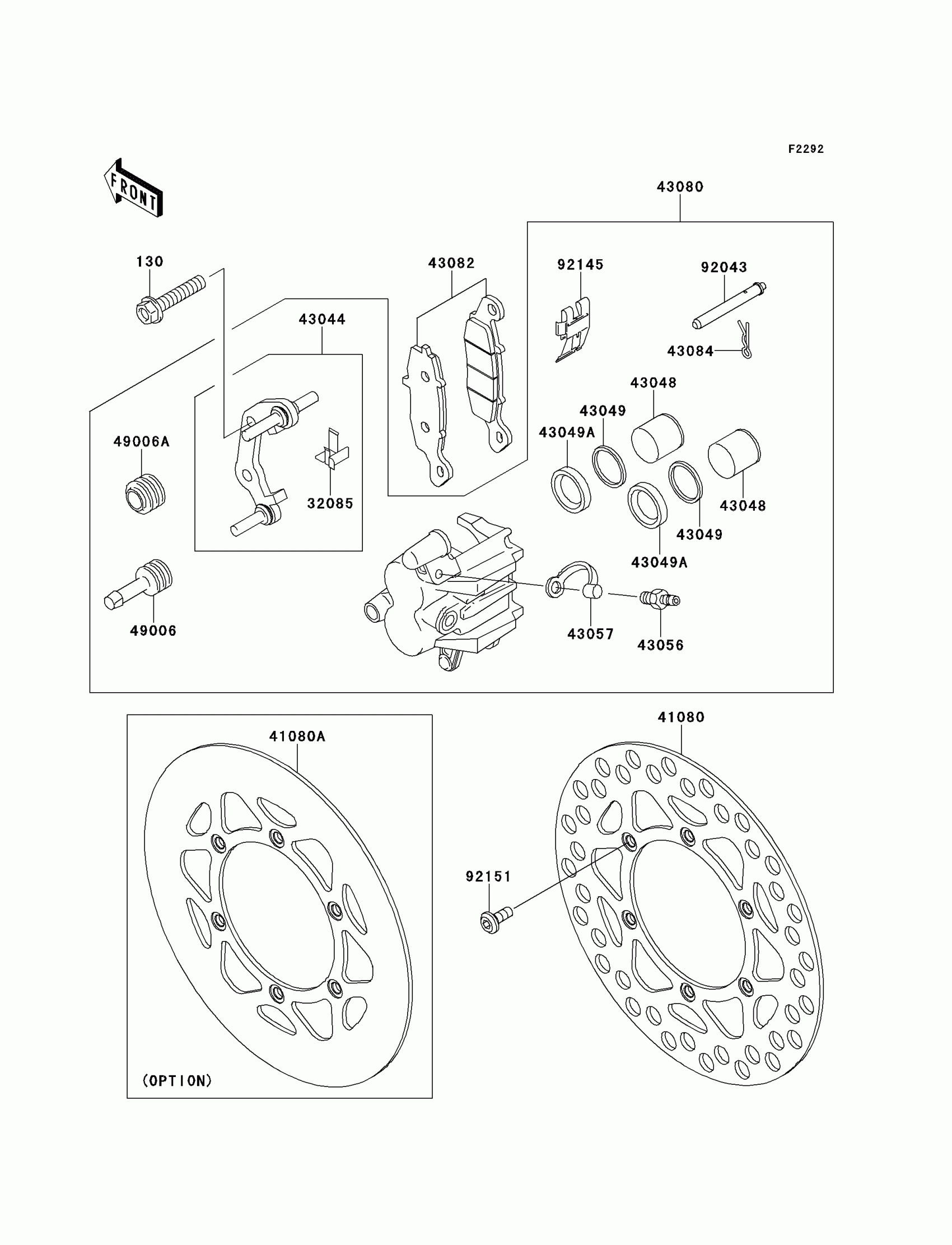

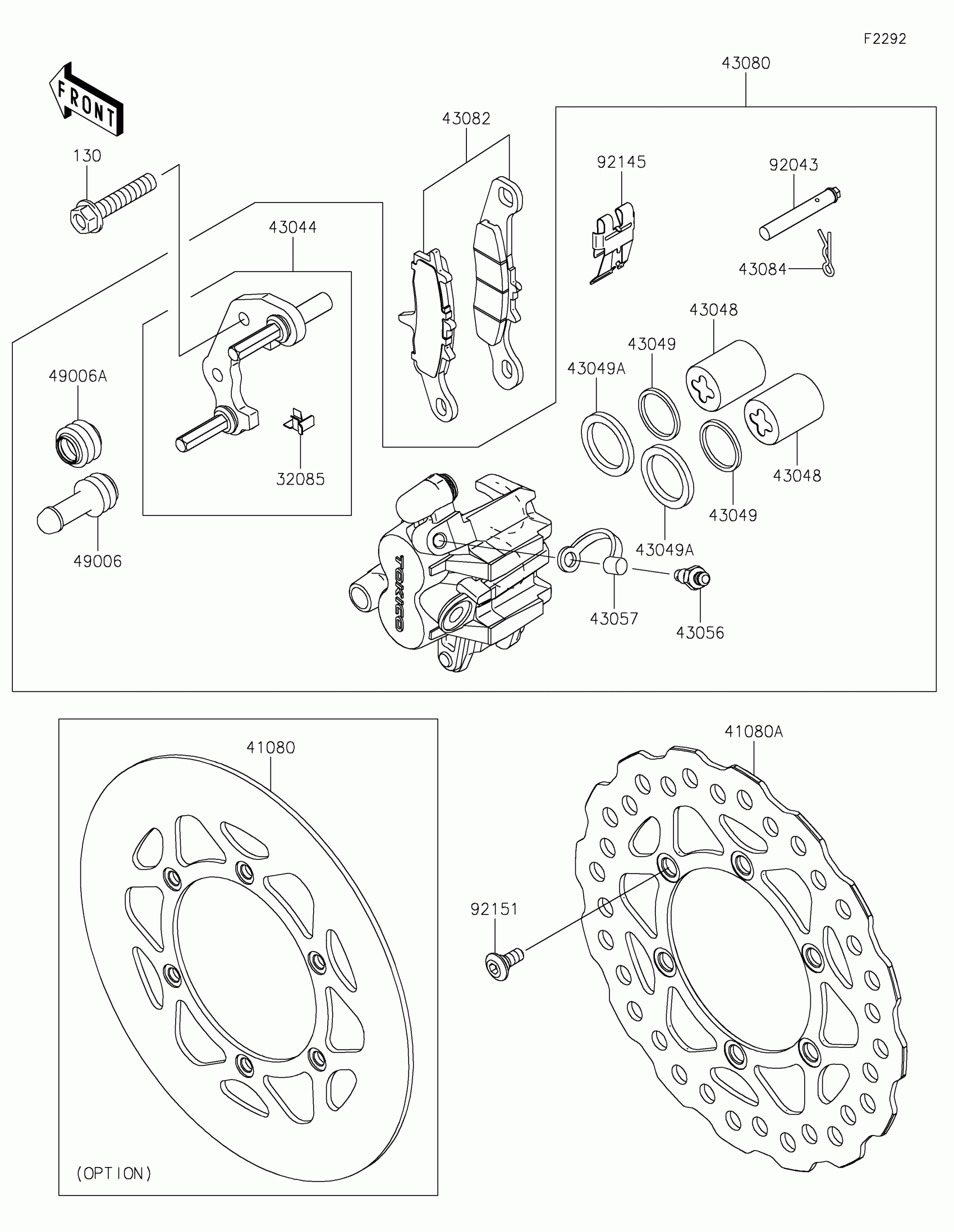

2013 Kawasaki KX™85 Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 2013 Kawasaki KX™85, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Kawasaki KX™85 Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X40

130CA0840

1

$1.29

In stock

32085

STOPPER

32085-1437

1

$12.42

In stock

41080

DISC,FR

41080-0111

1

$204.51

In stock

41080A

DISC,FR

41080-0112

1

$224.18

In stock

43044

1

$120.75

In stock

43048

PISTON-CALIPER

43048-1083

1

$51.26

In stock

43049

PACKING,PISTON

43049-1059

1

$6.75

In stock

43049A

PACKING,PISTON SEAL

43049-1090

1

$4.84

In stock

43056

BREATHER-BRAKE

43056-0007

1

$22.39

In stock

43057

CAP-BREATHER

43057-003

1

$2.02

In stock

43080

1

$175.72

In stock

43082

PAD-ASSY-BRAKE

43082-1196

1

$47.28

In stock

43084

CLAMP,PAD

43084-003

1

$3.43

In stock

49006

BOOT,CALIPER

49006-1054

1

$9.20

In stock

49006A

BOOT,CALIPER

49006-1055

1

$5.78

In stock

92043

PIN,PAD

92043-1356

1

$10.25

In stock

92145

SPRING,PAD

92145-1260

1

$14.58

In stock

92151

BOLT,DISC PLATE,6MM

92151-1799

1

$3.29

In stock
