2013 Kawasaki KX™85 Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2013 Kawasaki KX™85, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

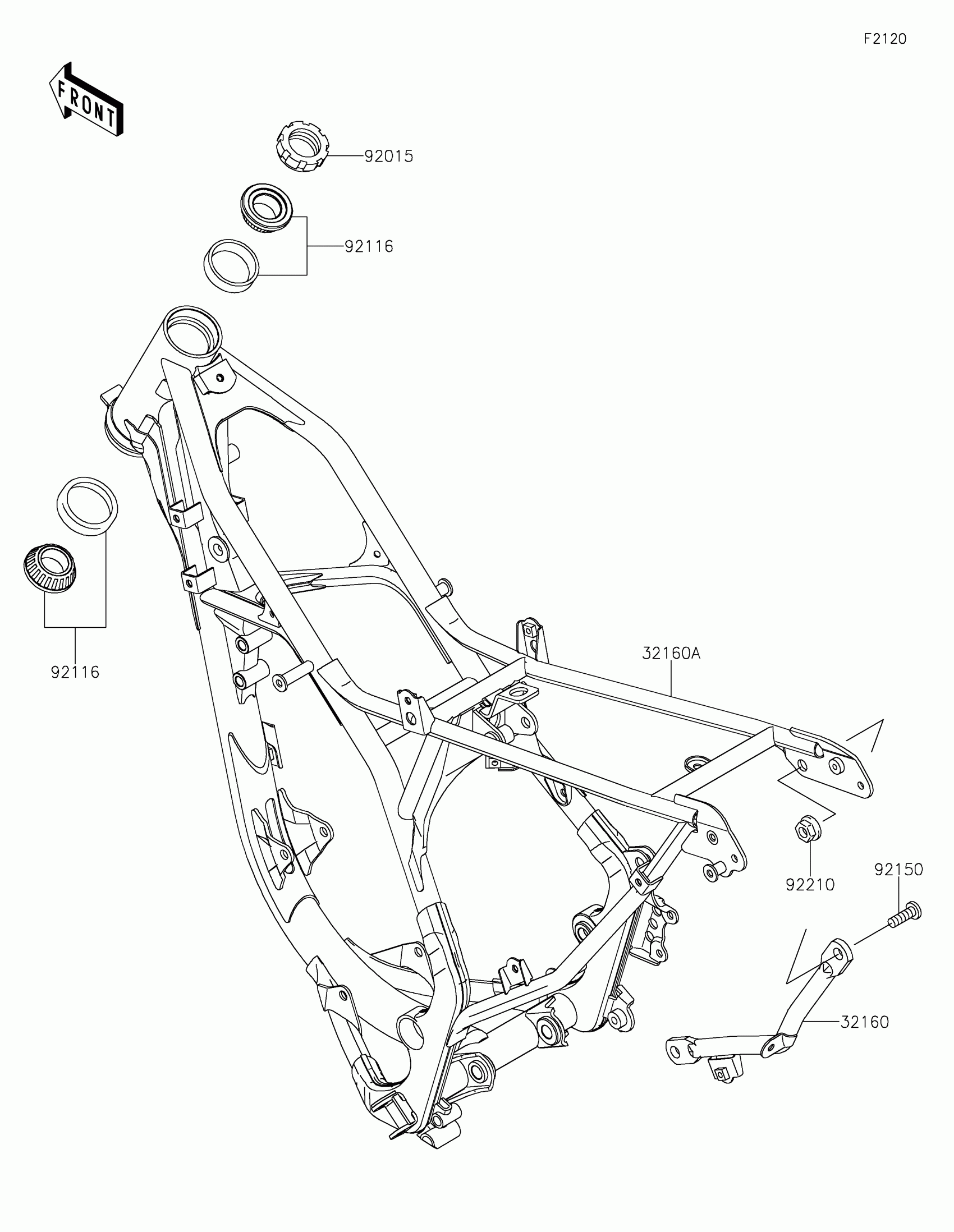

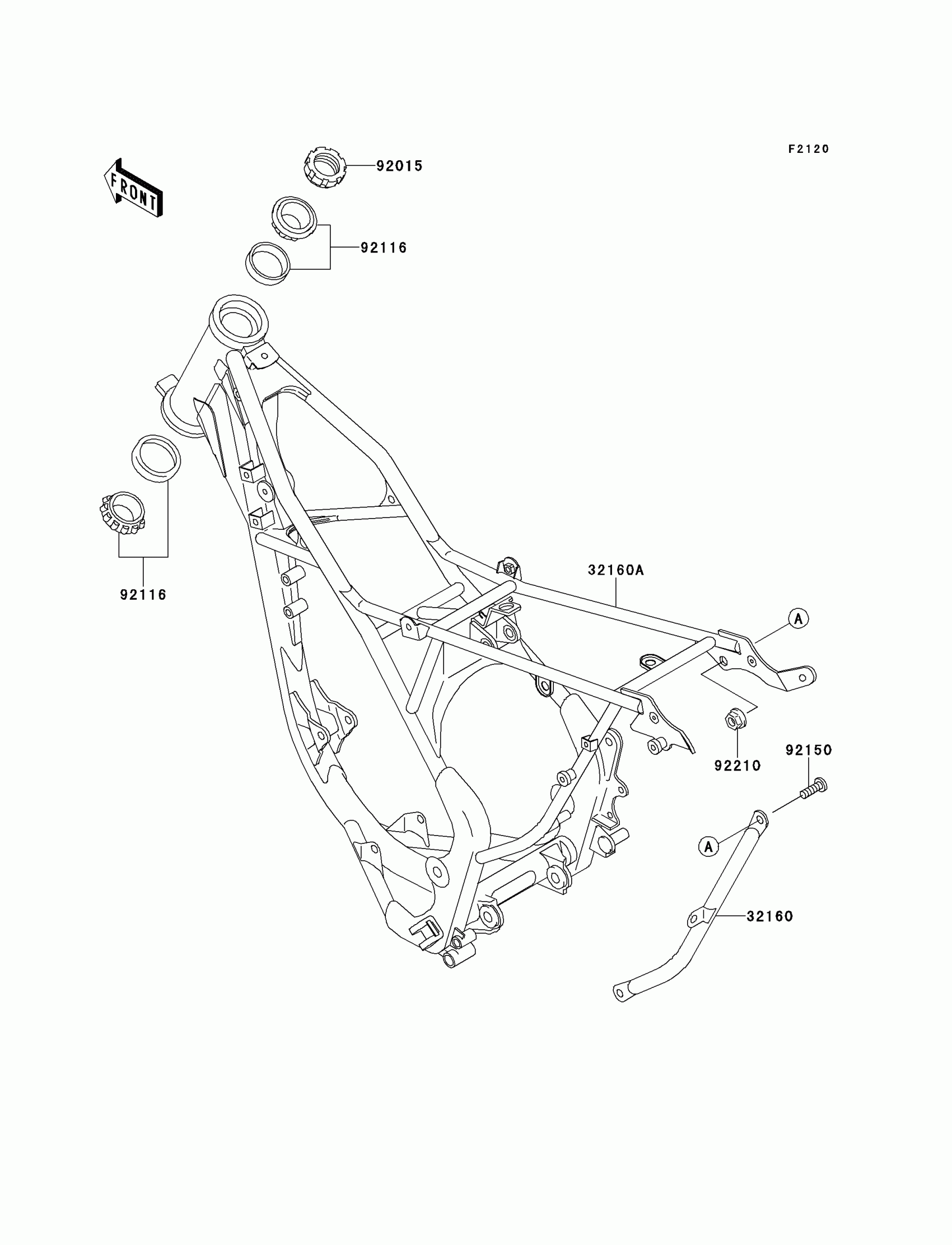

2013 Kawasaki KX™85 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32160

1

$147.67

In stock

32160A

FRAME-COMP,MAIN,F.S.BLACK

32160-1667-18R

1

$951.83

In stock

92015

1

$20.39

In stock

92116

1

$43.76

In stock

92150

BOLT,SOCKET,10X23

92150-1221

1

$4.37

In stock

92210

NUT,LOCK,FLANGED,10MM

92210-1080

1
Out of stock
← Footrests Labels →
