2013 Kawasaki KX™85 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2013 Kawasaki KX™85, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

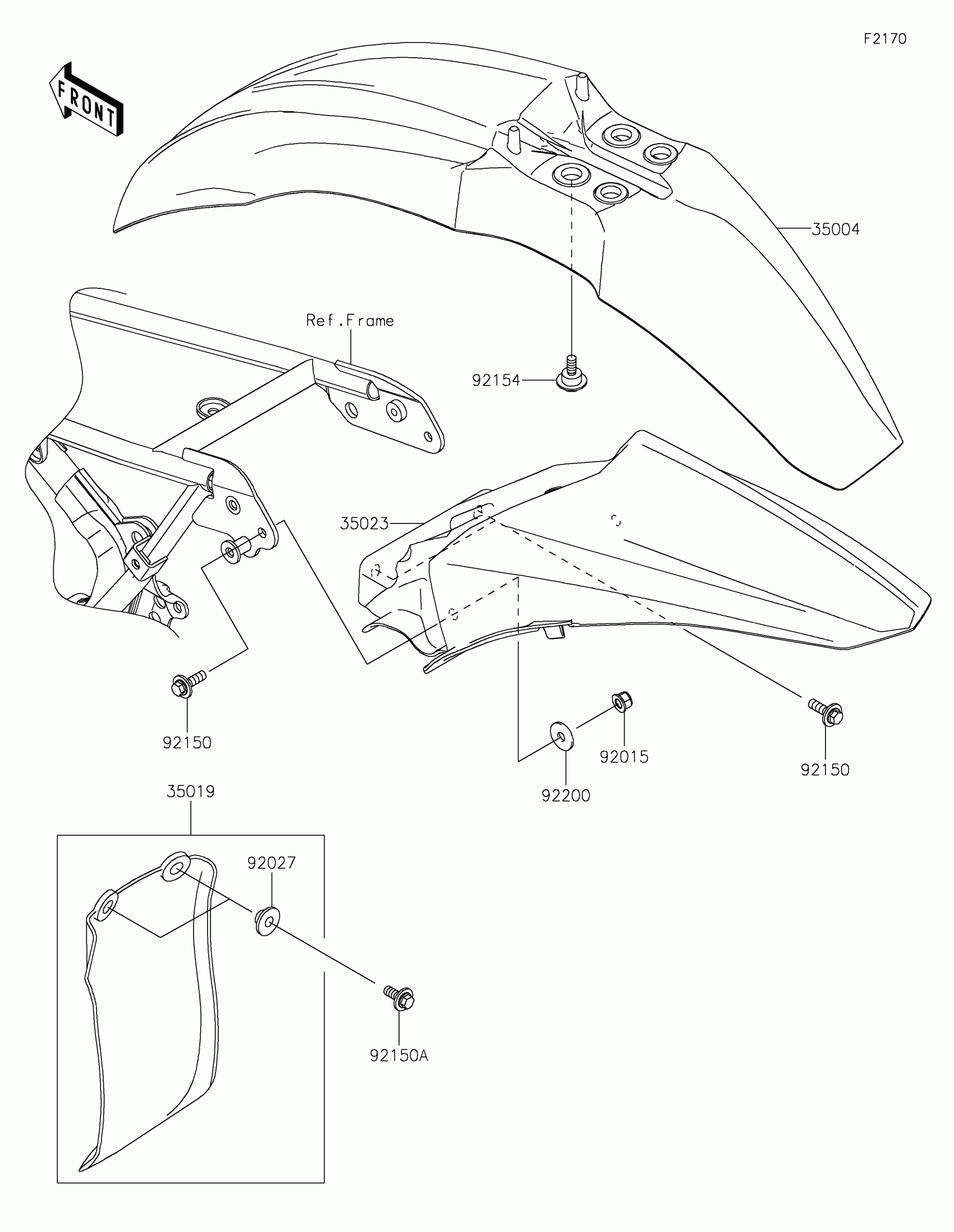

2013 Kawasaki KX™85 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004

FENDER-FRONT,L.GREEN

35004-0028-290

1

$50.32

In stock

35019

FLAP,REAR FENDER

35019-0080

1

$33.99

In stock

35022

FENDER-COMP-REAR,B.WHITE

35022-1353-266

1

$59.46

In stock

92015

1

$1.20

In stock

92022

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

92027

COLLAR

92027-1757

1

$3.72

In stock

92150

BOLT,FLANGED,6X16

92150-1506

1

$3.97

In stock

92150A

BOLT,6X20

92150-1801

1

$5.21

In stock

92152

COLLAR

92152-1255

1

$3.29

In stock

92153

BOLT,6X20

92153-0502

1
Out of stock
