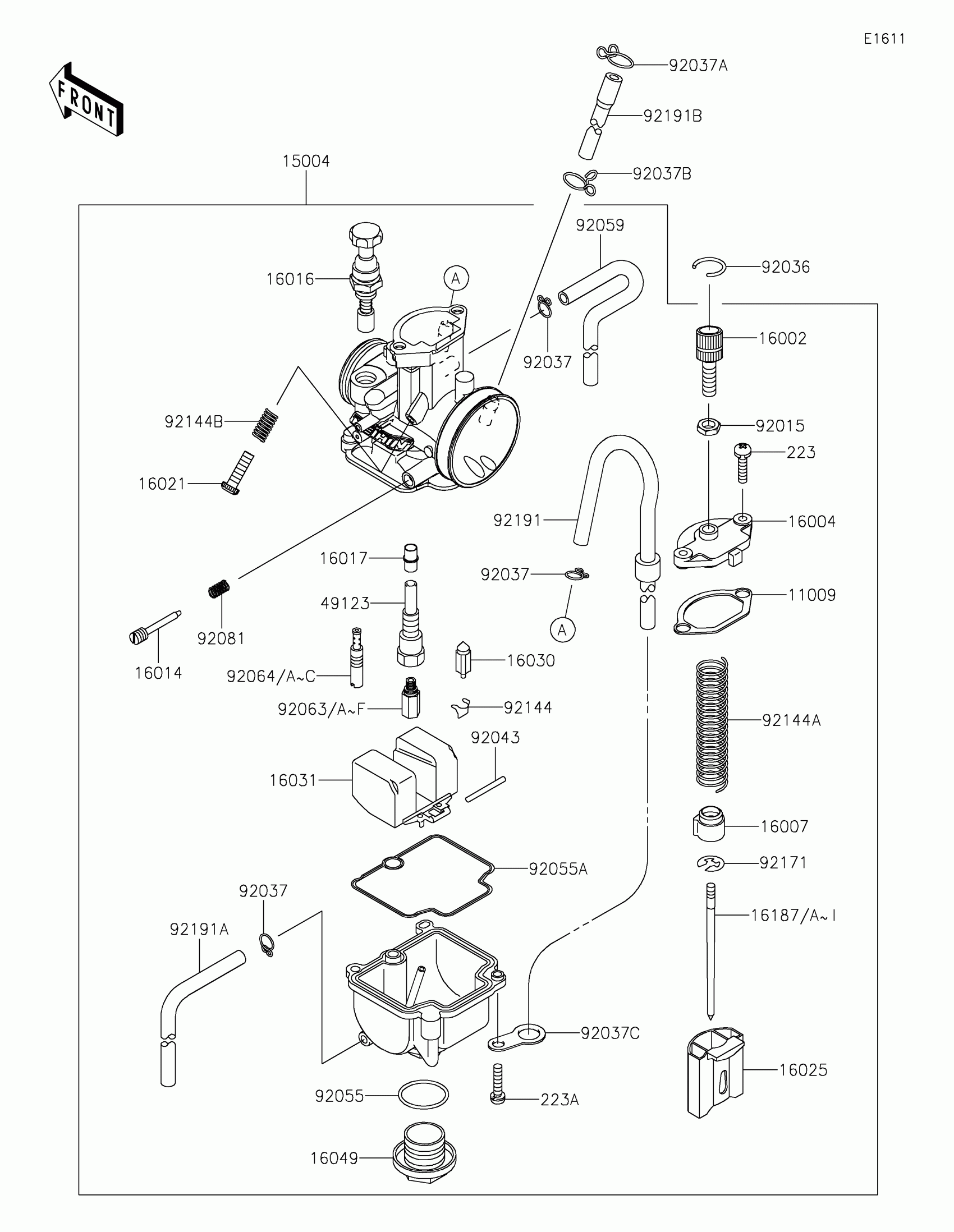

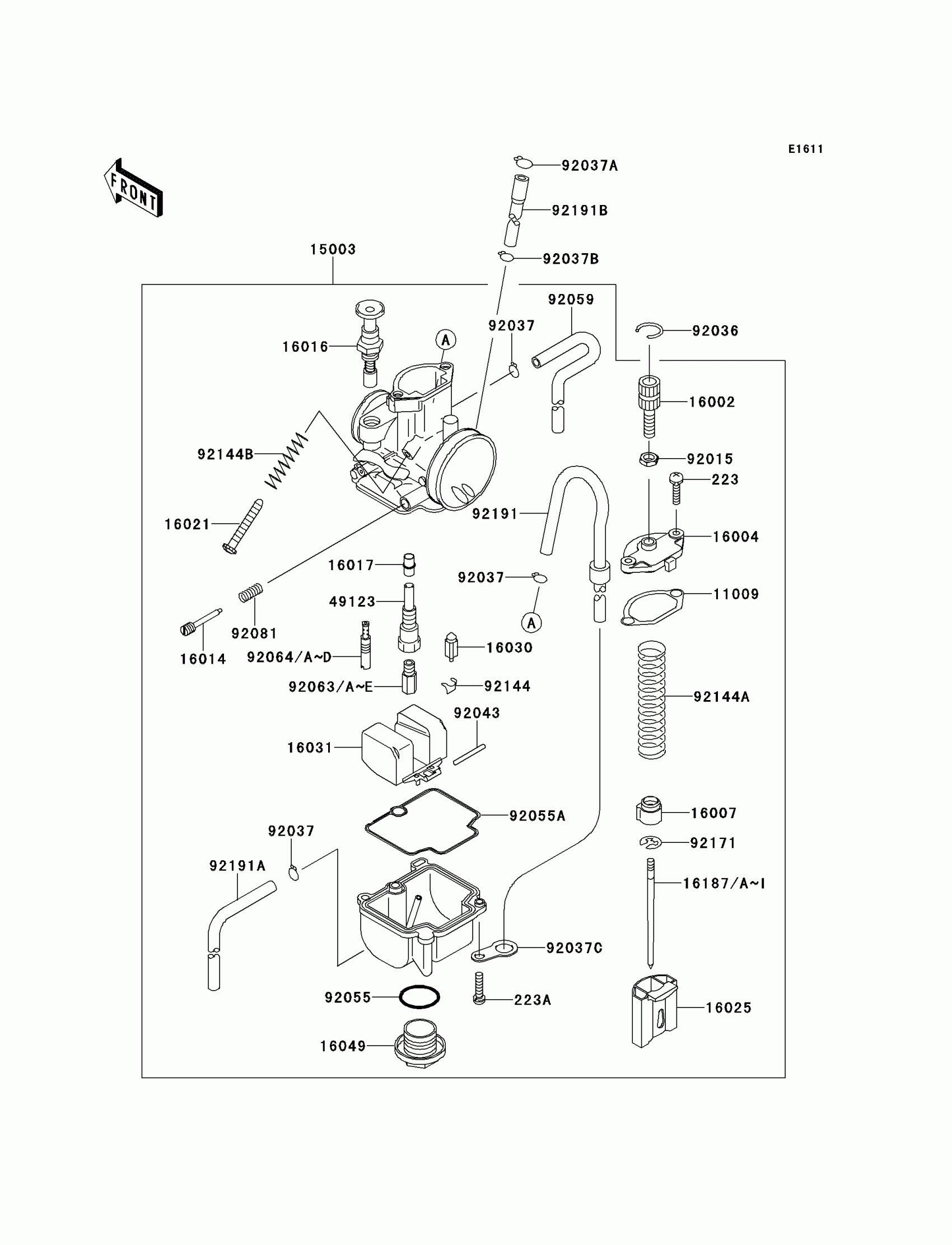

Kawasaki KX™85 Carburetor Diagram
#
11009
GASKET,MIXING CHAMBER
11009-1759
$12.10
15004
CARBURETOR-ASSY,PWK28
15004-0856
$255.04
16002
ADJUSTER-CABLE
16002-1056
$23.96
16004
CAP-CHAMBER,MIXING
16004-1065
$79.55
16007
SEAT-SPRING,THROTTLE VALVE
16007-1155
$8.30
16014
SCREW-PILOT AIR
16014-1058
$20.77
16016
PLUNGER,STARTER
16016-1075
$40.69
16017
JET-NEEDLE
16017-1431
$41.55
16021
SCREW-THROTTLE STOP
16021-1161
$18.72
16025
VALVE-THROTTLE,CA3.5
16025-1220
$139.83
16030
VALVE-FLOAT
16030-1064
$50.19
16031
FLOAT
16031-1065
$53.59
16049
COVER-MAIN JET
16049-1051
$33.28
16187
NEEDLE-JET,NRJA
16187-0557
$30.79
16187A
NEEDLE-JET,NRJB
16187-0558
$30.79
16187B
NEEDLE-JET,NRJC
16187-0559
$30.79
16187C
NEEDLE-JET,NRJD
16187-0560
$30.79
16187D
NEEDLE-JET,NRJE
16187-0561
$30.79
16187E
NEEDLE-JET,NRKA
16187-0562
$30.79
16187F
NEEDLE-JET,NRKB
16187-0563
$30.79
16187G
NEEDLE-JET,NRKC
16187-0564
$30.79
16187H
NEEDLE-JET,NRKD
16187-0565
$30.79
16187I
NEEDLE-JET,NRKE
16187-0566
$30.79
49123
HOLDER-MAIN JET
49123-1054
$23.25
92015
NUT,CABLE ADJUST LOCK
92015-1574
$6.57
92036
RING-SNAP
92036-018
$3.89
92037
CLAMP,TUBE
92037-1396
$5.52
92037A
CLAMP,TUBE
92037-147
$7.34
92037B
CLAMP
92037-1712
$5.00
92037C
CLAMP,HOSE
92037-1969
$8.10
92043
PIN,FLOAT
92043-1207
$11.14
92055
RING-O,MAIN JET COVER
92055-1167
$9.51
92055A
RING-O,FLOAT CHAMBER
92055-1389
$9.91
92059
TUBE,4X7X360
92059-1941
$17.41
92063
JET-MAIN,#135
92063-1338
$14.44
92063A
JET-MAIN,#138
92063-1359
$15.66
92063B
JET-MAIN,#140
92063-1360
$15.20
92063C
JET-MAIN,#142
92063-1361
$14.10
92063D
JET-MAIN,#145
92063-1362
$14.10
92063E
JET-MAIN,#148
92063-1363
$14.10
92063F
JET-MAIN,#150
92063-1364
$14.10
92064
JET-PILOT,#35
92064-1138
$17.03
92064A
JET-PILOT,#38
92064-1139
$17.03
92064B
JET-PILOT,#40
92064-1140
$17.03
92064C
JET-PILOT,#42
92064-1141
$17.03
92081
SPRING,ADJUST SCREW
92081-1555
$5.46
92144
SPRING,FLOAT VALVE
92144-1178
$7.88
92144A
SPRING,THROTTLE VALVE
92144-1566
$14.26
92144B
SPRING,THROTTLE STOP SCREW
92144-1782
$16.53
92171
CLAMP
92171-1323
$11.81
92191
TUBE,4X7X560
92191-1243
$10.39
92191A
TUBE,4X7X420
92191-1591
$16.24
92191B
TUBE
92191-1610
$7.69
223
SCREW-PAN-WS-CROS,4X14
223AB0414
$4.18
223A
SCREW-PAN-WS-CROS,4X16
223AB0416
$4.12
