Description

Price

13159

CONNECTOR

13159-1056

$14.10

43010

ROD-ASSY-BRAKE

43010-1076

$51.24

43015

CYLINDER-ASSY-MASTER,RR

43015-1694

$217.59

43020

PISTON-COMP-BRAKE

43020-1094

$65.22

43026

CAP-BRAKE

43026-1058

$33.60

43027

PLATE-DIAPHRAGM

43027-1052

$4.33

43028

DIAPHRAGM

43028-1060

$17.44

43078

RESERVOIR

43078-1068

$28.25

43095

HOSE-BRAKE,RR

43095-0673

$79.49

43095A

HOSE-BRAKE,RR MASTER CYLINDER

43095-1254

$34.75

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92022

WASHER,8.5X13X1

92022-1028

$3.92

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92037

CLAMP

92037-1710

$9.91

92043

PIN

92043-0004

$11.16

92055

RING-O,14.8X2.4

92055-0741

$3.71

92150

BOLT,6X14

92150-1340

$5.07

92153

BOLT,OIL,L=23

92153-1419

$3.90

92170

CLAMP,HOSE

92170-1684

$7.34

132

BOLT-FLANGED-SMALL,6X14

132BA0614

$1.46

221

SCREW-CSK-CROS,5X10

221AA0510

$3.67

550

PIN-COTTER,2.0X15

550AA2015

$1.12

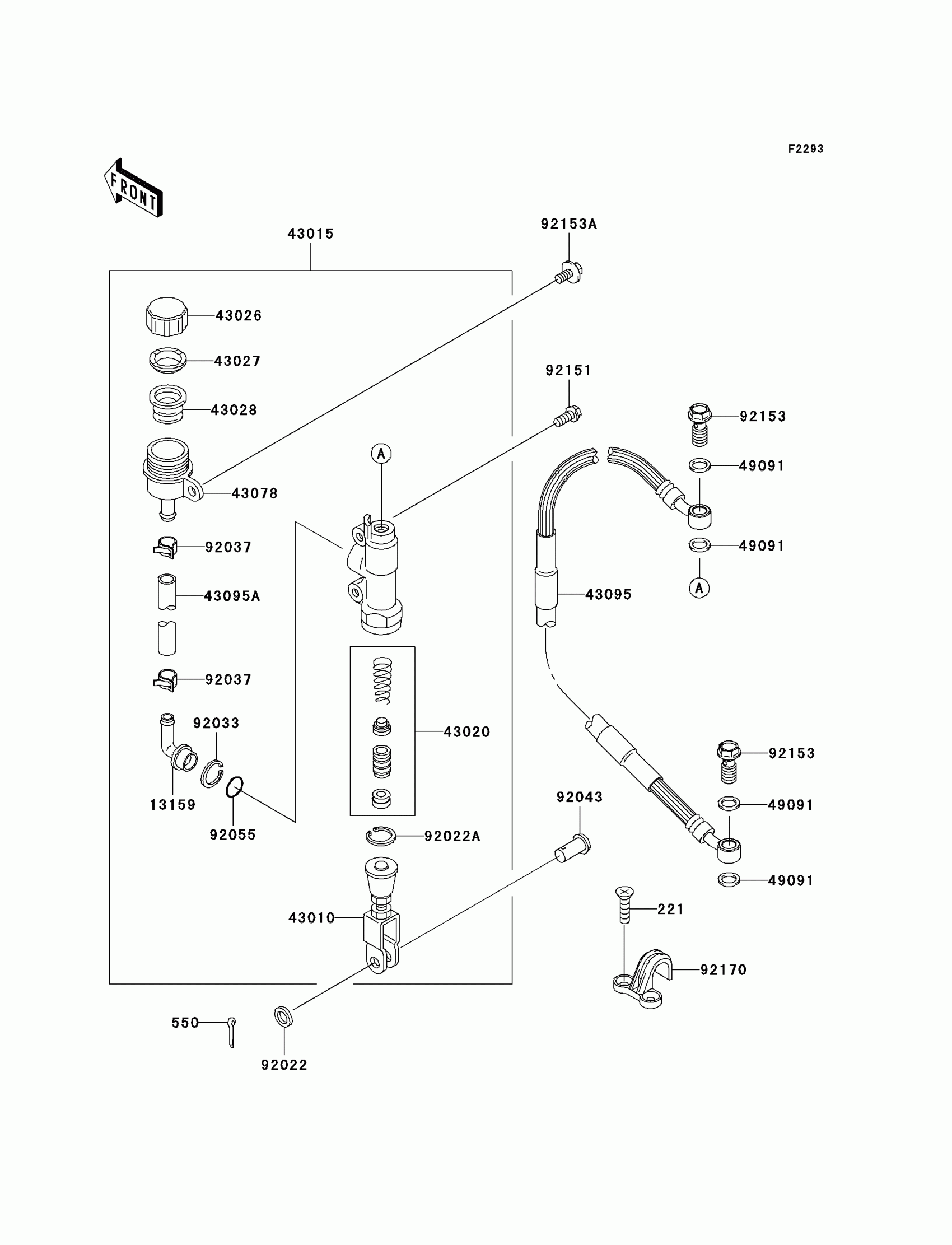

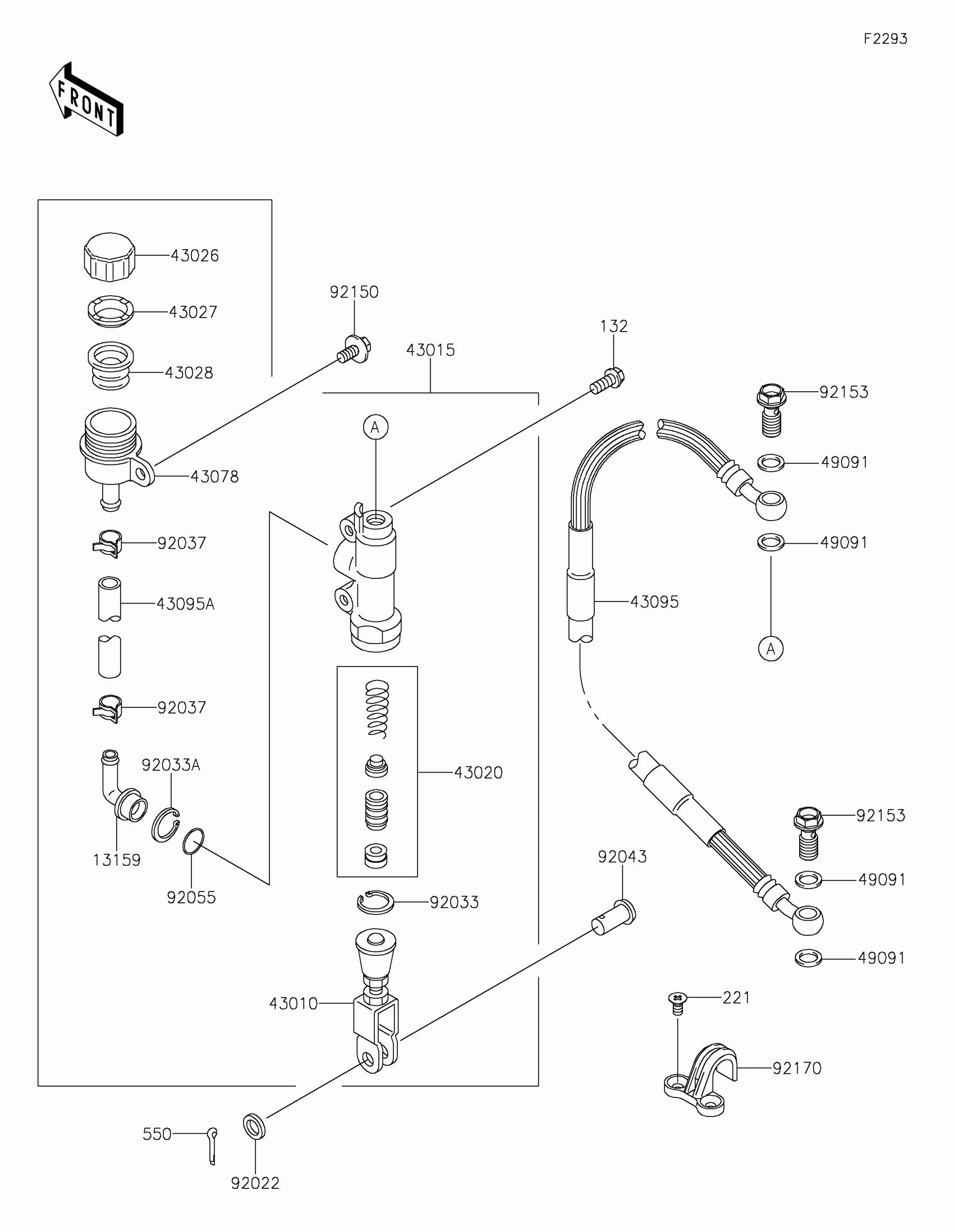

Kawasaki KX™65 Rear Master Cylinder Diagram
