Description

Price

41080

DISC

41080-1470

$185.81

43044

HOLDER-COMP-CALIPER,RR

43044-1076

$49.73

43048

PISTON-CALIPER

43048-1090

$66.83

43049

PACKING

43049-1025

$5.46

43049A

PACKING,PISTON SEAL

43049-1060

$19.45

43049B

PACKING,PISTON SEAL

43049-1061

$10.56

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,RR

43080-0036

$175.01

43082

PAD-ASSY-BRAKE

43082-0043

$60.03

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1089

$7.38

55020

GUARD,REAR CALIPER,BLACK

55020-1707-6Z

$22.80

92025

SHIM,PAD

92025-1817

$9.28

92075

DAMPER

92075-1414

$7.34

92081

SPRING,PAD

92081-1502

$8.51

92150

BOLT

92150-1144

$9.91

92150A

BOLT,6X14

92150-1340

$5.07

92150B

BOLT,SOCKET,8X16

92150-1840

$4.18

92151

BOLT,DISC PLATE,6MM

92151-1799

$4.13

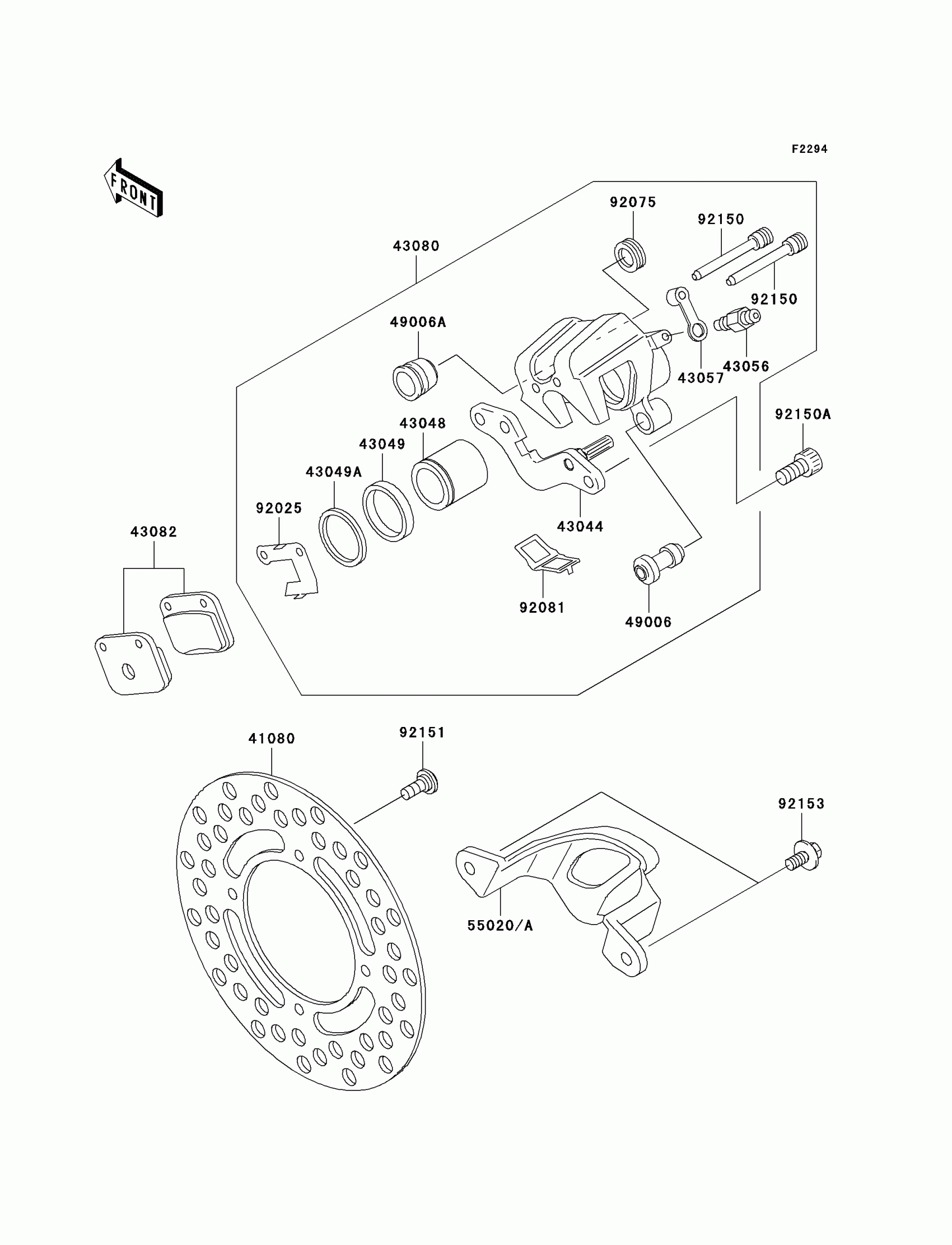

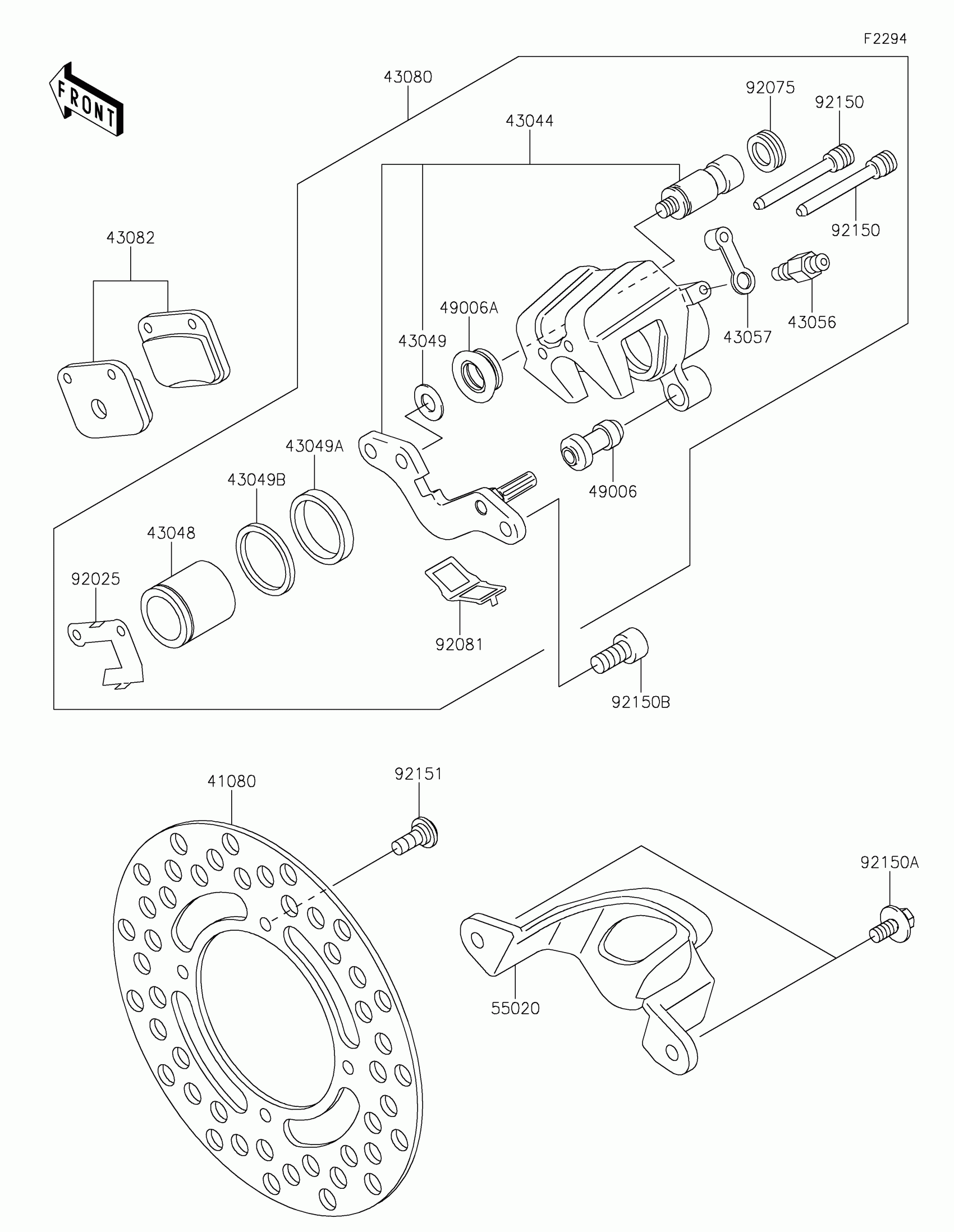

Kawasaki KX™65 Rear Brake Diagram

DISC

HOLDER-COMP-CALIPER,RR

PISTON-CALIPER

PACKING

PACKING,PISTON SEAL

PACKING,PISTON SEAL

BREATHER

CAP-BREATHER

CALIPER-SUB-ASSY,RR

PAD-ASSY-BRAKE

BOOT,CALIPER

BOOT,CALIPER

GUARD,REAR CALIPER,BLACK

SHIM,PAD

DAMPER

SPRING,PAD

BOLT

BOLT,6X14

BOLT,SOCKET,8X16

BOLT,DISC PLATE,6MM
