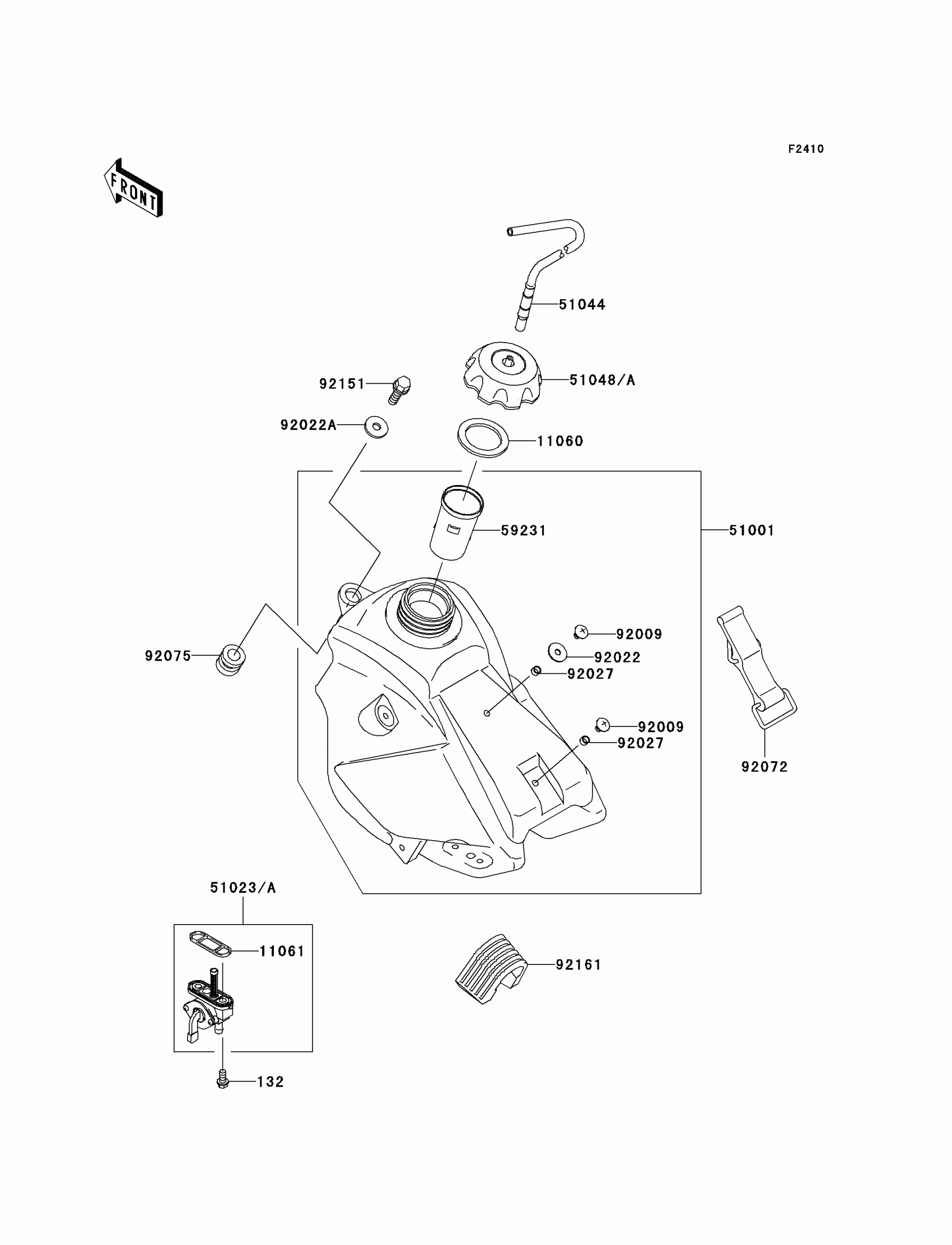

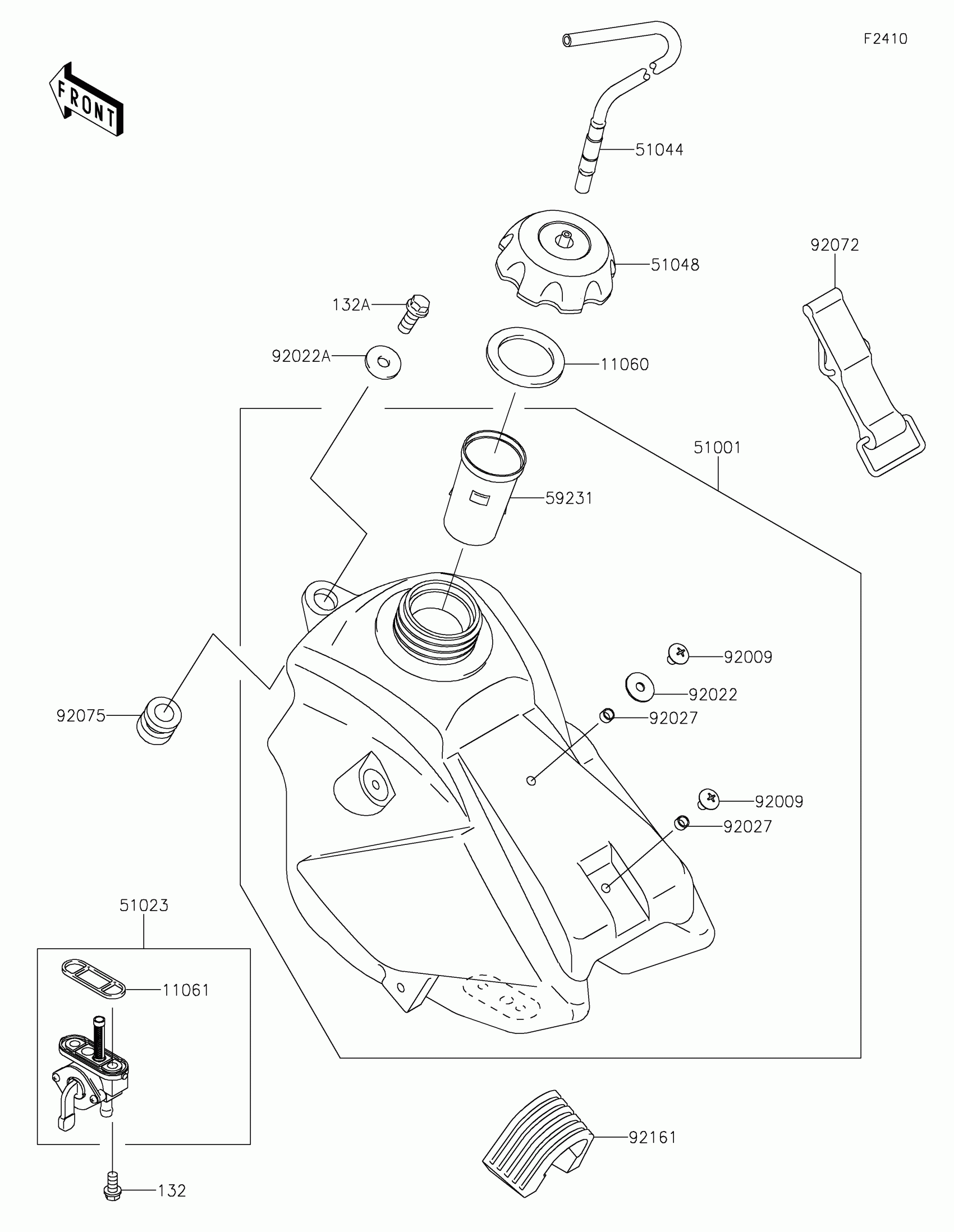

Kawasaki KX™65 Fuel Tank Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

11060

GASKET,FUEL TANK CAP

11060-1340

$6.16

11061

GASKET,FUEL TAP

11061-0181

$6.33

51001

TANK-COMP-FUEL,F.BLACK

51001-1676-6Z

$391.99

51023A

TAP-ASSY,FUEL

51023-0024

$71.73

51044

TUBE-ASSY

51044-0025

$19.74

51048

CAP-ASSY-TANK,FUEL

51048-0014

$54.33

59231

FILLER

59231-1096

$6.16

92009

SCREW,6X10

92009-1530

$3.92

92022

WASHER,PLAIN,6.5X20X1

92022-165

$3.74

92022A

WASHER,6.5X24X2

92022-1690

$3.92

92027

COLLAR,6.2X7.8X5

92027-2096

$0.49

92072

BAND,FUEL TANK

92072-1229

$12.74

92075

DAMPER

92075-1787

$6.57

92151

BOLT,6X14

92151-1423

$0.90

92161

DAMPER,FUEL TANK,RR

92161-1077

$17.76
