2009 Kawasaki KX™65 Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2009 Kawasaki KX™65, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

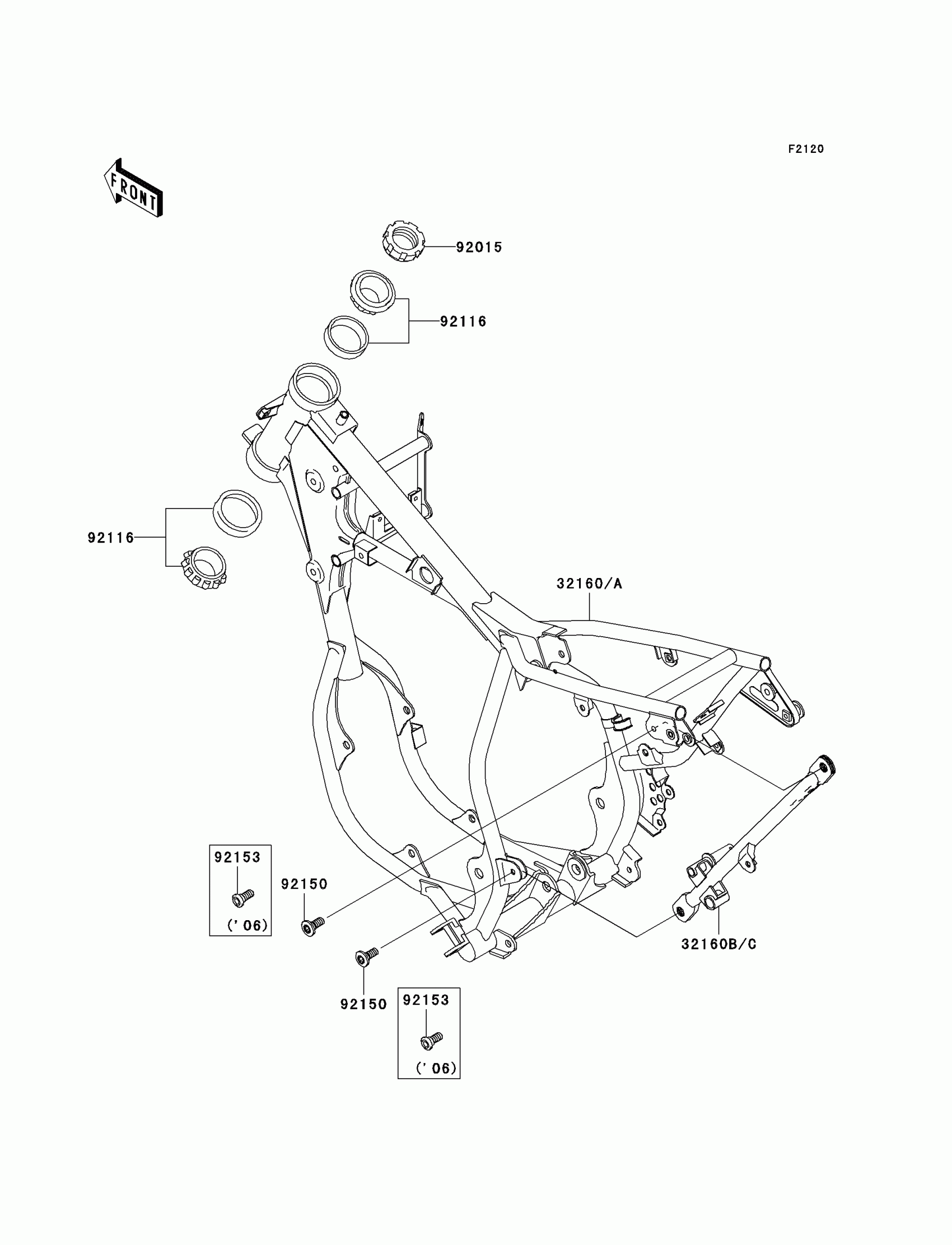

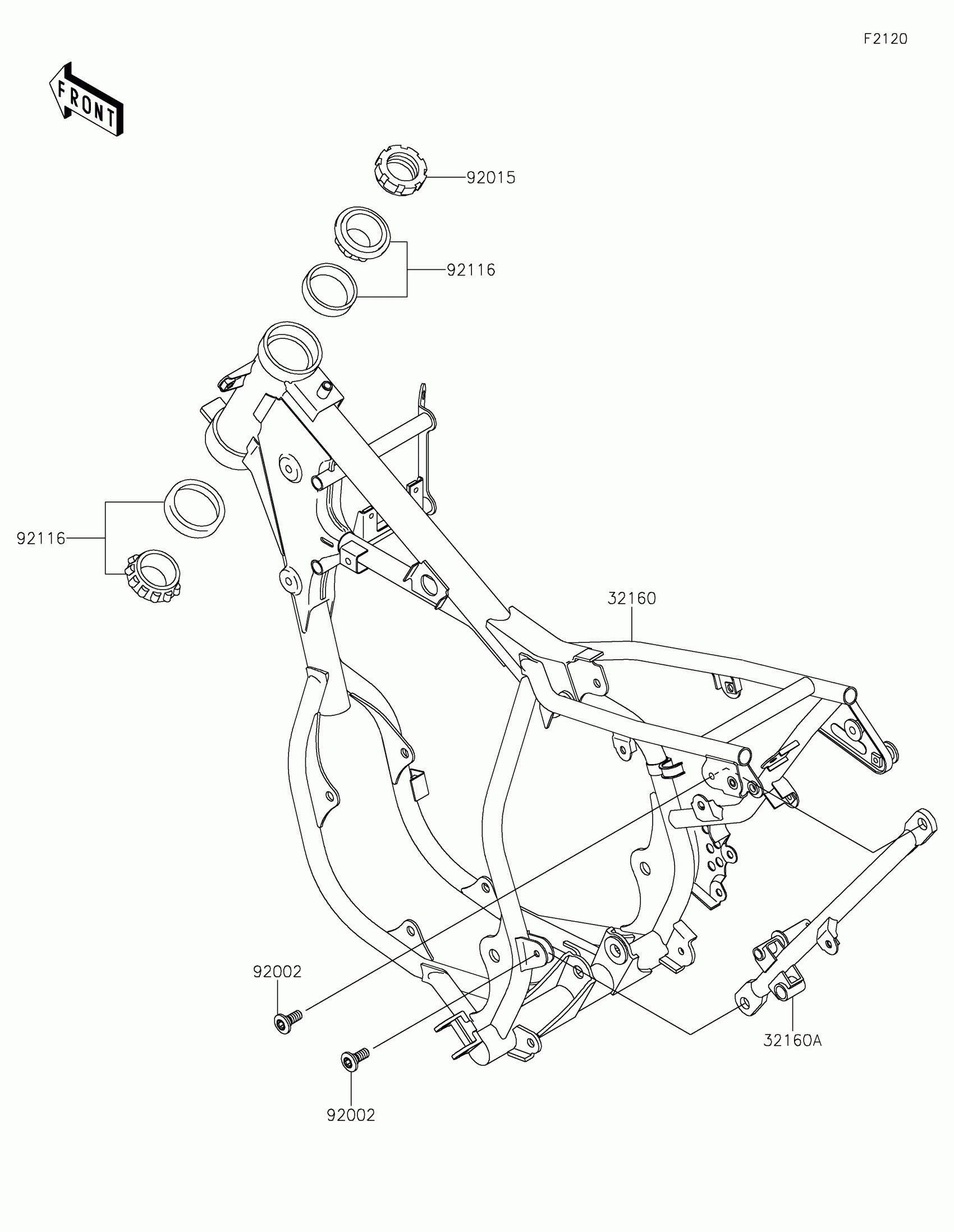

2009 Kawasaki KX™65 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32160

FRAME-COMP,F.S.BLACK

32160-0117-18R

1

$911.76

In stock

32160B

FRAME-COMP,SUB,F.S.BLACK

32160-1611-18R

1

$139.17

In stock

92015

1

$20.39

In stock

92116

1

$43.76

In stock

92150

BOLT,SOCKET,8X20

92150-1760

1

$5.21

In stock
