2009 Kawasaki KX™65 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2009 Kawasaki KX™65, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

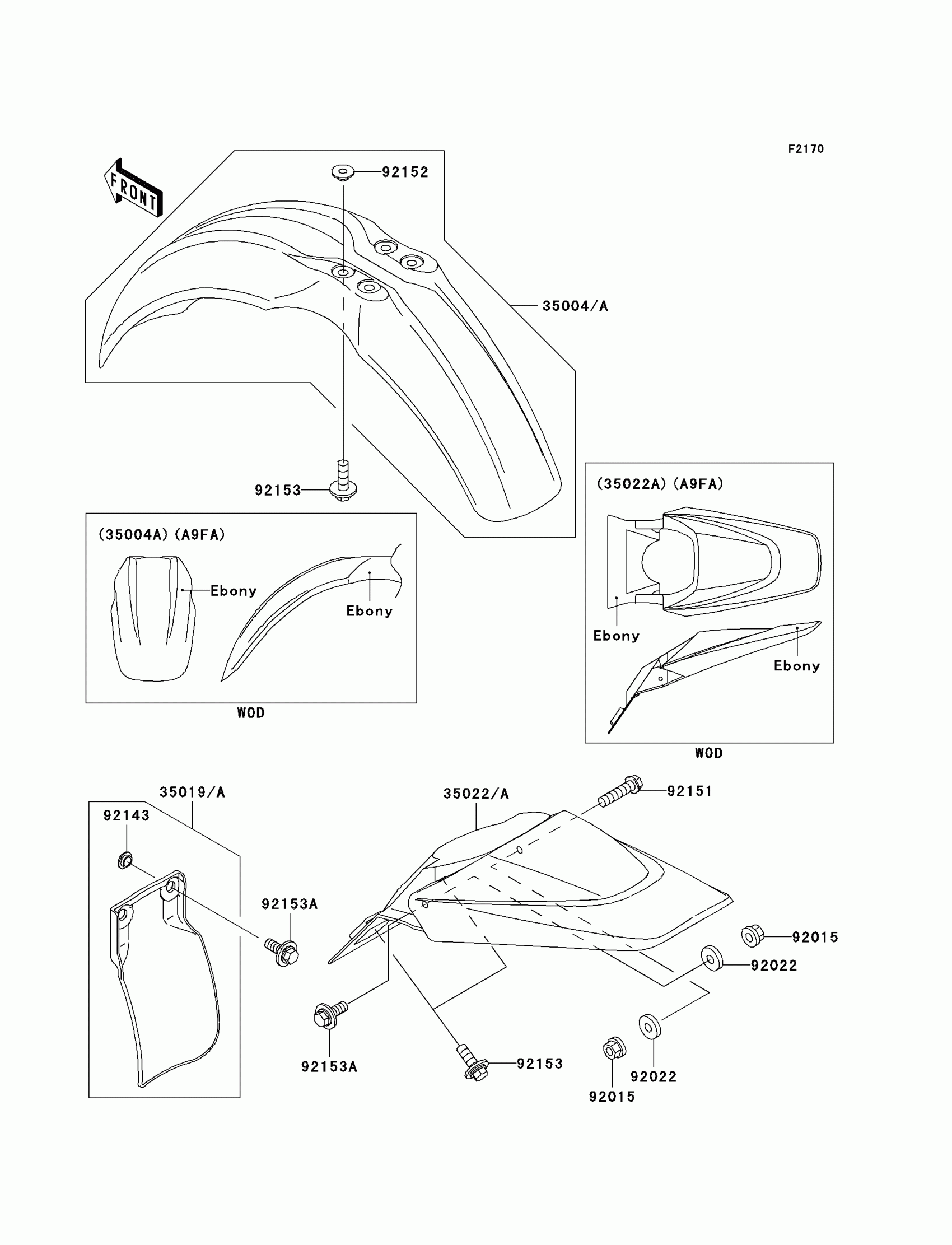

2009 Kawasaki KX™65 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004A

FENDER-FRONT,EBONY

35004-1416-6C

1

$51.15

In stock

35019A

FLAP,REAR FENDER,BLACK

35019-1395-6D

1

$34.30

In stock

35022A

FENDER-COMP-REAR,EBONY

35022-1342-6C

1

$65.25

In stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

92143

COLLAR

92143-1196

1

$3.72

In stock

92151

1

$2.06

In stock

92152

COLLAR

92152-1255

1

$3.29

In stock

92153

BOLT,6X20

92153-0502

1
Out of stock

92153A

BOLT,6X16

92153-0863

1
Out of stock
