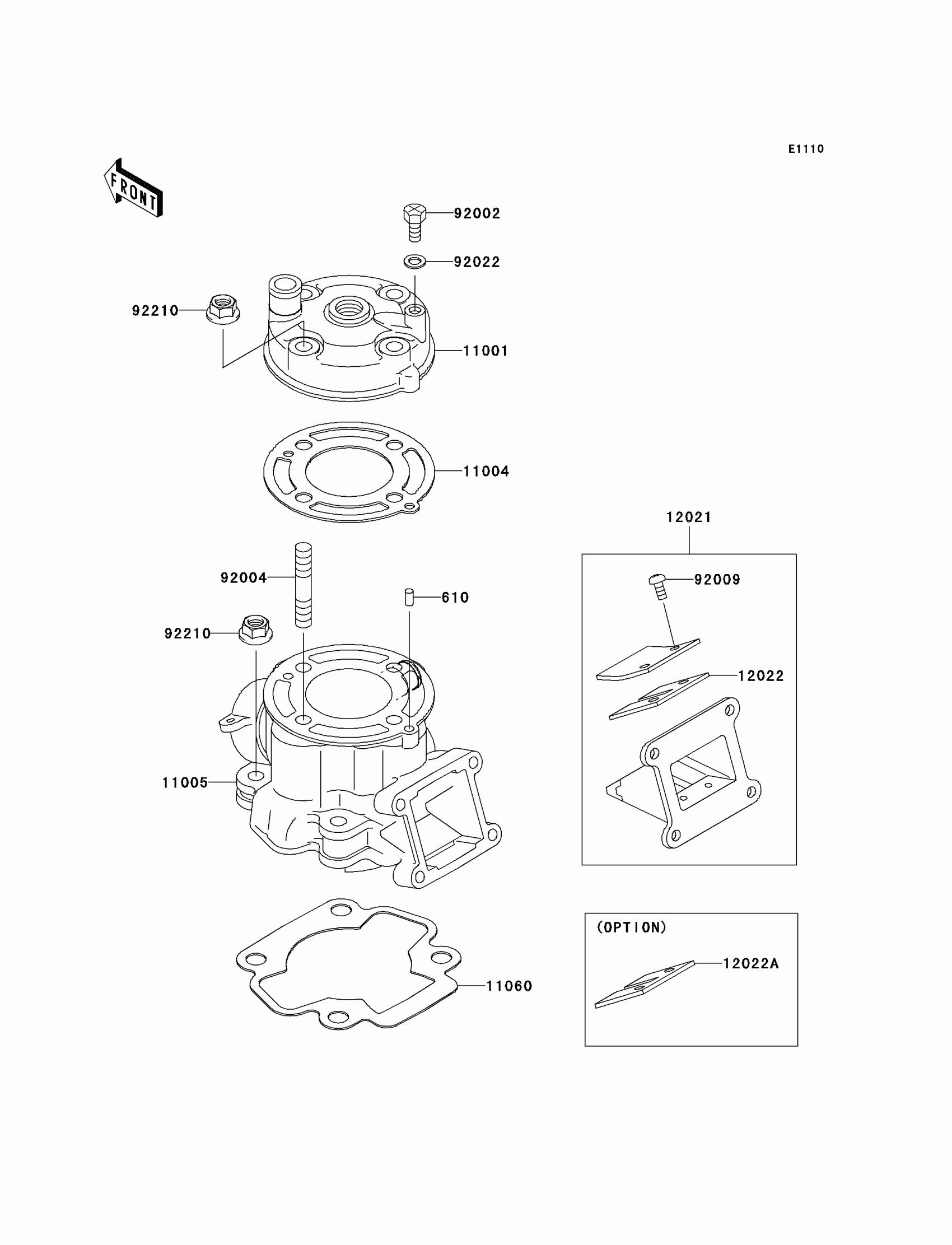

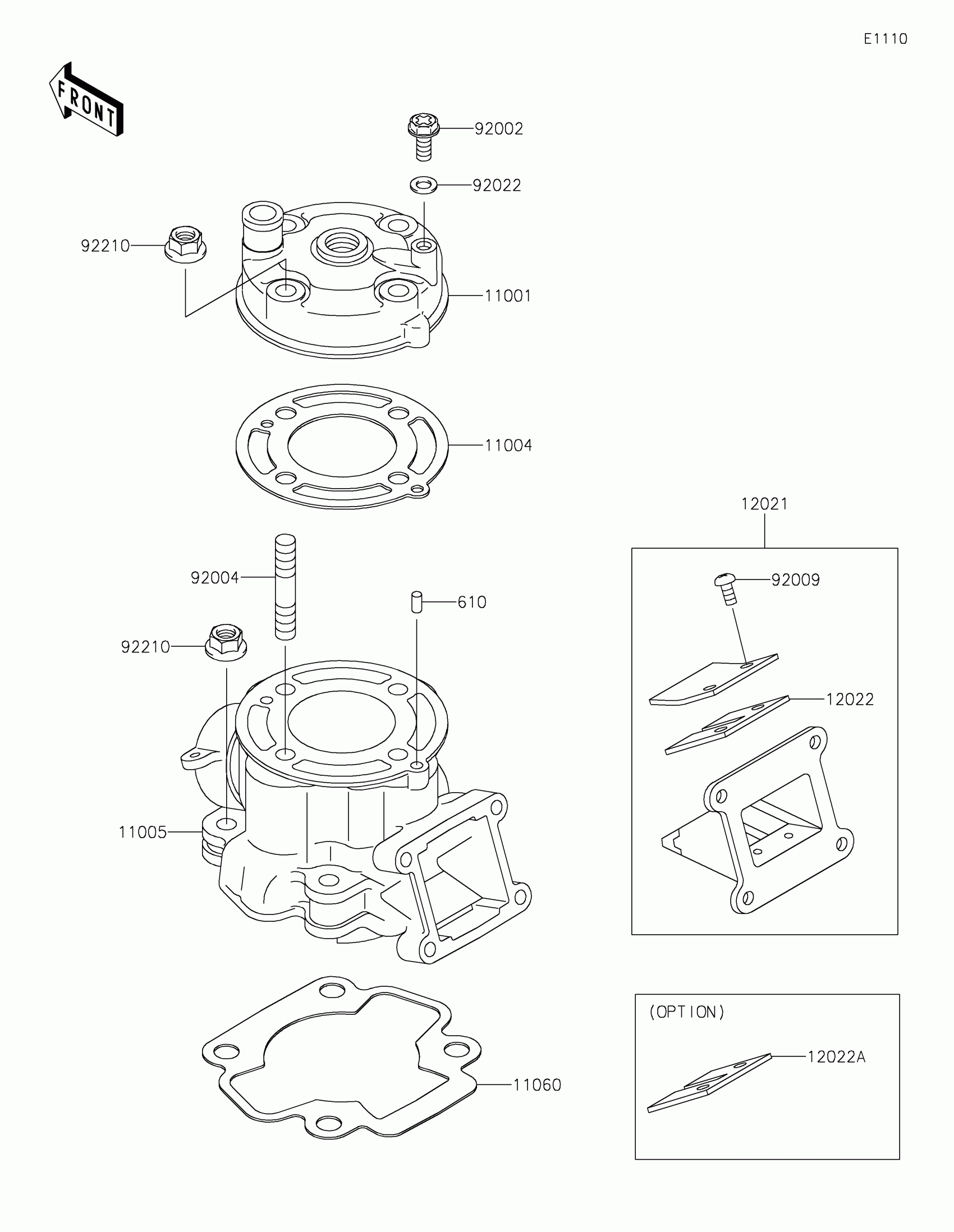

Kawasaki KX™65 Cylinder Head/Cylinder Diagram

Description

Price

11001

HEAD-CYLINDER

11001-1516

$192.16

11004

GASKET-HEAD

11004-1346

$32.19

11005

CYLINDER-ENGINE

11005-1973

$547.11

11060

GASKET,CYLINDER BASE,T=0.37

11060-1921

$12.42

12021

VALVE-ASSY-REED

12021-1015

$134.42

12022

VALVE-REED,T=0.42

12022-1013

$19.09

12022A

VALVE-REED,T=0.37,CARBON

12022-1087

$58.95

92002

BOLT,6X10

92002-1222

$8.10

92004

STUD,8X30

92004-1069

$7.51

92009

SCREW,REED VALVE

92009-1014

$2.49

92022

WASHER,6.2X11X1

92022-304

$3.65

92210

NUT,8MM

92210-0076

$5.48

610

ROLLER,4X8

610A0408

$4.31
