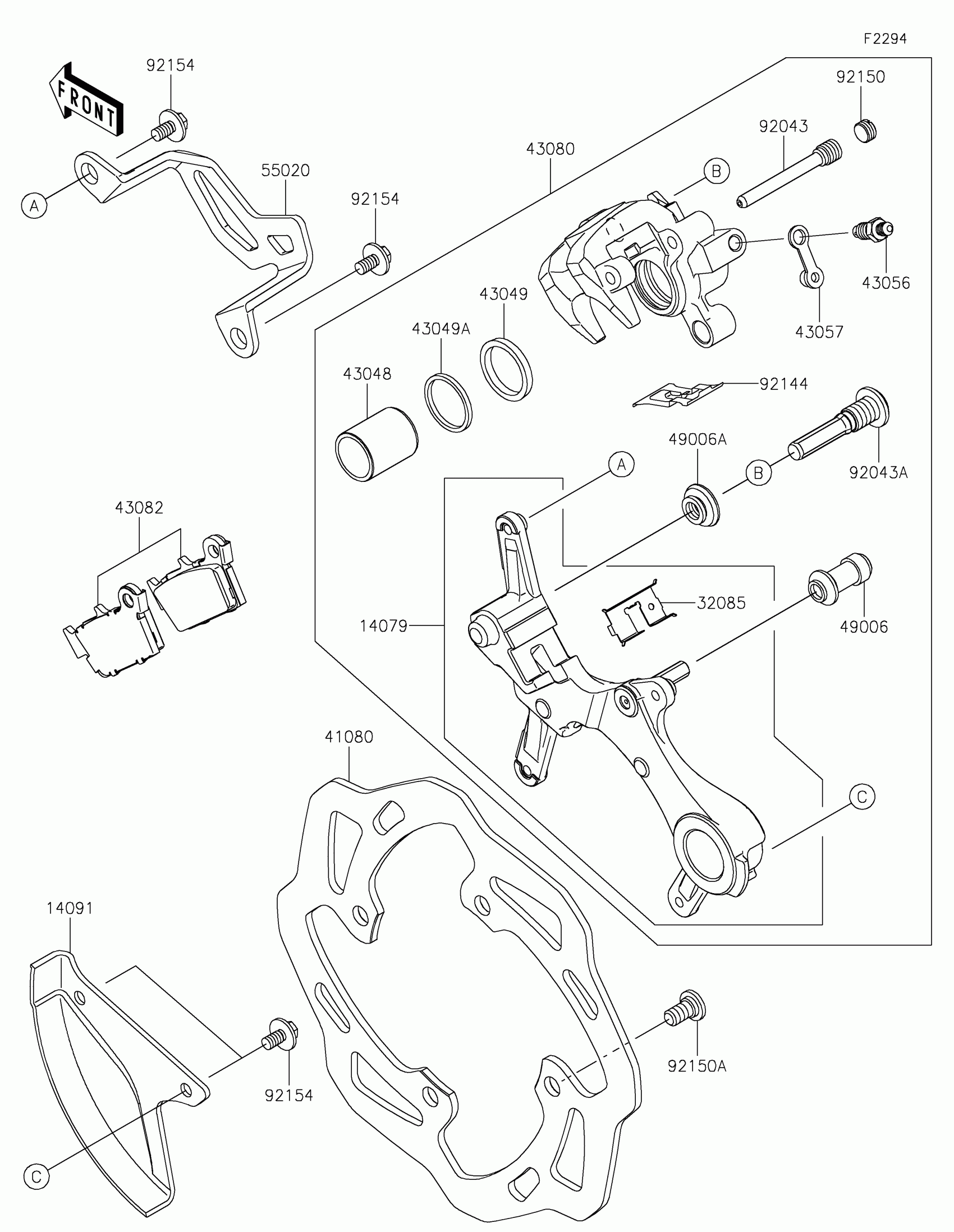

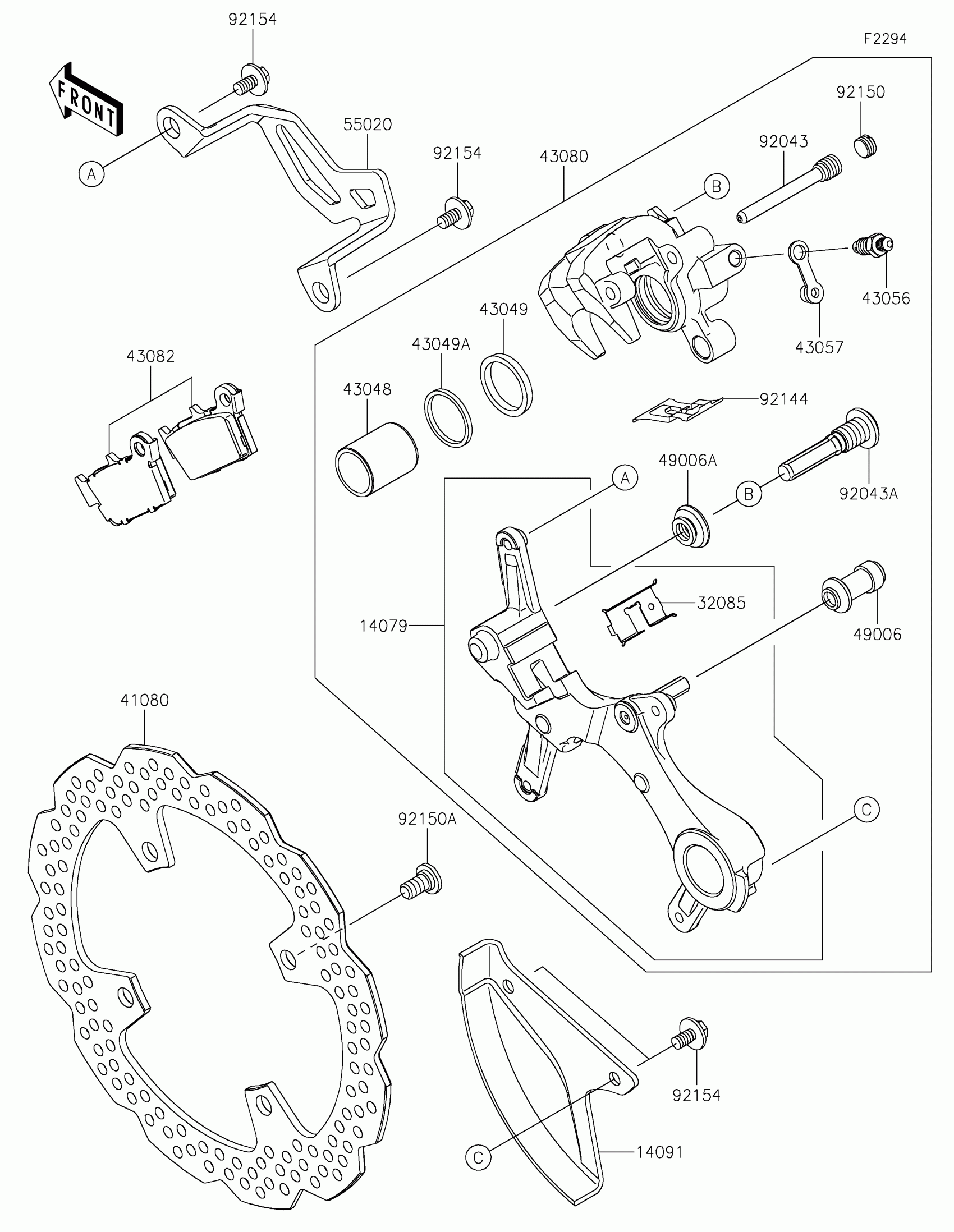

Find the part on the Rear Brake diagram for your 2023 Kawasaki KX™450X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki KX™450X Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14079

HOLDER-ASSY,REAR CALIPER

14079-0619

1
Out of stock

14091

COVER,REAR DISC,EBONY

14091-1523-6C

1
Out of stock

32085

STOPPER,PAD

32085-1386

1
Out of stock

41080

DISC,RR,240MM

41080-0618

1
Out of stock

43048

PISTON-CALIPER

43048-1066

1
Out of stock

43049

PACKING

43049-1063

1
Out of stock

43049A

PACKING

43049-1064

1
Out of stock

43056

BREATHER

43056-1055

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

43080

CALIPER-SUB-ASSY,RR

43080-0230

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-0201

1
Out of stock

49006

BOOT,CALIPER

49006-1088

1
Out of stock

49006A

BOOT,CALIPER

49006-1242

1
Out of stock

55020

GUARD,REAR CALIPER,EBONY

55020-0458-6C

1
Out of stock

92043

PIN,HANGER

92043-1507

1
Out of stock

92043A

PIN

92043-1508

1
Out of stock

92144

SPRING,PAD

92144-1819

1
Out of stock

92150

BOLT,PLUG

92150-1692

1
Out of stock

92150A

BOLT,DISC PLATE,8X15

92150-1811

1
Out of stock

92154

BOLT,FLANGED,6X12

92154-2970

1
Out of stock
