2023 Kawasaki KX™450X Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 2023 Kawasaki KX™450X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

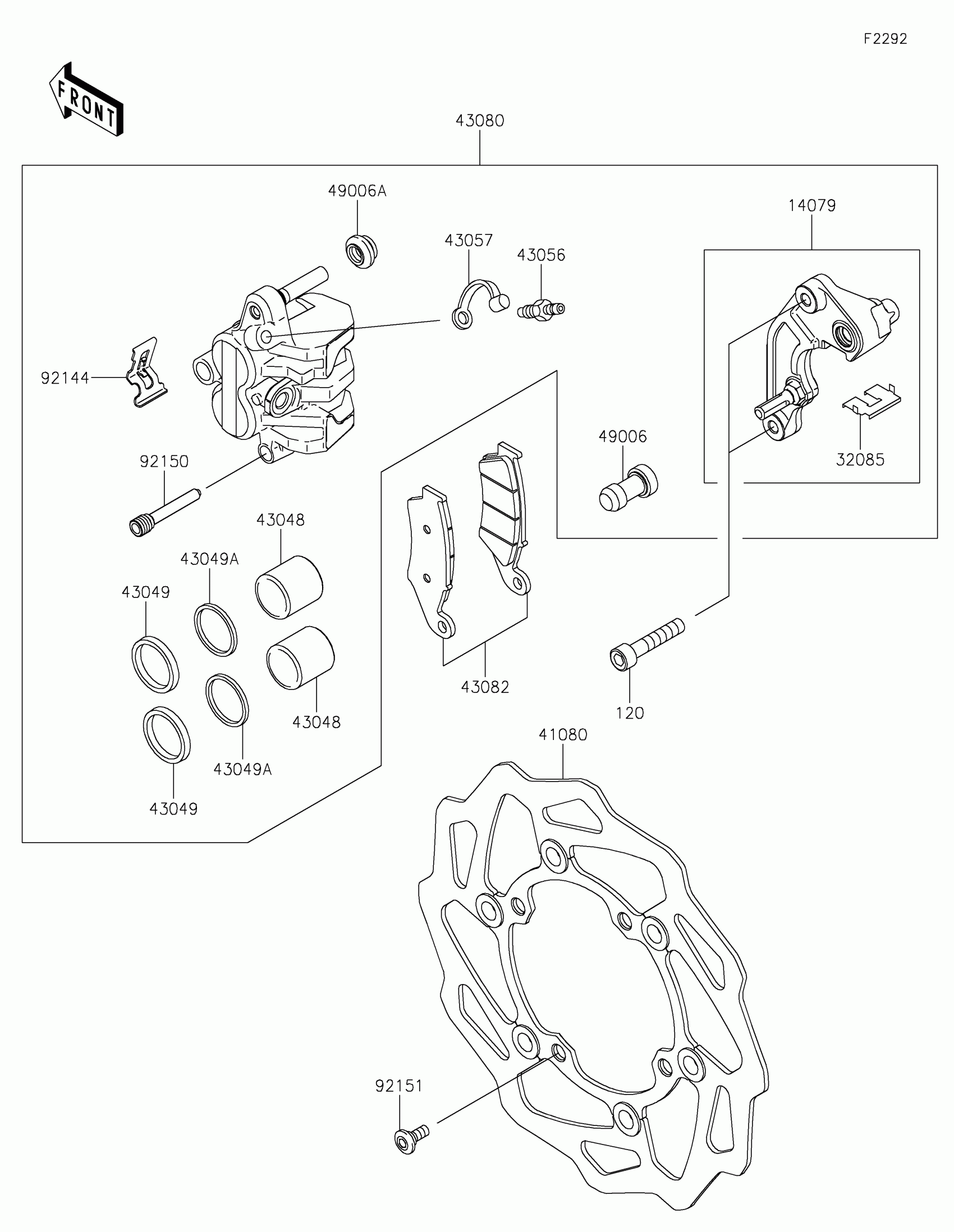

2023 Kawasaki KX™450X Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14079

1

$160.14

In stock

32085

STOPPER,PAD

32085-1361

1

$6.34

In stock

41080

DISC,FR,270MM

41080-0616

1

$233.14

In stock

43048

PISTON-CALIPER

43048-1095

1

$35.95

In stock

43049

PACKING,PISTON SEAL

43049-1060

1

$15.29

In stock

43049A

PACKING,PISTON SEAL

43049-1061

1

$8.38

In stock

43056

BREATHER

43056-1055

1
Out of stock

43057

CAP-BREATHER

43057-1001

1

$3.89

In stock

43080

CALIPER-SUB-ASSY,FR

43080-0157

1

$284.33

In stock

43082

PAD-ASSY-BRAKE

43082-0132

1

$47.17

In stock

49006

BOOT,CALIPER

49006-1088

1

$9.20

In stock

49006A

BOOT,CALIPER

49006-1242

1

$4.34

In stock

92144

SPRING,PAD

92144-1721

1

$7.79

In stock

92150

BOLT,HANGER

92150-1691

1

$9.50

In stock

92151

BOLT,DISC PLATE,6MM

92151-1799

1

$3.29

In stock

120

BOLT-SOCKET,8X40

120CA0840

1

$2.29

In stock
← Brake Pedal Front Master Cylinder →
