Description

Price

14091

COVER,THROTTLE CASE

14091-0182

$10.06

27010

SWITCH,STARTER

27010-0907

$37.72

27010A

SWITCH,LAUNCH MODE

27010-0908

$122.84

27010B

SWITCH,ENGINE STOP

27010-0909

$55.13

32099

CASE,THROTTLE,RR

32099-0002

$30.31

32099A

CASE,THROTTLE,FR

32099-0003

$30.31

39087

PAD-HANDLE

39087-0015

$23.95

39183

BAND-ASSY,SWITCH

39183-1059

$13.02

46003

HANDLE,RENTHAL,FATBAR,839

46003-0780

$112.52

46012

HOLDER-HANDLE,LWR,F.BLACK

46012-0013-21

$42.27

46012A

HOLDER-HANDLE,LWR,F.BLACK

46012-0048-21

$42.27

46012B

HOLDER-HANDLE,UPP,F.BLACK

46012-0324-21

$24.27

46012C

HOLDER-HANDLE,LWR,FAT BAR

46012-0417

$42.27

46012D

HOLDER-HANDLE,UPP,FAT BAR

46012-0418

$24.15

46019

GRIP-ASSY,THROTTLE

46019-0041

$29.91

46075

GRIP,LH

46075-0072

$14.62

92015

NUT,LOCK,10MM

92015-1962

$6.11

92022

WASHER,10.2X28X2

92022-1088

$4.69

92022A

WASHER

92022-1737

$5.52

92072

BAND,L=140

92072-1293

$7.11

92154

BOLT,8X32

92154-2974

$1.42

92161

DAMPER,HANDLE HOLDER

92161-0929

$5.65

92172

SCREW,5X20

92172-0069

$3.32

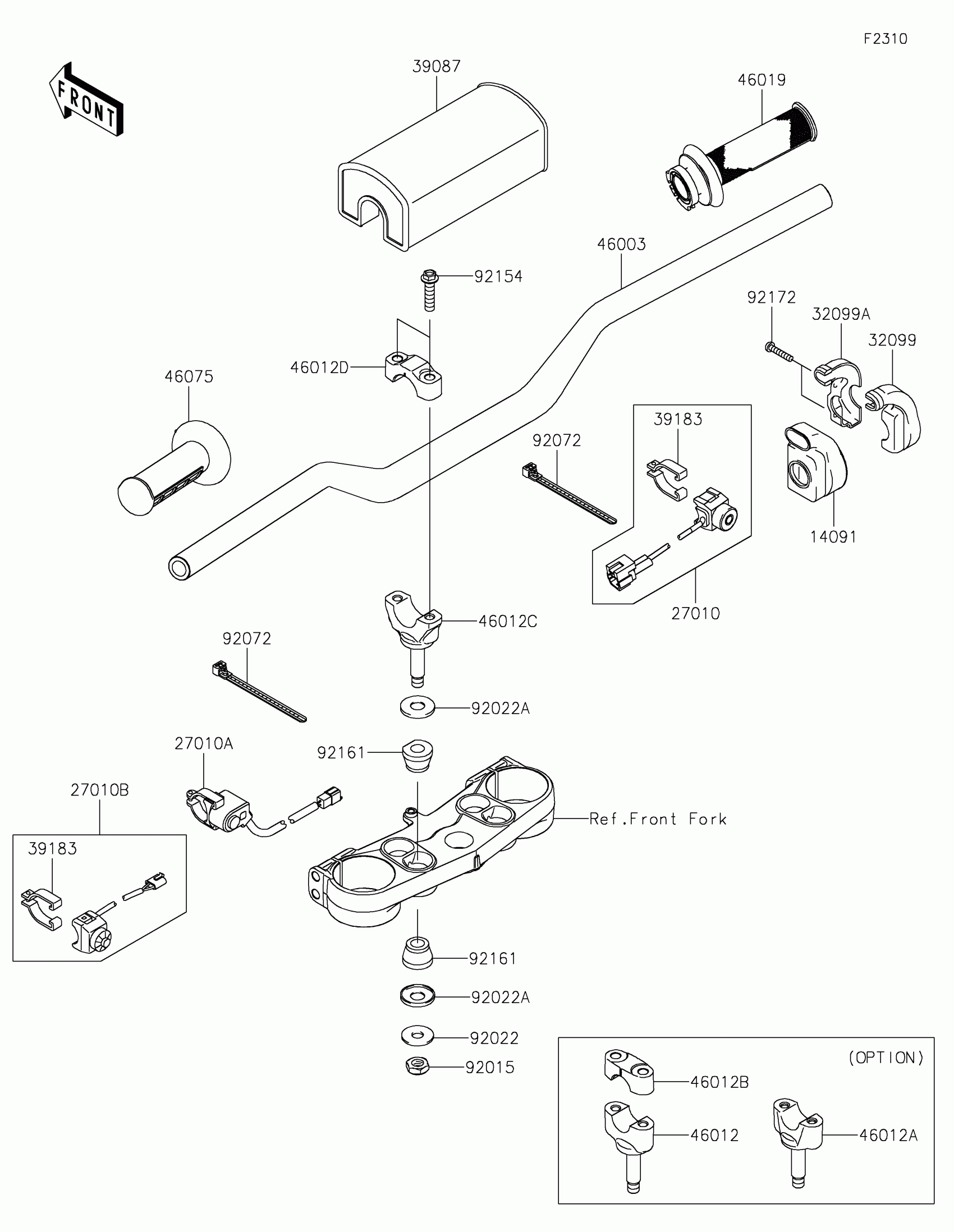

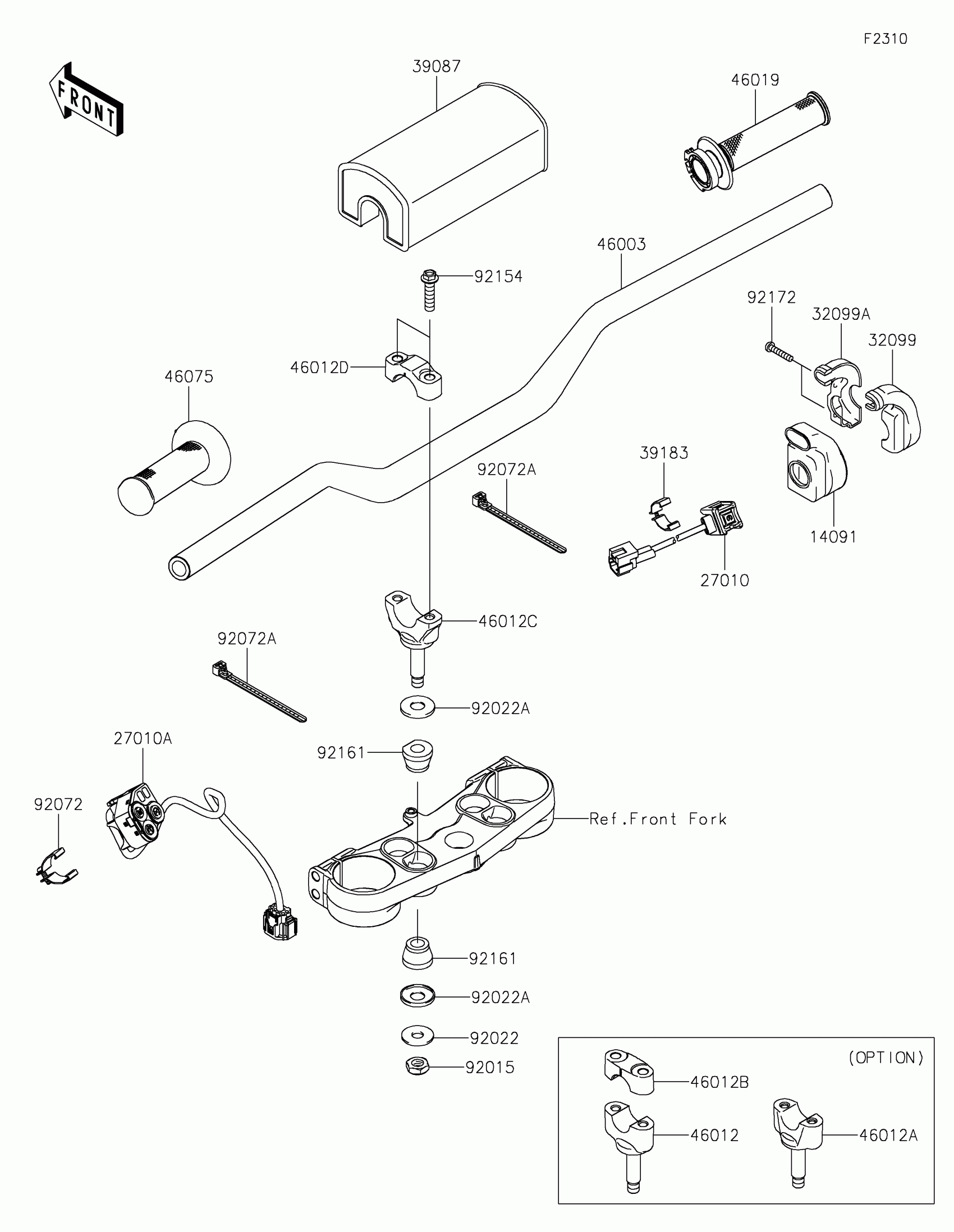

Kawasaki KX™450X Handlebar Diagram

COVER,THROTTLE CASE

SWITCH,STARTER

SWITCH,LAUNCH MODE

SWITCH,ENGINE STOP

CASE,THROTTLE,RR

CASE,THROTTLE,FR

PAD-HANDLE

BAND-ASSY,SWITCH

HANDLE,RENTHAL,FATBAR,839

HOLDER-HANDLE,LWR,F.BLACK

HOLDER-HANDLE,LWR,F.BLACK

HOLDER-HANDLE,UPP,F.BLACK

HOLDER-HANDLE,LWR,FAT BAR

HOLDER-HANDLE,UPP,FAT BAR

GRIP-ASSY,THROTTLE

GRIP,LH

NUT,LOCK,10MM

WASHER,10.2X28X2

WASHER

BAND,L=140

BOLT,8X32

DAMPER,HANDLE HOLDER

SCREW,5X20
