Description

Price

11004

GASKET-HEAD

11004-0796

$49.04

11008

HEAD-COMP-CYLINDER

11008-0975

$770.28

16066

HOLDER-THROTTLE BODY

16066-0010

$16.19

49002

GUIDE-VALVE

49002-0020

$36.47

49002A

GUIDE-VALVE

49002-0042

$36.47

92004

STUD,8X22

92004-0025

$3.87

92005

FITTING

92005-0896

$71.50

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92043

PIN,10.1X12X14

92043-4009

$6.22

92055

RING-O,23.5X2.0

92055-0046

$2.15

92055A

RING-O,22.1X2.4

92055-1081

$4.69

92055B

RING-O,47X1.9

92055-1600

$9.19

92066

PLUG,18X10

92066-0832

$12.90

92153

BOLT,TORX,6X14

92153-0406

$2.80

92154

BOLT,FLANGED,10X127

92154-2455

$22.76

92154A

BOLT,FLANGED,6X16

92154-2965

$0.90

92154B

BOLT,FLANGED,6X42

92154-2979

$1.17

92154C

BOLT,FLANGED,6X35

92154-2983

$1.17

92154D

BOLT,SOCKET,6X70

92154-3867

$1.94

92154E

BOLT-SOCKET,6X25

92154-3960

$1.17

92154F

BOLT,FLANGED,10X148

92154-4126

$21.35

92170

CLAMP

92170-1514

$4.31

92171

CLAMP

92171-1552

$16.41

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92200

WASHER,10.2X18.4X1.8

92200-1691

$4.20

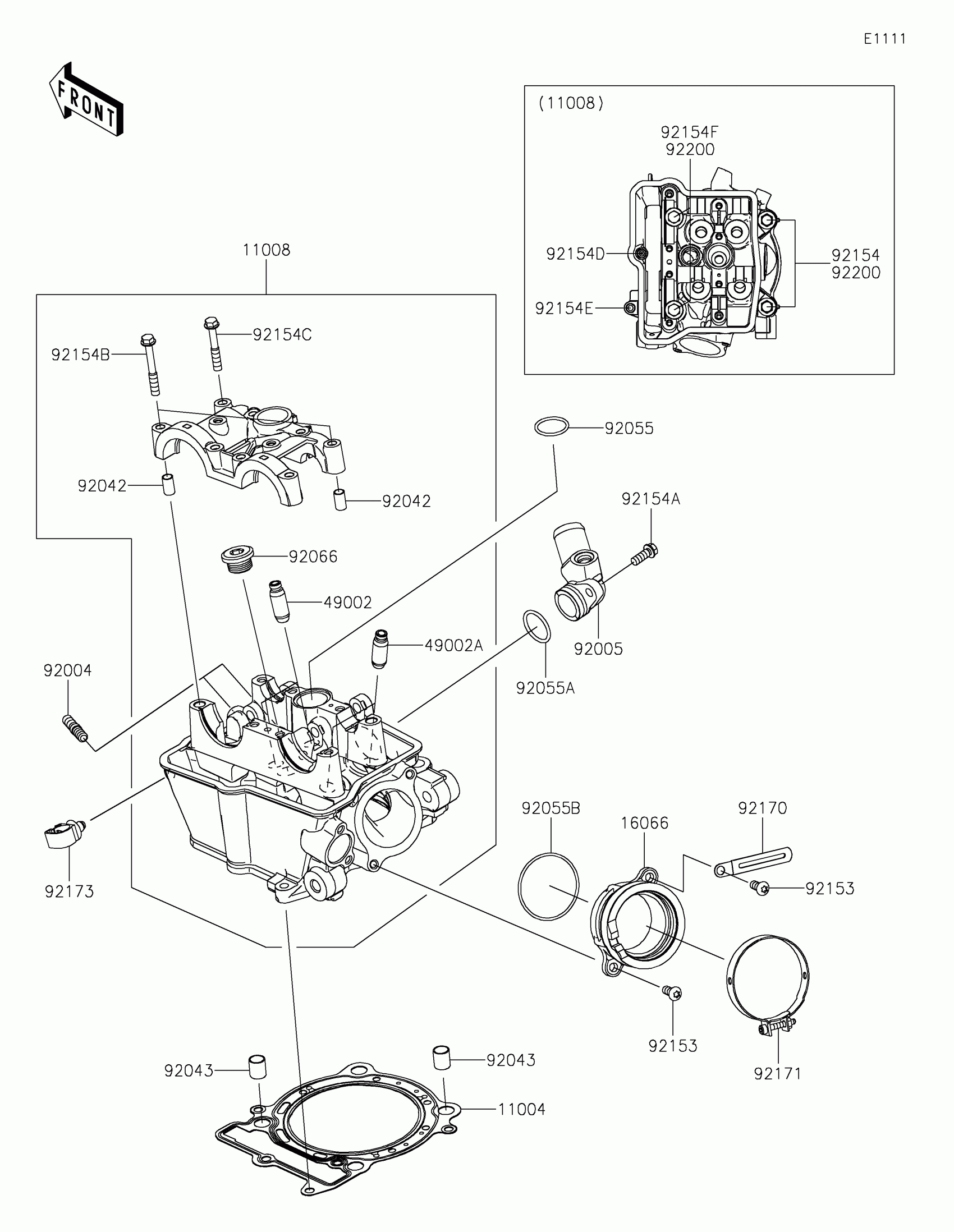

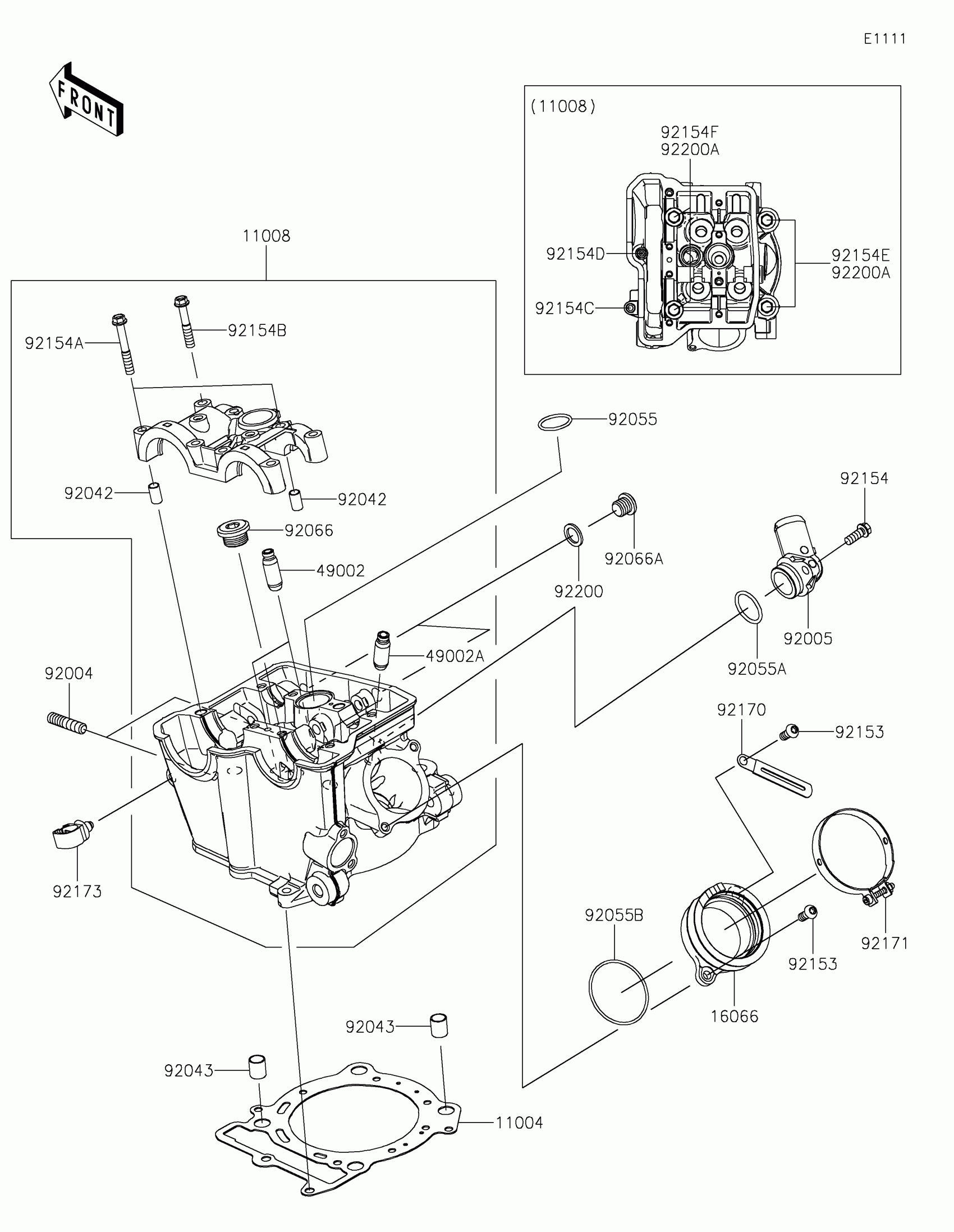

Kawasaki KX™450X Cylinder Head Diagram

GASKET-HEAD

HEAD-COMP-CYLINDER

HOLDER-THROTTLE BODY

GUIDE-VALVE

GUIDE-VALVE

STUD,8X22

FITTING

PIN,DOWEL,6.3X8X14

PIN,10.1X12X14

RING-O,23.5X2.0

RING-O,22.1X2.4

RING-O,47X1.9

PLUG,18X10

BOLT,TORX,6X14

BOLT,FLANGED,10X127

BOLT,FLANGED,6X16

BOLT,FLANGED,6X42

BOLT,FLANGED,6X35

BOLT,SOCKET,6X70

BOLT-SOCKET,6X25

BOLT,FLANGED,10X148

CLAMP

CLAMP

CLAMP,12MM DIA.

WASHER,10.2X18.4X1.8
