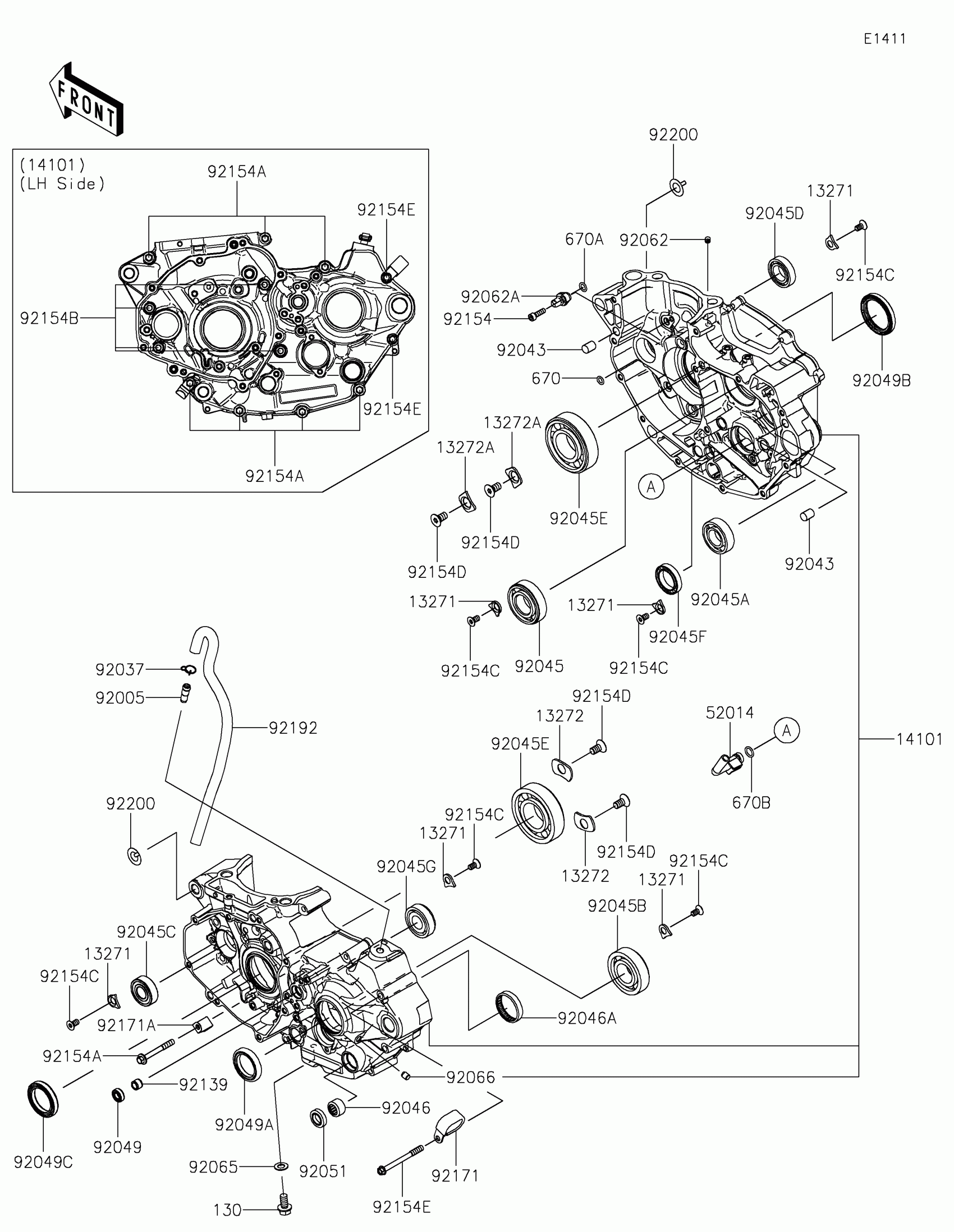

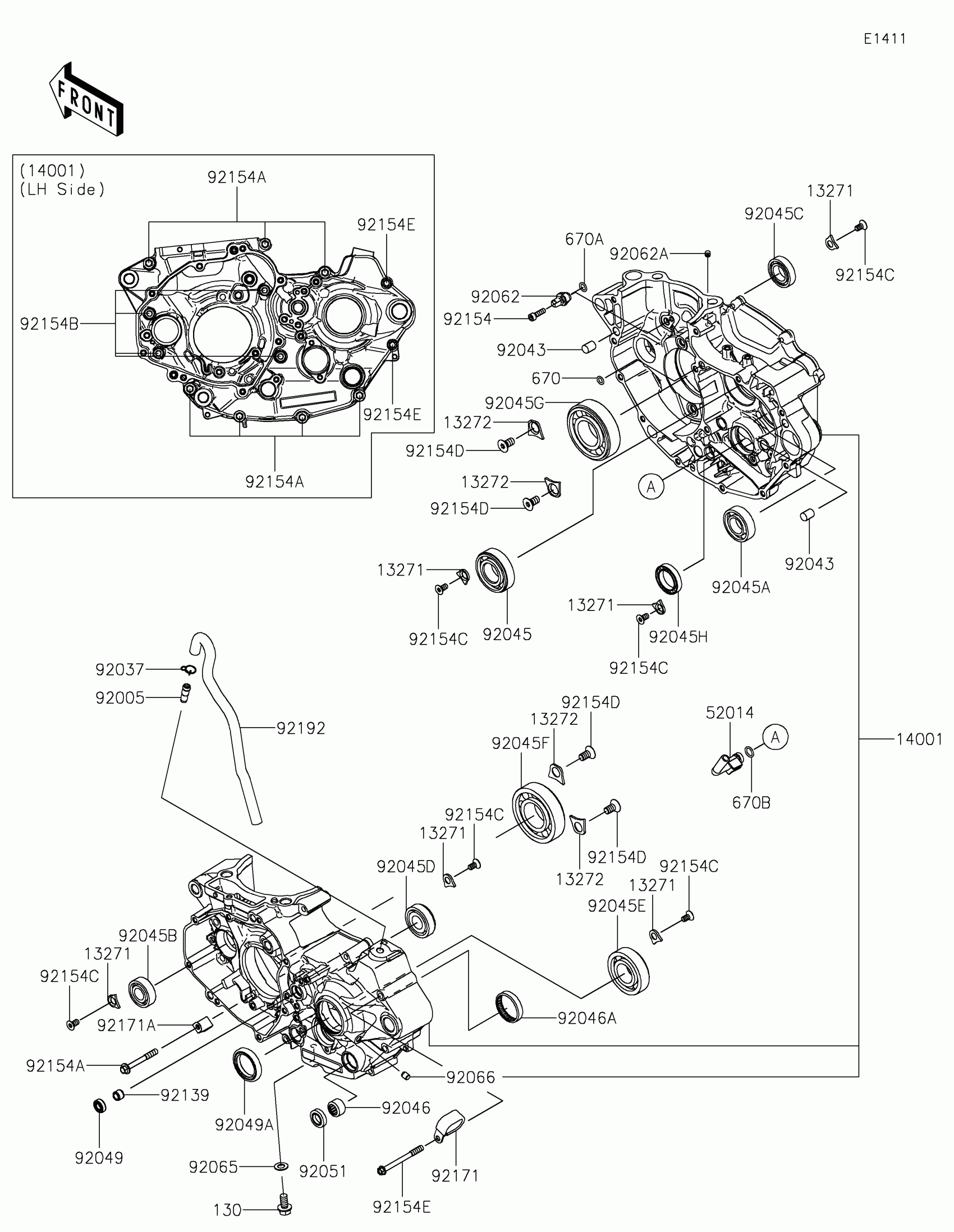

Kawasaki KX™450X Crankcase Diagram

#

Description
Price

13271

PLATE

13271-0345

$5.33

13272

PLATE

13272-4415

$30.38

13272A

PLATE

13272-7020

$13.59

14101

SET-CRANKCASE

14101-0025

$638.72

52014

ELBOW

52014-0011

$9.17

92005

FITTING

92005-1369

$7.56

92037

CLAMP,TUBE

92037-1972

$4.31

92043

PIN,10X14

92043-1506

$3.32

92045

BEARING-BALL,25X52X15

92045-0035

$28.88

92045A

BEARING-BALL,20X42X12

92045-0036

$21.08

92045B

BEARING-BALL

92045-0062

$39.48

92045C

BEARING-BALL,6202RSSH2C3

92045-0976

$35.10

92045D

BEARING-BALL,6904DUC3

92045-0979

$34.61

92045E

BEARING-BALL,32X72X19

92045-0994

$44.56

92045F

BEARING-BALL,6805JRZ

92045-1432

$32.41

92045G

BEARING-BALL,3TM-5X0391LUC3

92045-1457

$36.11

92046

BEARING-NEEDLE,HK1312

92046-1148

$18.74

92046A

BEARING-NEEDLE,7E-HKS33X38X8

92046-1221

$32.47

92049

SEAL-OIL

92049-0808

$8.98

92049A

SEAL-OIL

92049-0809

$12.40

92049B

SEAL-OIL,40X52X7

92049-0879

$13.03

92049C

SEAL-OIL,TC32457

92049-1577

$8.60

92051

SEAL-OIL,TB13225.5

92051-005

$7.74

92062

NOZZLE

92062-0049

$4.85

92062A

NOZZLE

92062-0583

$21.44

92065

GASKET,8.5X16X1

92065-023

$3.88

92066

PLUG,OIL LINE,7.2X8

92066-1012

$6.51

92139

BUSHING

92139-0907

$9.40

92154

BOLT,SOCKET,5X18

92154-0038

$1.74

92154A

BOLT,FLANGED,6X50

92154-0526

$3.35

92154B

BOLT,SOCKET,7X60

92154-0527

$11.16

92154C

BOLT,TORX

92154-1621

$3.90

92154D

BOLT,TORX,8X16

92154-1733

$3.63

92154E

BOLT,FLANGED,6X65

92154-2980

$1.42

92171

CLAMP

92171-0594

$7.68

92171A

CLAMP

92171-0761

$8.68

92192

TUBE,BREATHER

92192-1886

$9.15

92200

WASHER

92200-2490

$6.28

130

BOLT-FLANGED,8X16

130AA0816

$0.85

670

O RING,7MM

670D1507

$1.70

670A

O RING,8MM

670D1508

$4.31

670B

O RING,10MM

670D1510

$4.69
