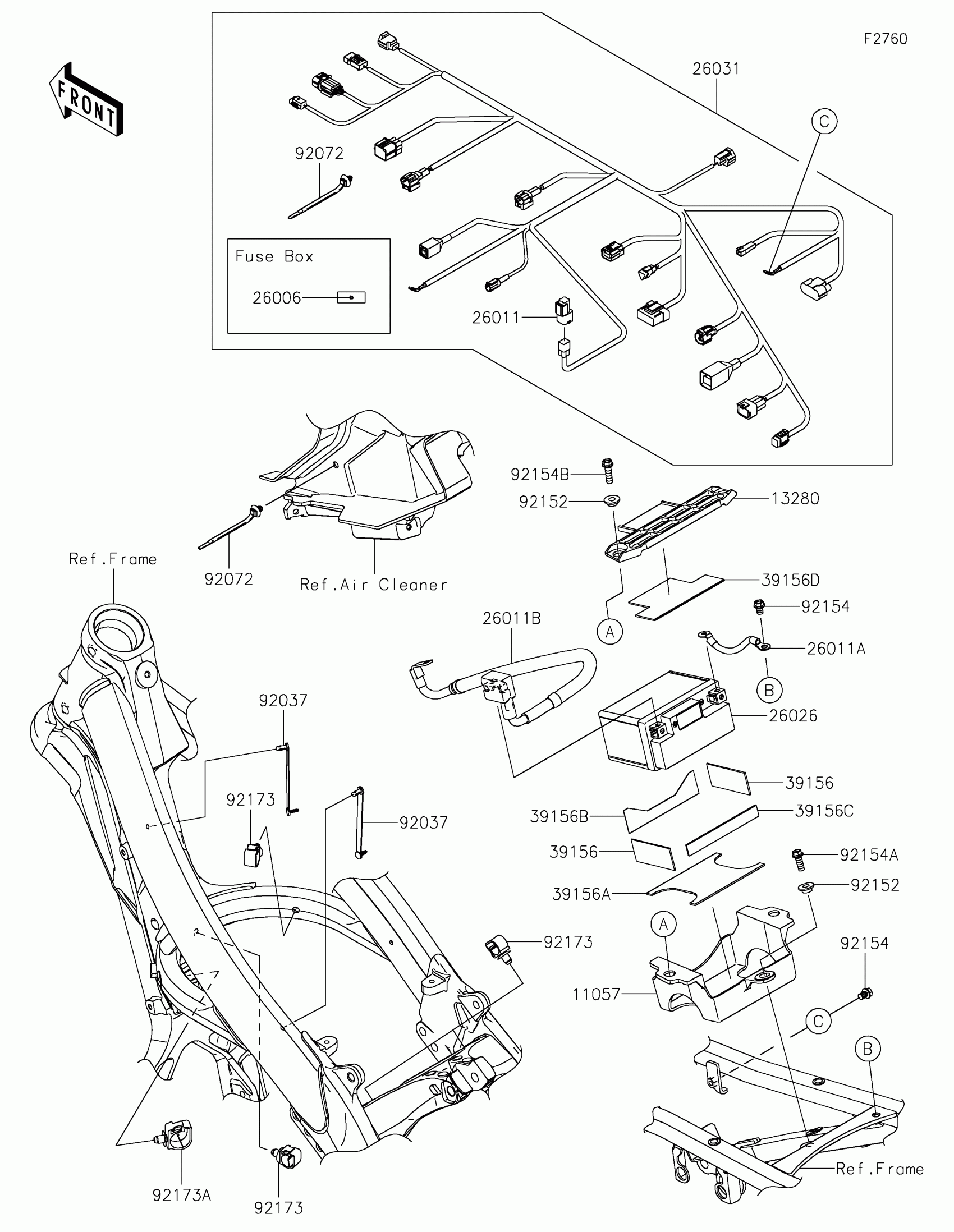

Kawasaki KX™450X Chassis Electrical Equipment(NRFNN/NSFNN Diagram

Description

Price

11057

BRACKET,BATTERY CASE

11057-1550

$12.32

13280

HOLDER,BATTERY COVER

13280-0912

$9.40

26006

FUSE,MINI BLADE,5A,TAN

26006-1077

$4.87

26011

WIRE-LEAD,NATURAL

26011-0273

$15.62

26011A

WIRE-LEAD,BATTERY(-)

26011-0997

$29.34

26011B

WIRE-LEAD,BATTERY(+)

26011-2429

$40.66

26026

BATTERY-LI-ION-STARTER,HJ01

26026-0003

Unavailable

26031

HARNESS,MAIN

26031-4041

$385.08

39156

PAD,25X58X1.5

39156-2419

$1.27

39156A

PAD,100X72X1.5

39156-2420

$5.54

39156B

PAD,FR

39156-2640

$7.88

39156C

PAD,RR

39156-2641

$6.81

39156D

PAD,TOP

39156-2642

$5.25

92037

CLAMP,SPEED,L=80.5

92037-1903

$7.84

92072

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92152

COLLAR,6.5X10X5.6

92152-0445

$4.92

92154

BOLT,FLANGED,6X8

92154-2962

$0.64

92154A

BOLT,FLANGED,6X16

92154-2965

$0.90

92154B

BOLT,FLANGED,6X20

92154-2966

$0.64

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92173A

CLAMP

92173-0861

$3.02
